Front Passenger's Weight Sensor Replacement
Front Passenger's Weight Sensor Replacement4-door
Removal
NOTE: Removal of the front passenger's weight sensors must be performed according to the precautions/procedures described at the beginning of the SRS section.
1. Disconnect the negative cable from the battery, and wait at least 3 minutes before beginning work.
2. Remove the front passenger's seat assembly section.
3. Remove the cushion cover/pad from the seat cushion frame.

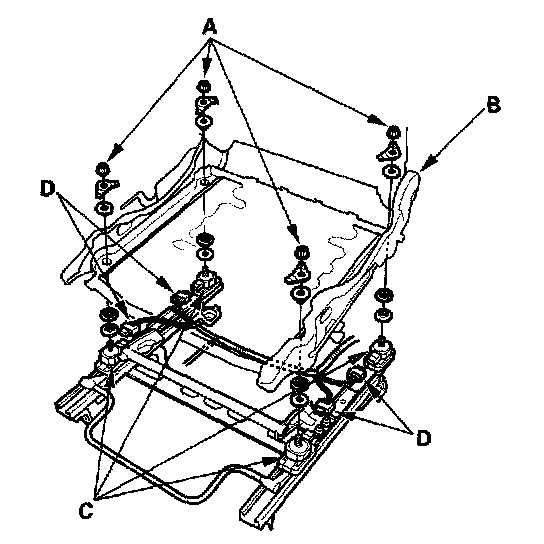

4. Using a Torx E18 socket, remove the Torx nuts (A) attaching the seat track (B) to the weight sensors (C).
5. Disconnect the sensor connectors (D) from the seat weight sensor, then remove the front passenger's weight sensors.
Installation
NOTE: Be sure to install the harness wires so they are not pinched or interfering with other parts.
1. Install the new front passenger's weight sensors under the seat track.

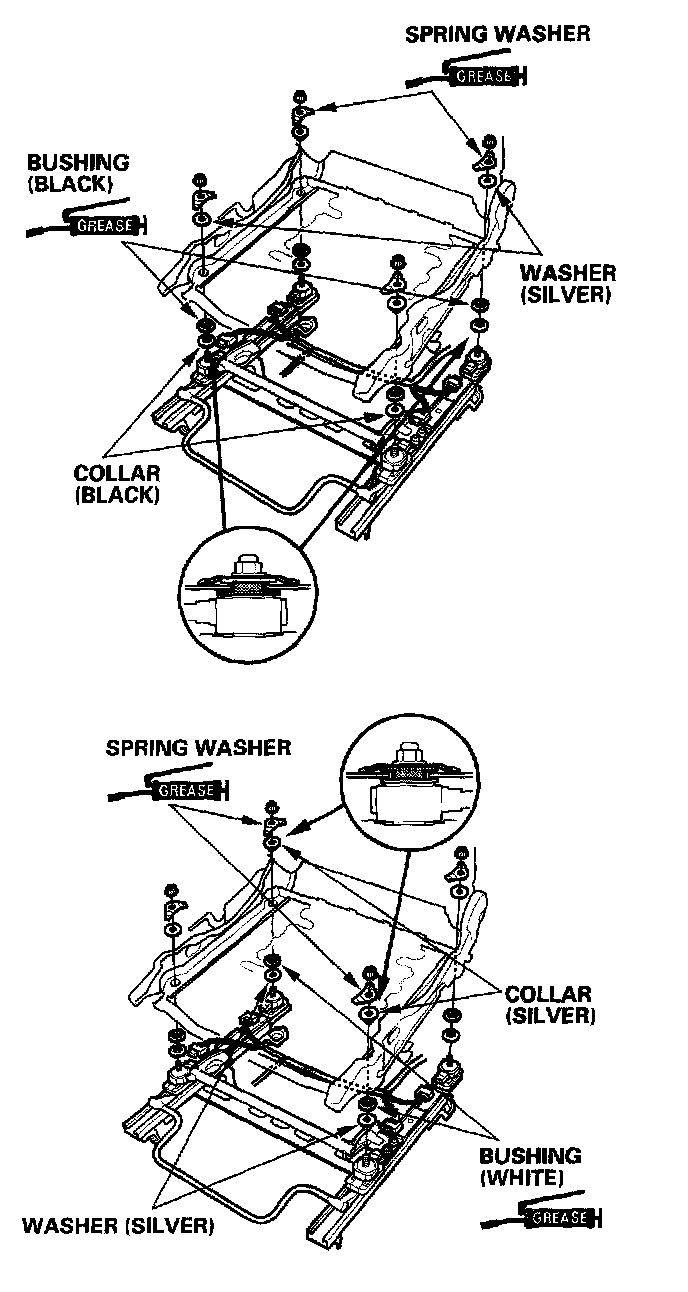

2. Apply multipurpose grease to the spring washer and bushing.

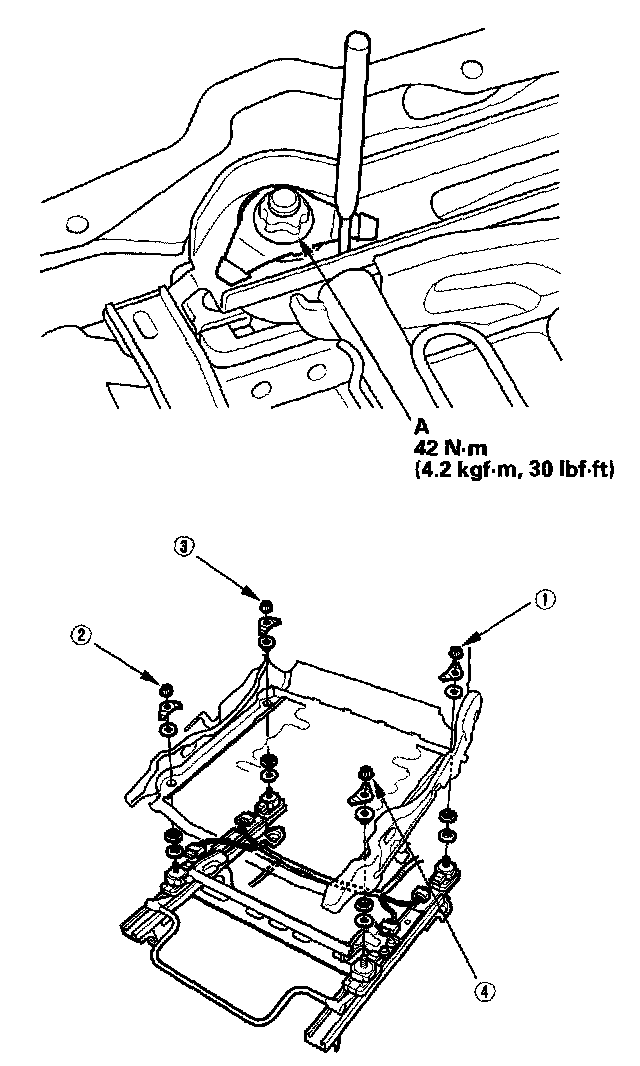

3. Insert a 3.5 mm center punch into the hole in the cushion frame to position the spring washers, when tightening the Torx nuts (A). Begin with the �and tighten them in crisscross pattern in two or more steps.
4. Using the pin driver to position the spring washers, torque the Torx nuts in the sequence shown in two or more steps.

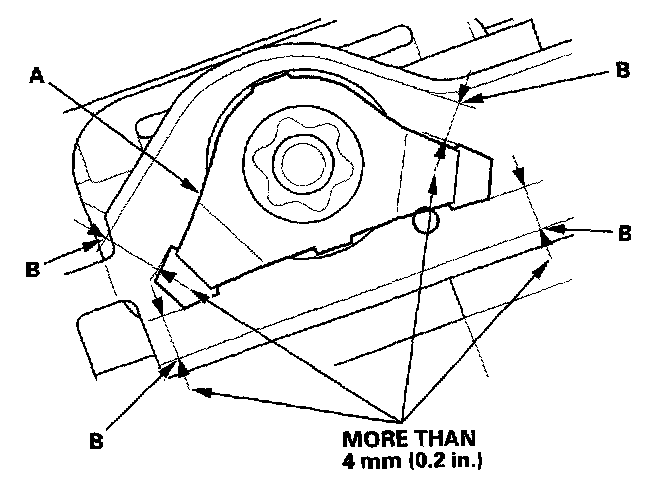

5. Make sure the gap between the spring washer (A) and the seat track (B) is more than 4 mm, as shown.
6. Reassemble the front passenger's seat cushion cover/pad.
7. Reinstall the front passenger's seat.
8. Reconnect the negative cable to the battery.
9. Calibrate the ODS unit.
10. After installing the front passenger's weight sensors, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come for about 6 seconds and then go off,
2-door
Removal
NOTE: Removal of the front passenger's weight sensors must be performed according to the precautions/procedures described at the beginning of the SRS section.
1. Disconnect the negative cable from the battery, and wait at least 3 minutes before beginning work.
2. Remove the front passenger's seat assembly.
3. Remove the cushion cover/pad from the seat cushion frame.

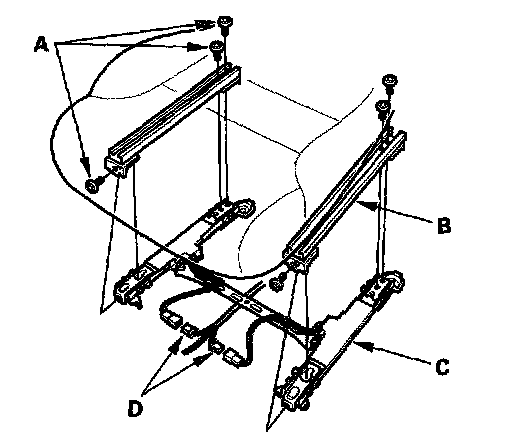

4. Using a Torx T27 bit, remove the tamper-resistant Torx bolts (A) that attach the seat track (B) to the weight sensors (C).
5. Disconnect the sensor connectors (D) from the ODS unit harness, then remove the front passenger's weight sensors.
Installation
NOTE:
- Be sure to install the harness wires so they are not pinched or interfere with other parts.

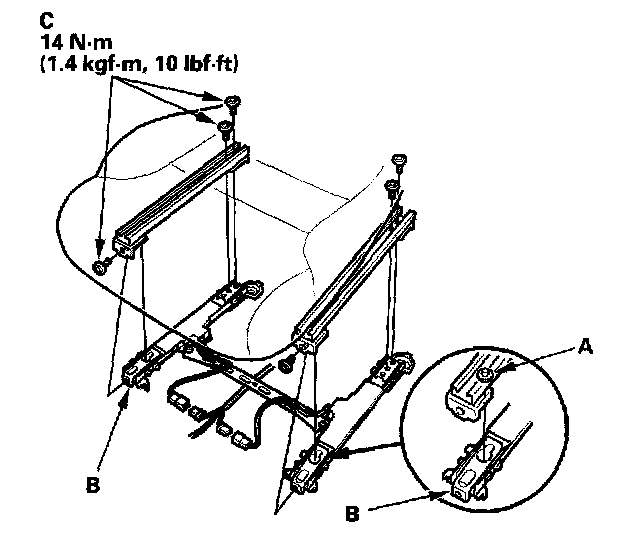

- Make sure both of the hooks (A) on the seat track are properly secured to the front bracket (B). If the hooks are not properly secured, the seat weight sensors will not perform properly.
1. Install the new front passenger's weight sensors with tamper-resistant Torx bolts (C) under the seat track.
2. Reassemble the front passenger's seat cushion cover/pad.
3. Reinstall the front passenger's seat.
4. Reconnect the negative cable to the battery.
5. Calibrate the ODS unit.
6. After installing the front passenger's weight sensors, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come ON for about 6 seconds and then go off.
