Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Evaporator Temperature Sensor / Switch >> Locations >> Component Locations

Component Locations

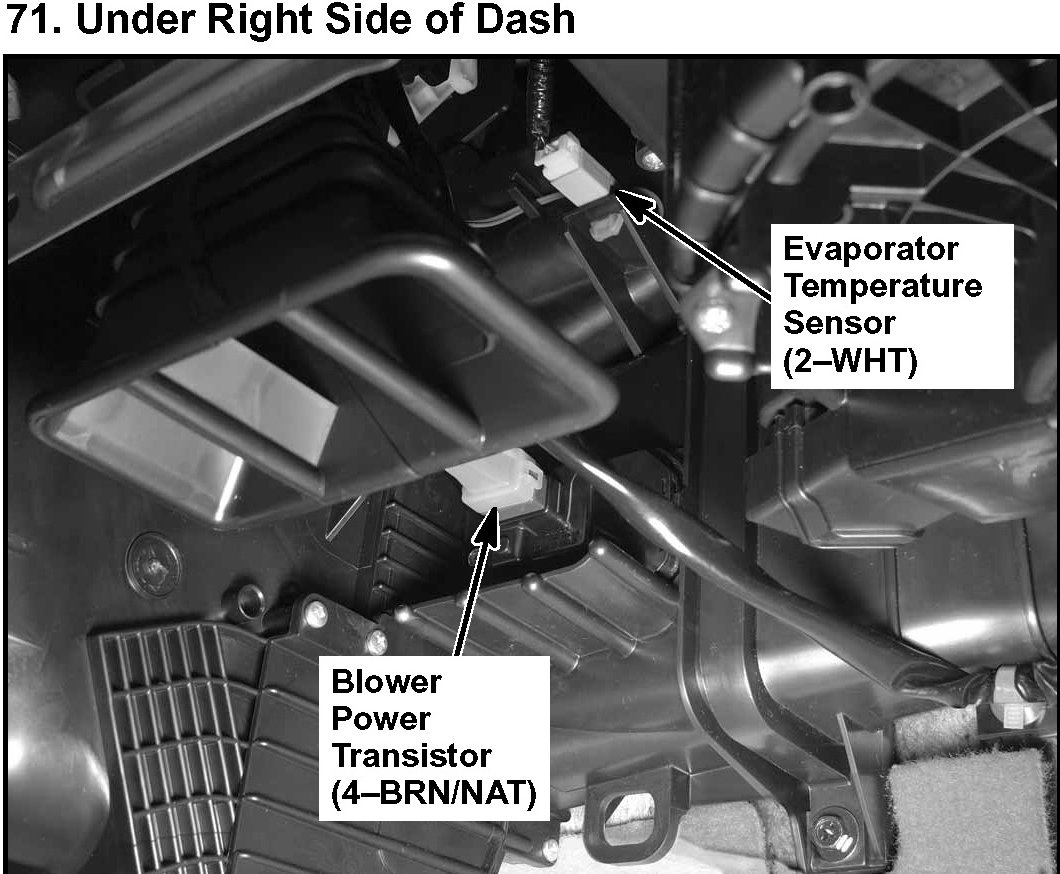

71. Under Right Side of Dash:

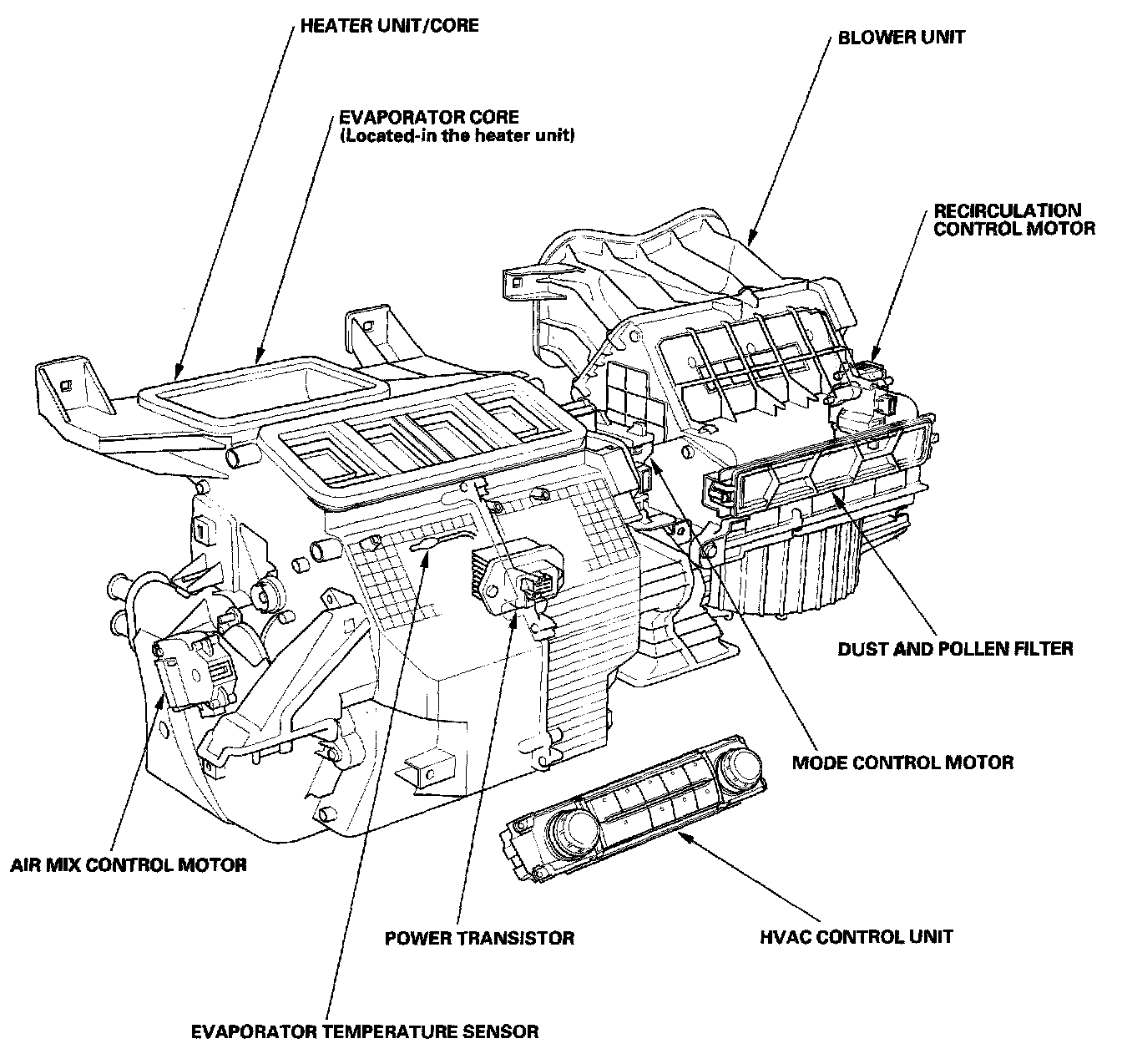

Heating/Air Conditioning - Component Location Index - Part 3:
