Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Locations

Power Mirror Switch: Locations

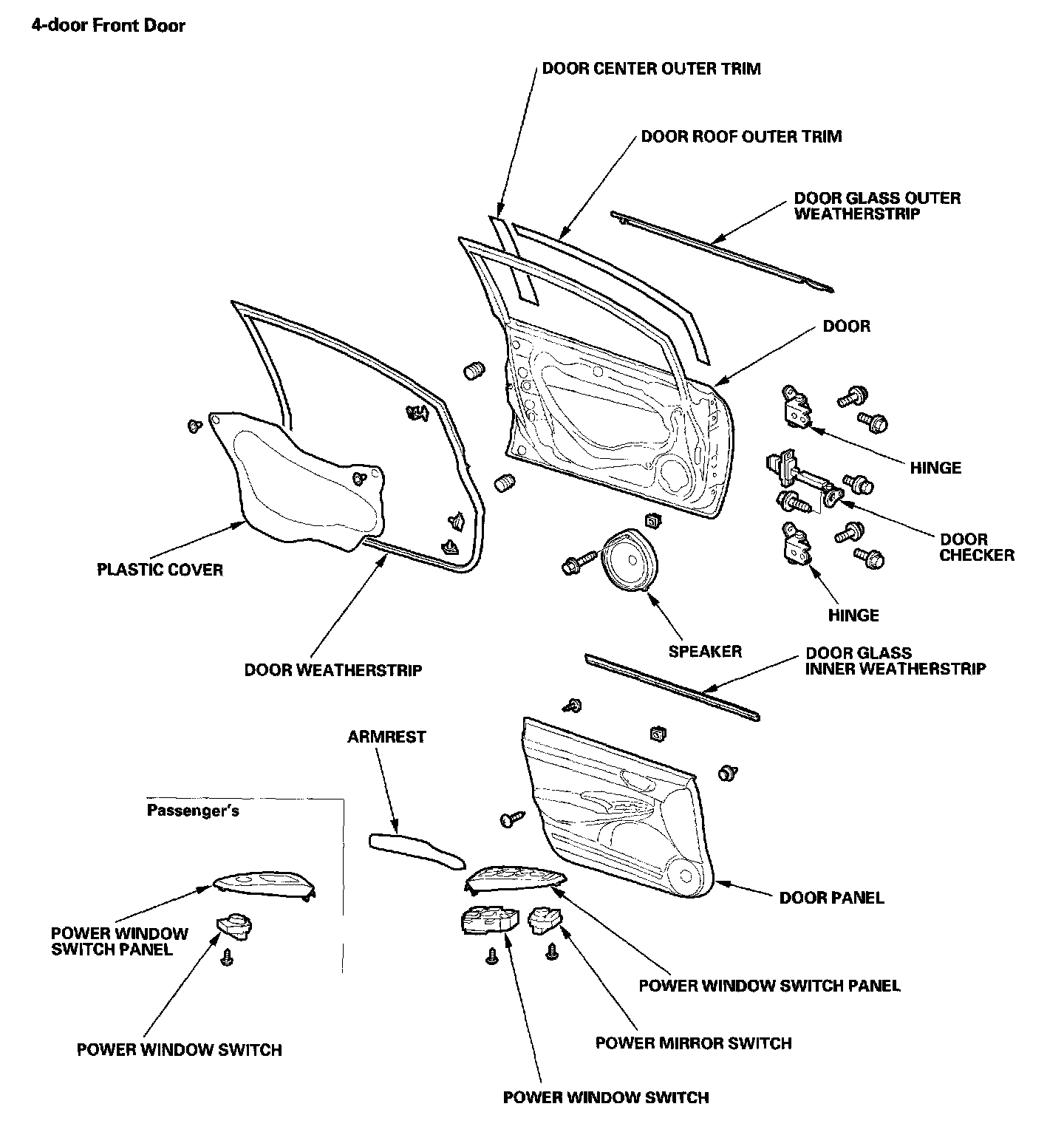

Doors - Component Location Index:

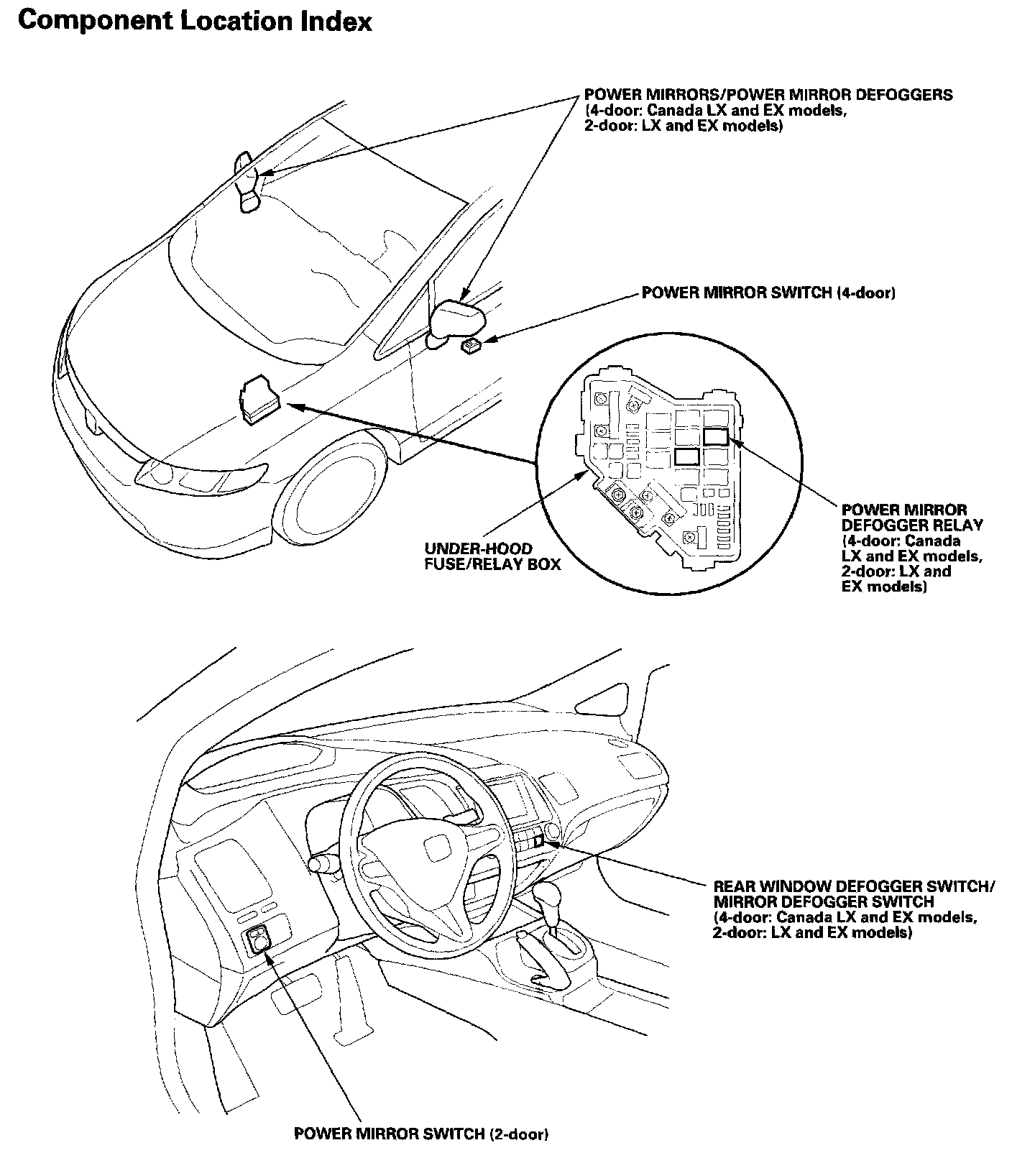

Power Mirrors - Component Location Index:

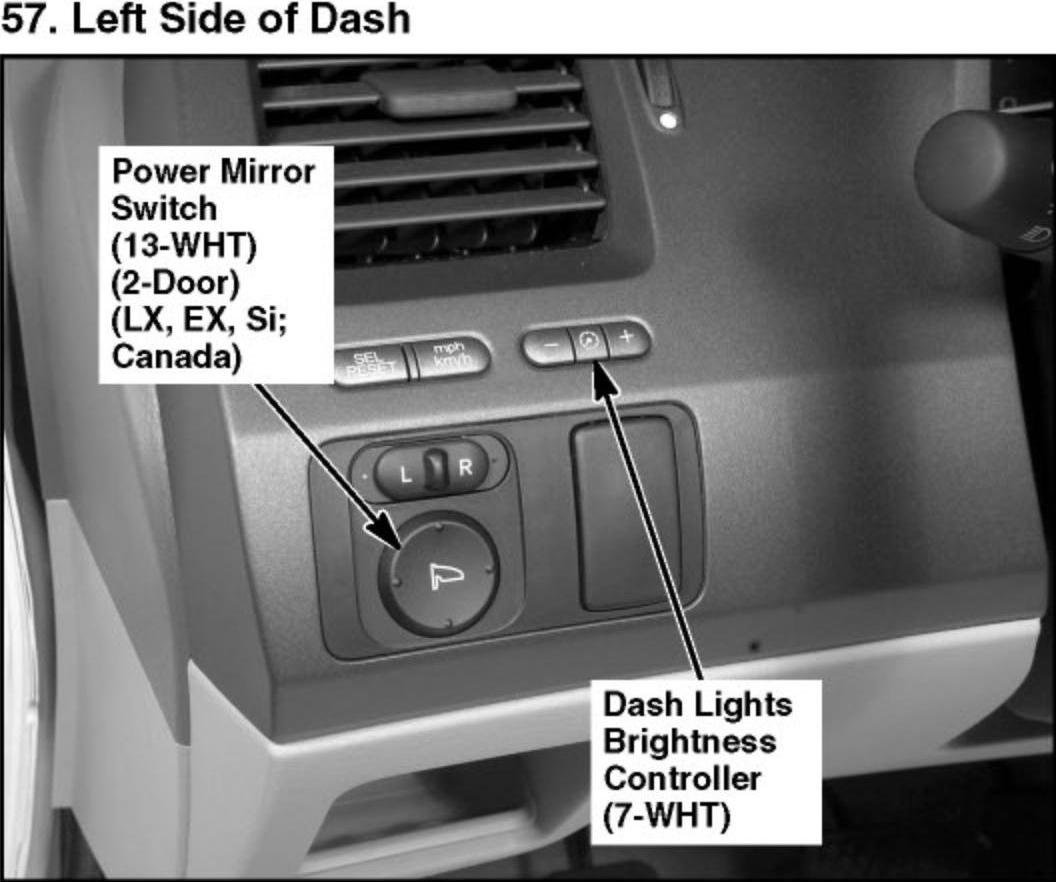

57. Left Side of Dash:



127. Driver's Door (4-door):
