Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Safing Sensor >> Locations

Safing Sensor: Locations

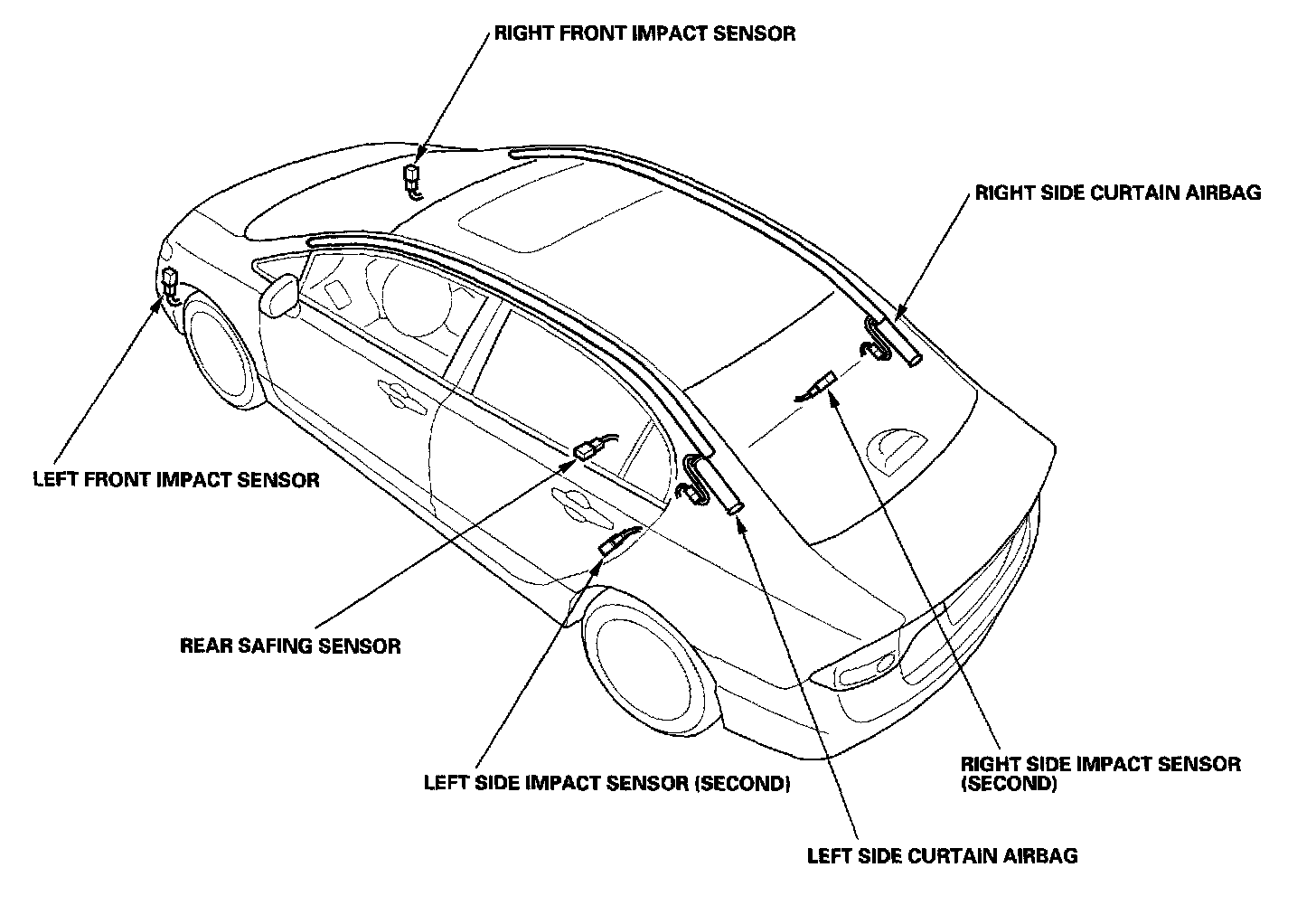

SRS - Component Location Index:

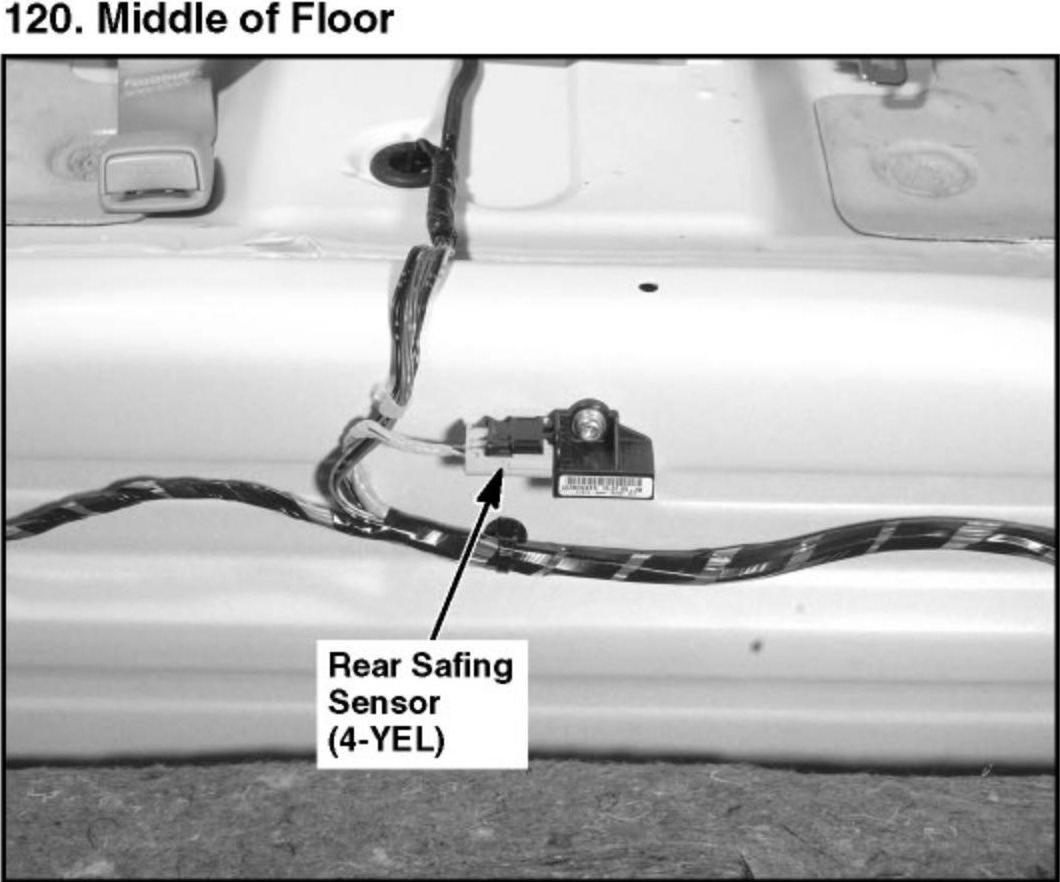

120. Middle of Floor:
