Power Window Relay: Diagrams

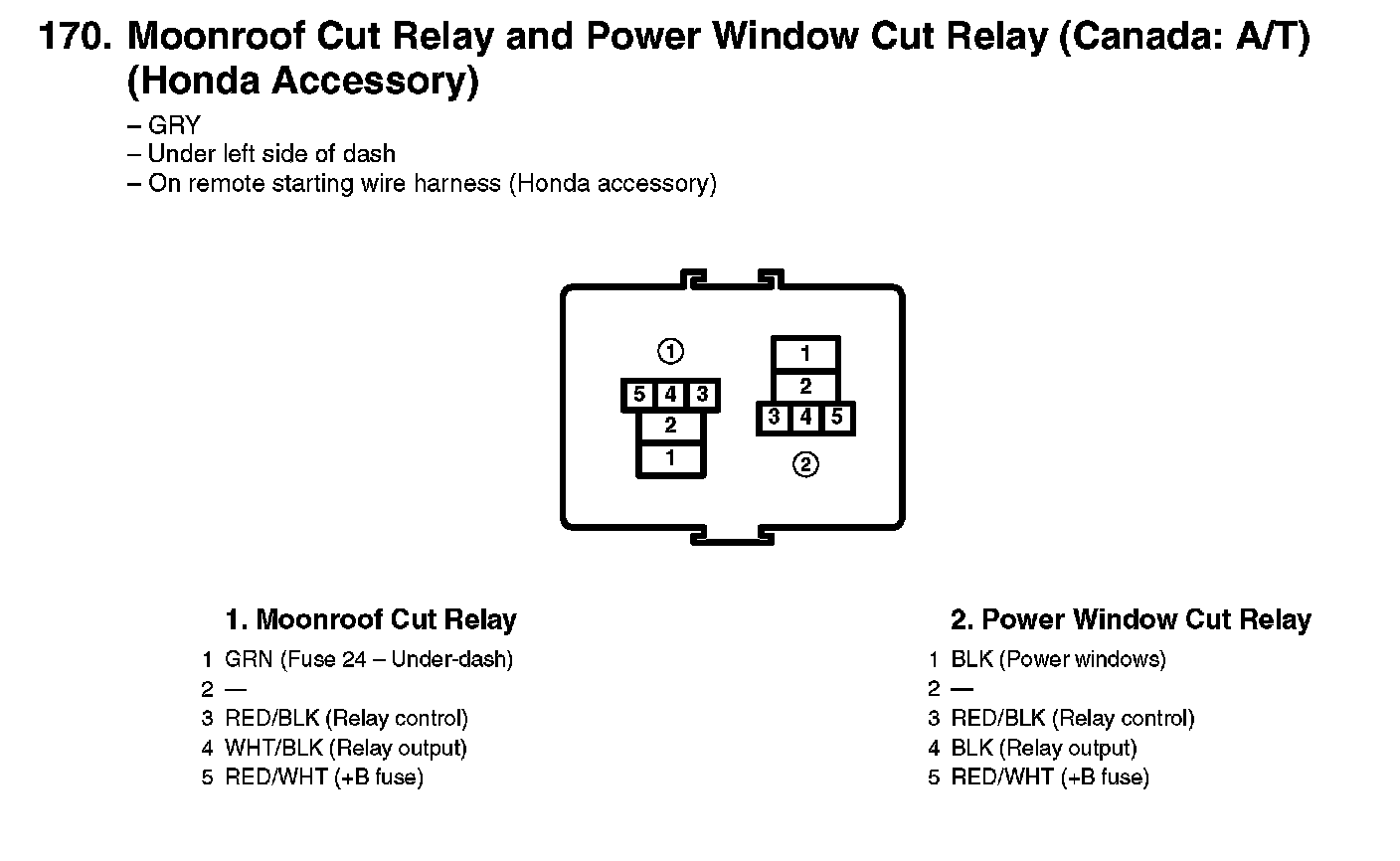

170. Moonroof Cut Relay And Power Window Cut Relay (Canada: A/T) (Honda Accessory):
