Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Interior Lighting Module >> Locations

Interior Lighting Module: Locations

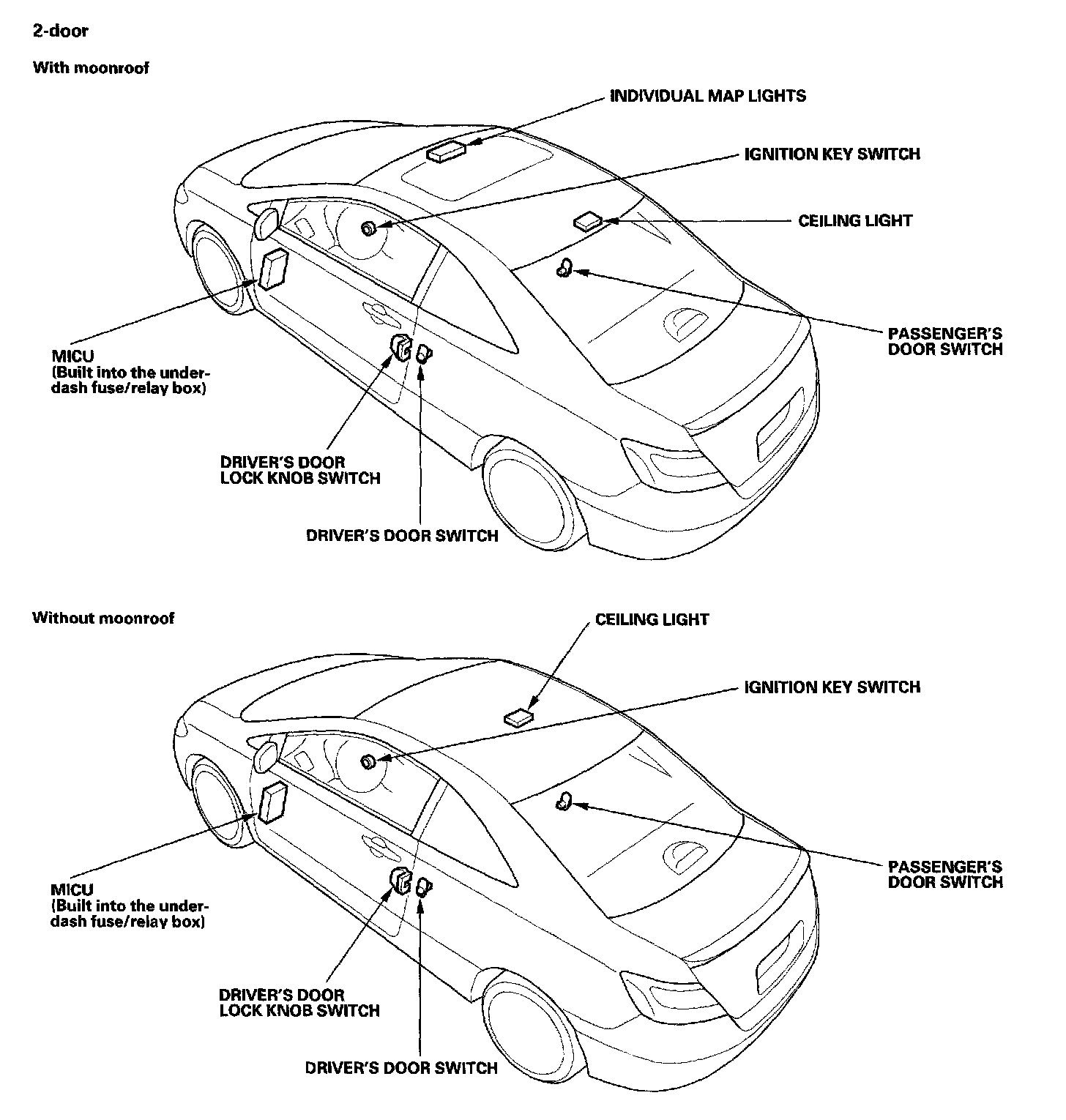

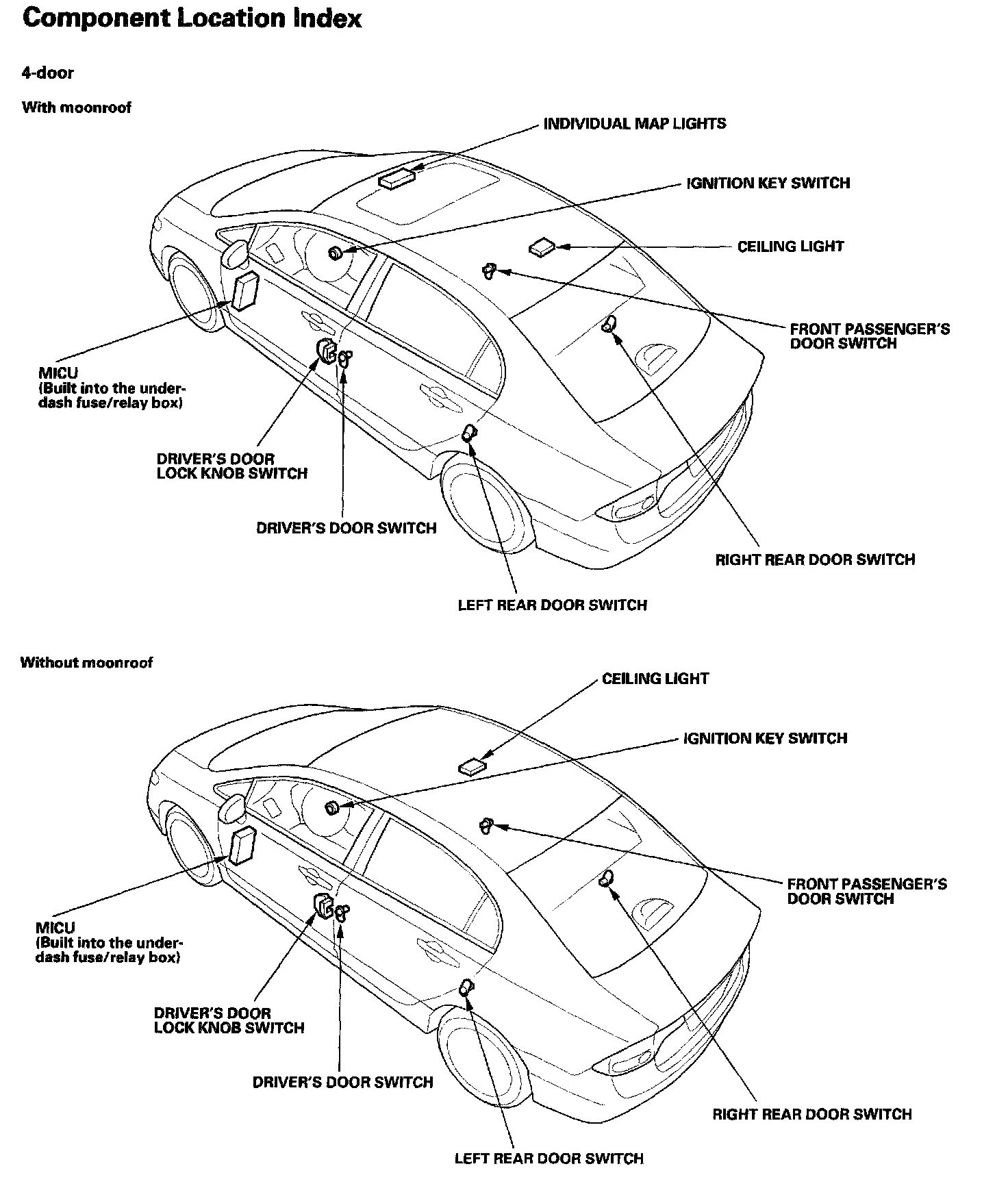

Entry Lights Control System - Component Location Index:



Entry Lights Control System - Component Location Index:
