Antenna Control Module: Service and Repair

Antenna Module Replacement

1. Remove the right side C-pillar trim.




2. 2-door model: Remove the terminal cover (A). 2-door model

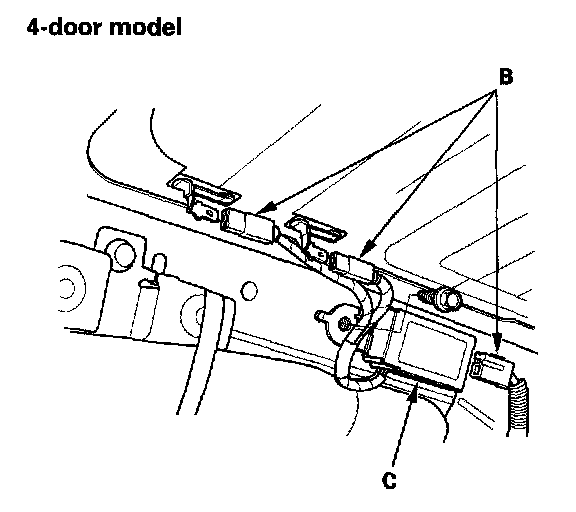

3. Disconnect the connectors (B) from the antenna module (C).
4. Remove the bolt and antenna module.
5. Install the unit in the reverse order of removal.
