Resonator: Service and Repair

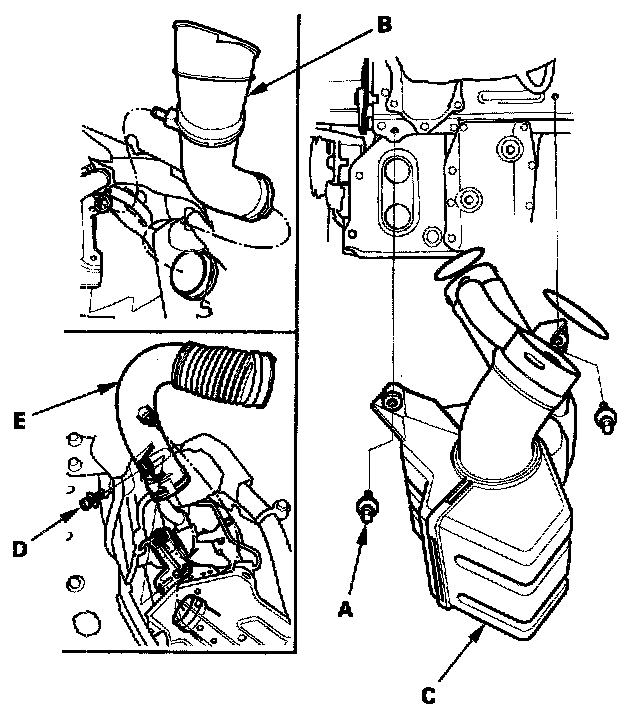

Resonator Removal/Installation

1. Remove the front bumper.




2. Remove the bolts (A), and pipe (B).
3. Remove the resonator (C).
4. Remove the battery.
5. Remove the bolt (D), and duct (E).
6. Install the parts in the reverse order of removal.
7. Reinstall the battery, and do these items:
- Enter the anti-theft code for the audio system.
- Reset the clock.
