Pinout Values and Diagnostic Parameters

ECM Inputs And Outputs At Connector A (44P) Part 1:

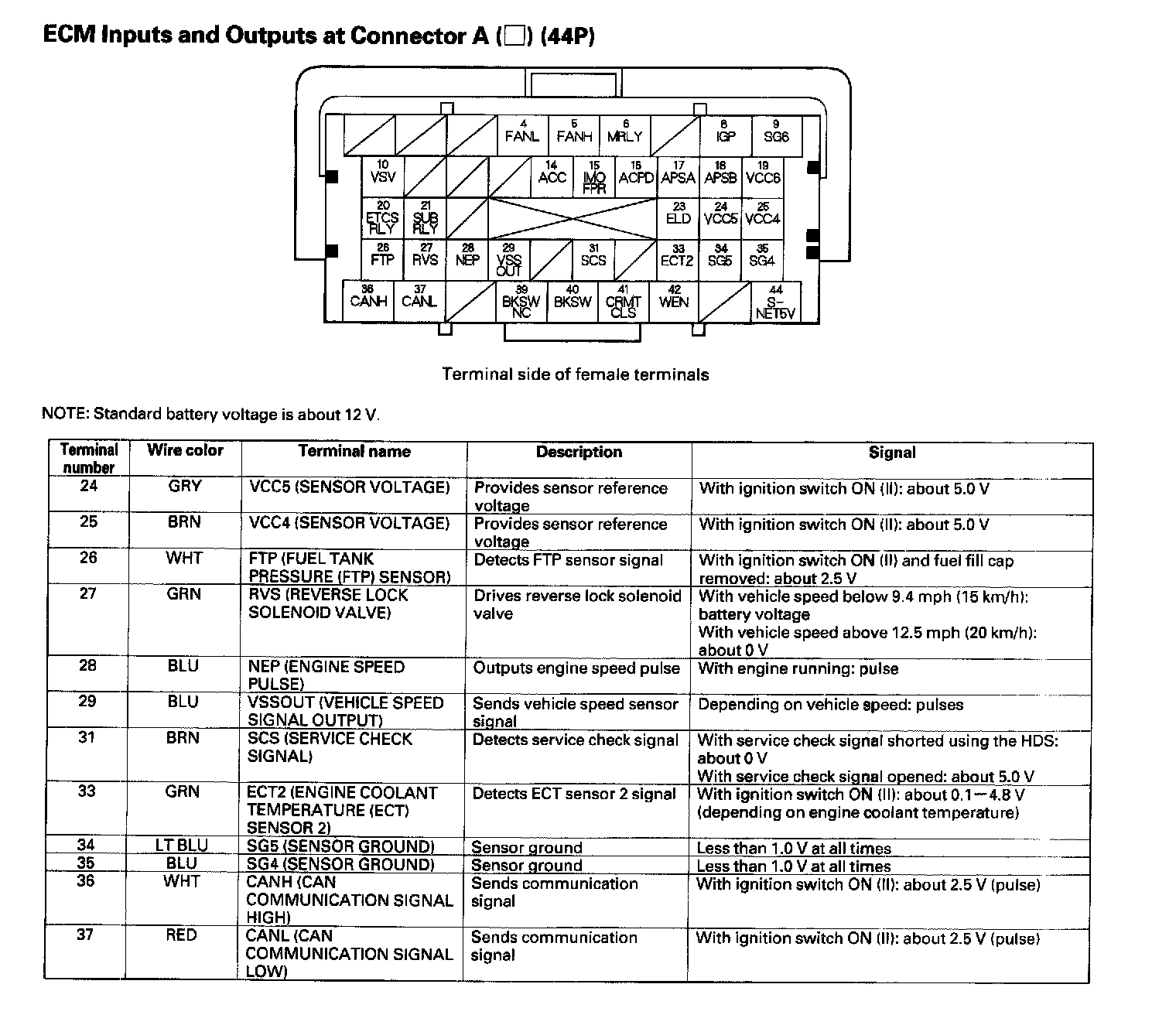

ECM Inputs And Outputs At Connector A (44P) Part 2:

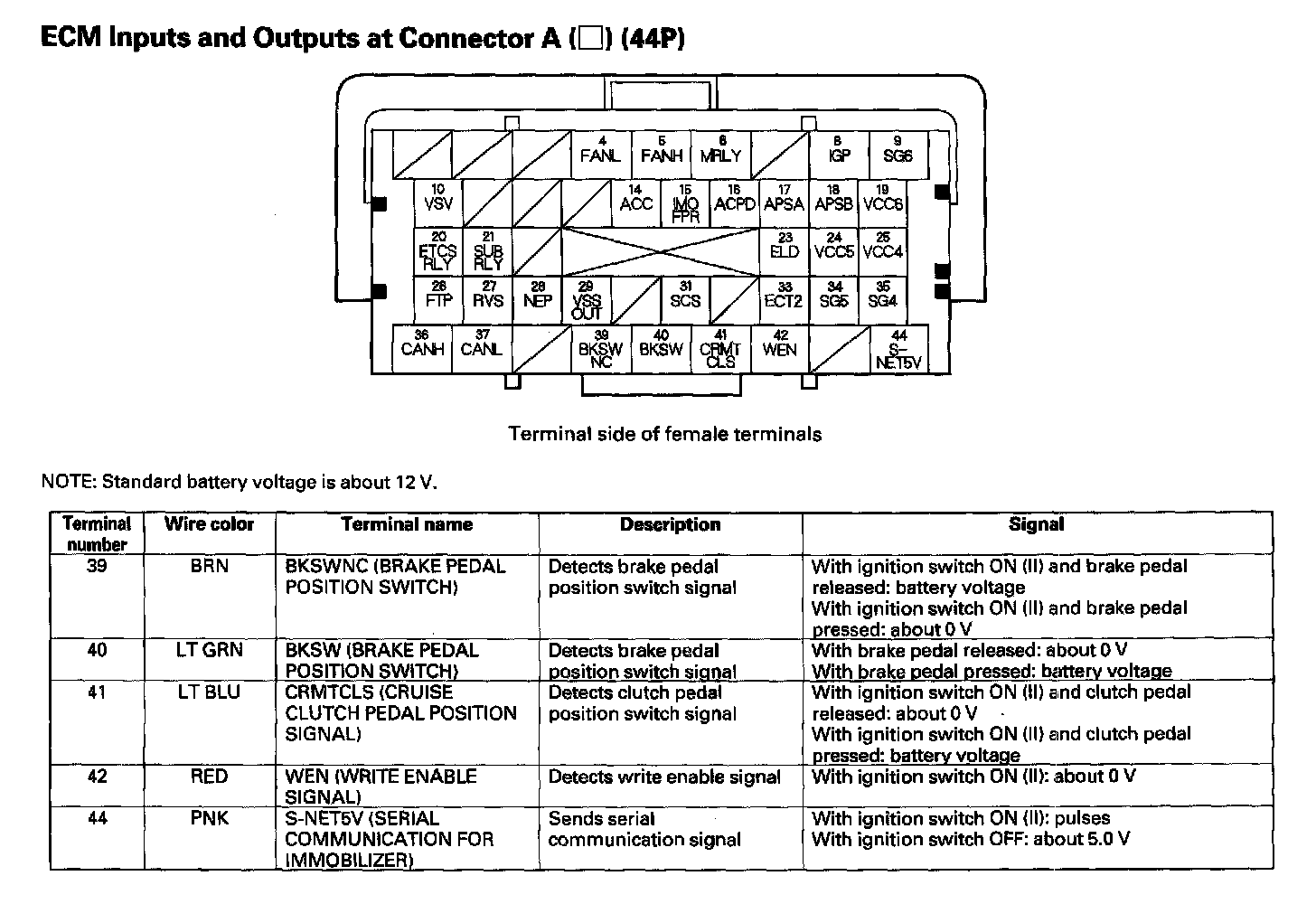

ECM Inputs And Outputs At Connector A (44P) Part 3:

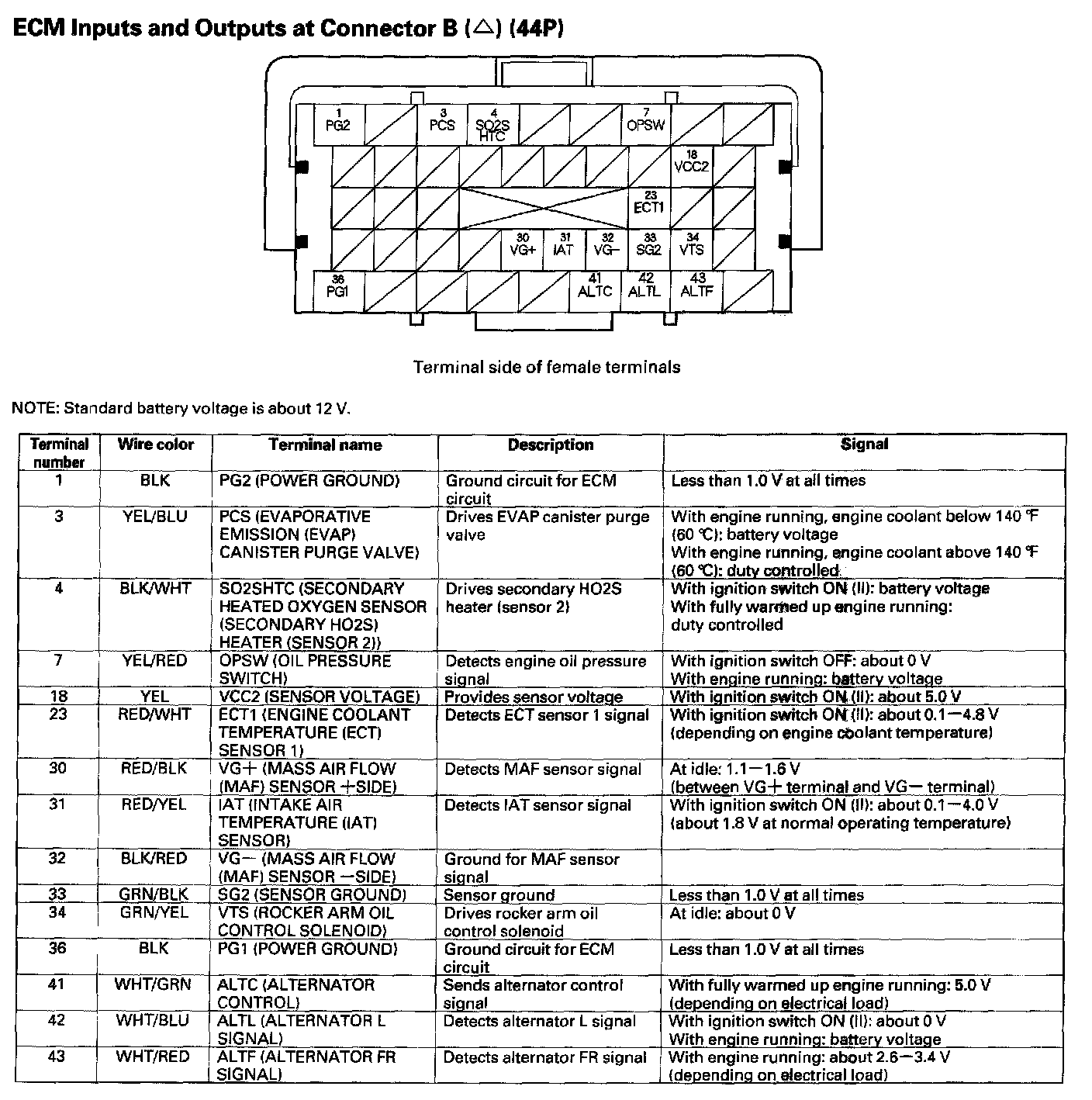

ECM Inputs And Outputs At Connector B (44P):

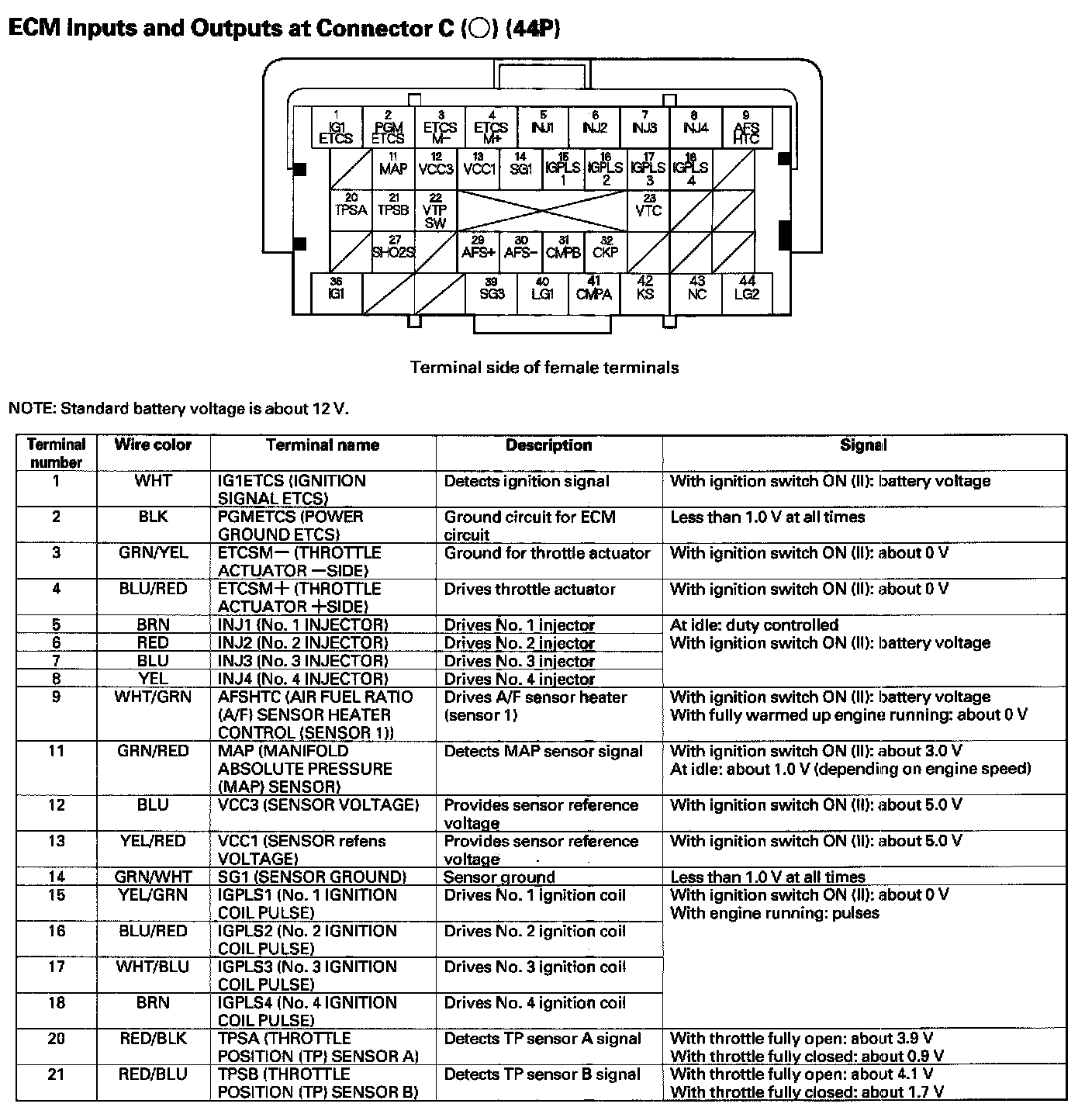

ECM Inputs And Outputs At Connector C (44P) Part 1:

ECM Inputs And Outputs At Connector C (44P) Part 2:
