Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations

Information Bus: Locations

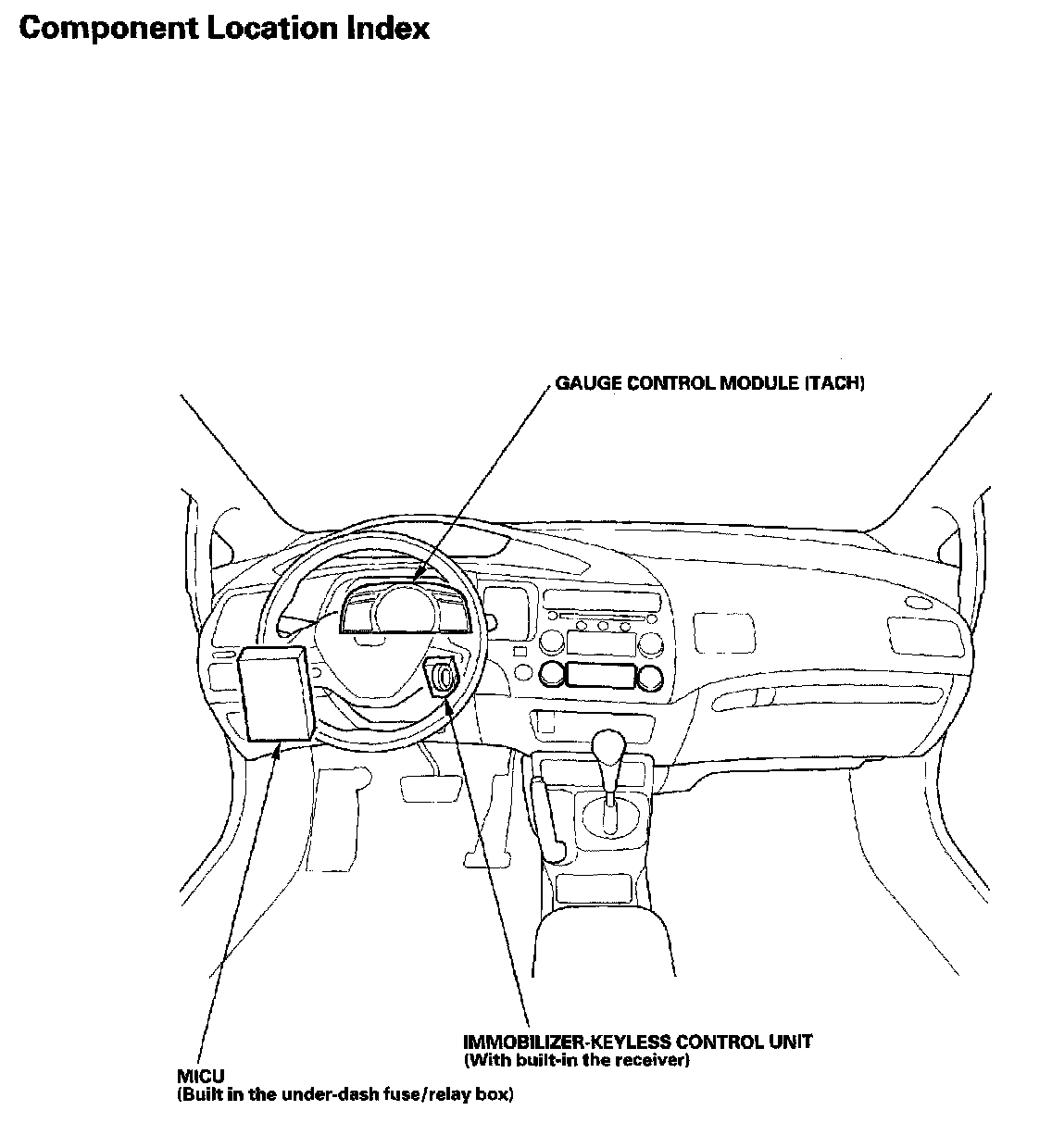

Multiplex Integrated Control System - Component Location Index:
