Taillight Replacement

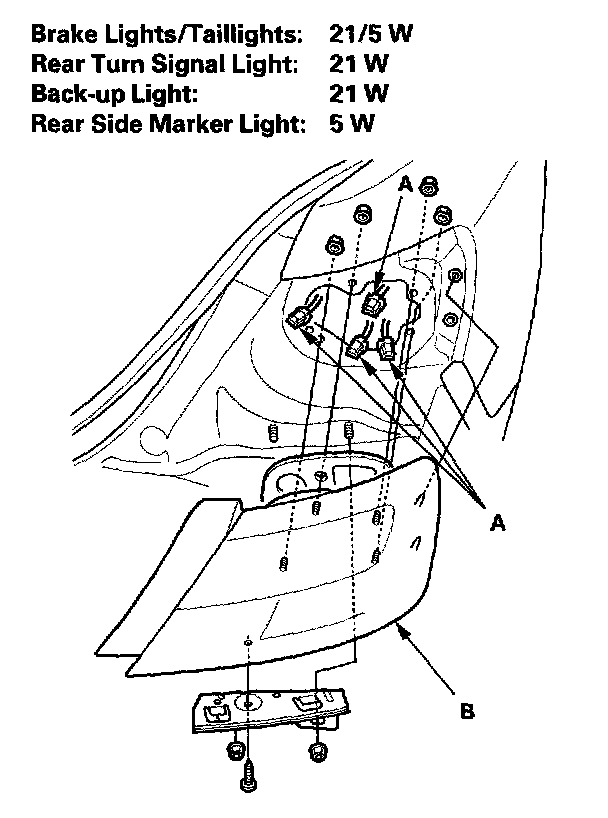

Taillight Replacement4-door
1. Remove the rear bumper.
2. Disconnect the connectors (A) from the taillights (B).
3. Turn the bulb sockets 45 degrees counterclockwise to remove the bulbs.
4. Remove the nuts and screws, then remove the taillight.
5. Install the light in the reverse order of removal.

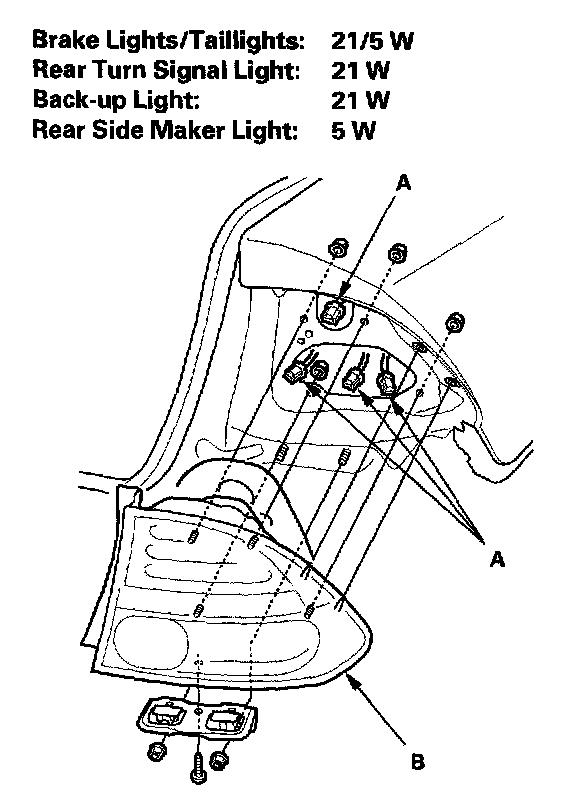

2-door
1. Remove the rear bumper.
2. Disconnect the connectors (A) from the taillights (B).
3. Turn the bulb sockets 45 degrees counterclockwise to re move the bulbs.
4. Remove the nuts and screws, then remove the taillight.
5. Install the light in the reverse order of removal.
