Headlamp Bulb: Service and Repair

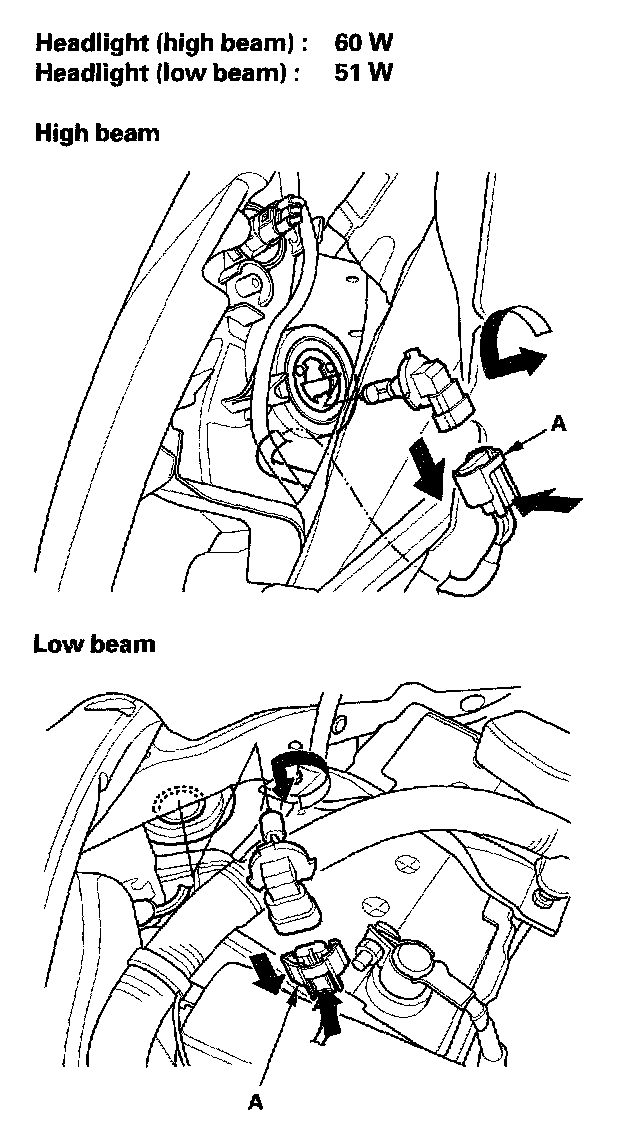

Bulb Replacement

Headlight

1. For low beam: Remove the inner fender.
- 2-door
- 4-door




2. Disconnect the 2P connector (A) from the headlight.
3. Turn the bulb socket 45 "counterclockwise to remove the bulb.
4. Install a new bulb in the reverse order of removal.
