Tachometer: Service and Repair

Replacement

Tachometer

1. Remove the subdisplay visor assembly.

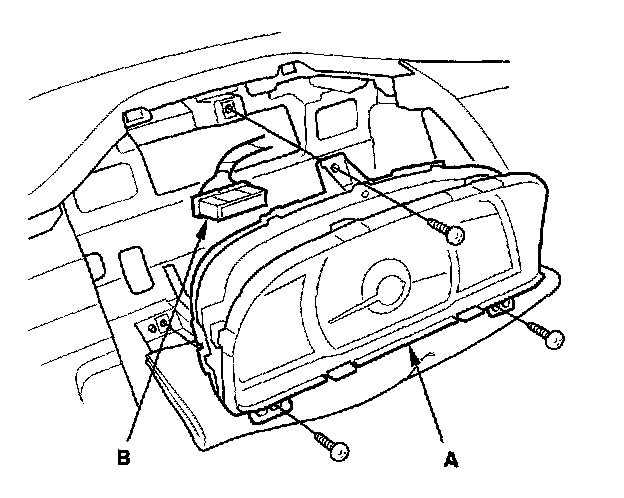

2. Remove the three screws from the gauge control module (tach) (A).
3. Disconnect the 36P connector (B) from the gauge control module (tach).
4. Install the gauge in the reverse order of removal.
