Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

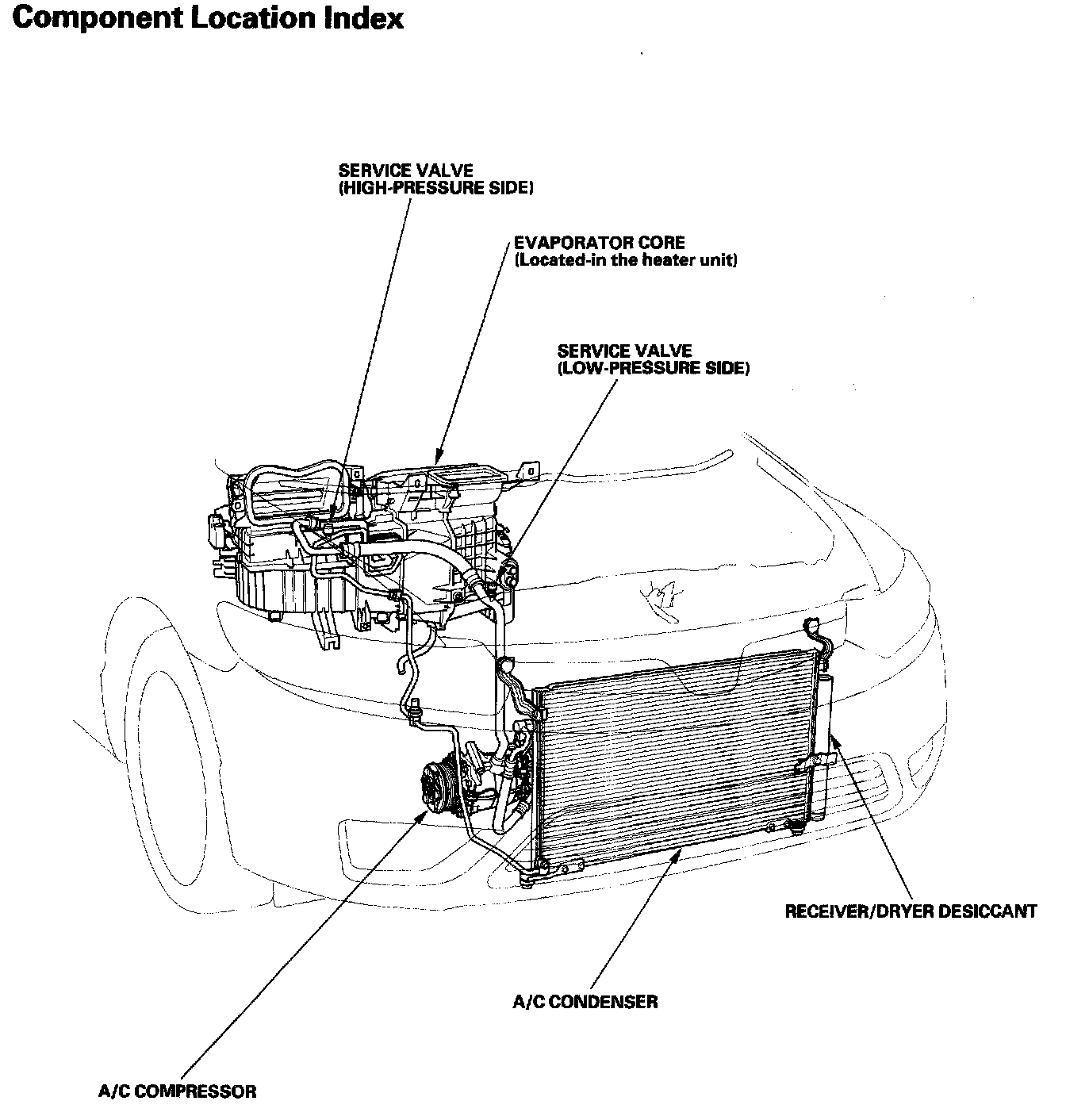

Heating/Air Conditioning - Component Location Index Part 1:



Heating/Air Conditioning - Component Location Index - part 2:



Heating/Air Conditioning - Component Location Index - Part 3:
