Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Knock Sensor Subharness (M/T)
Knock Sensor Subharness (M/T)

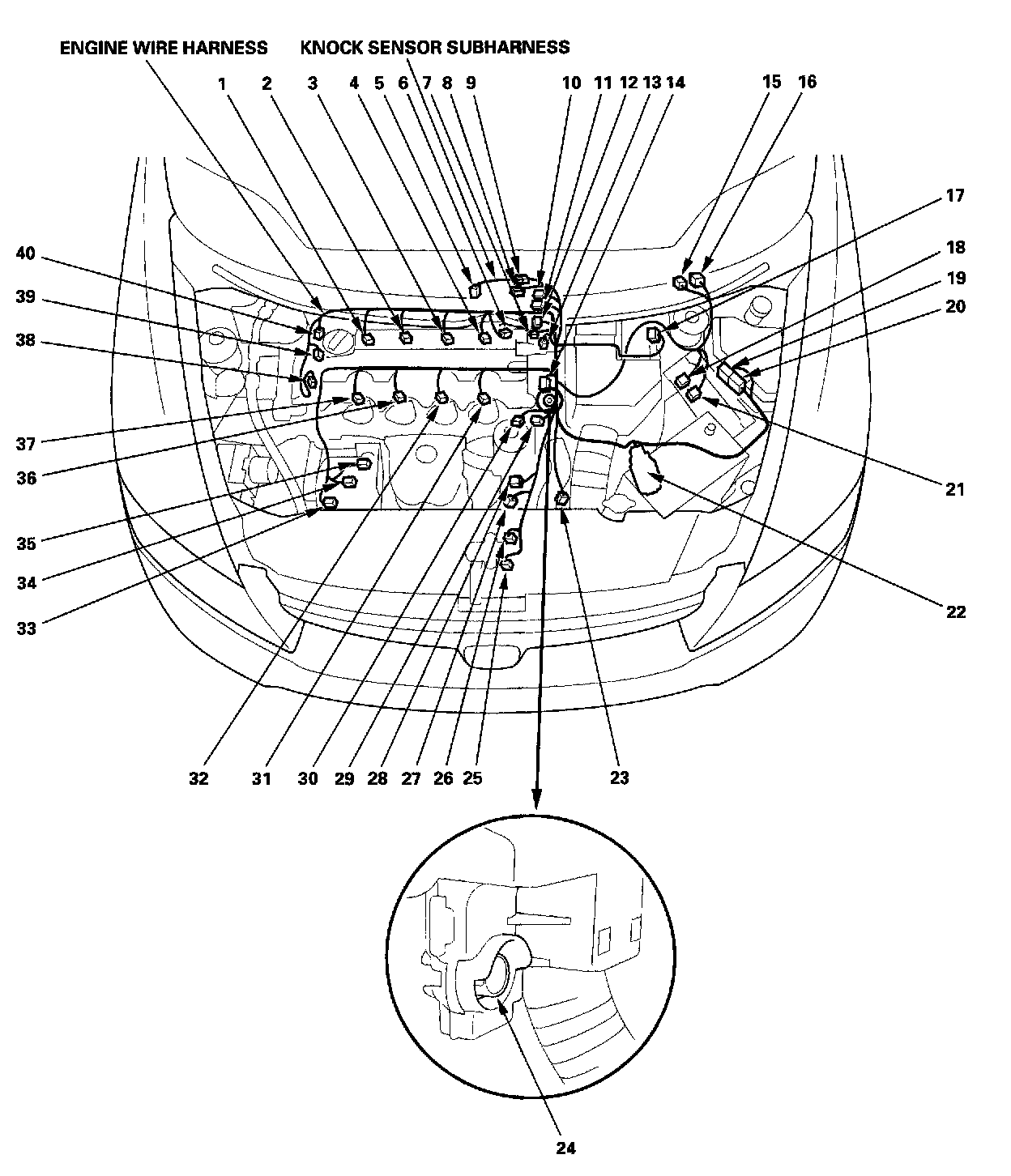

Harness Location View:
Knock Sensor Subharness (M/T):
