Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Dashboard Wire Harness (View of Driver's Side)

Dashboard Wire Harness (View of Driver's Side)

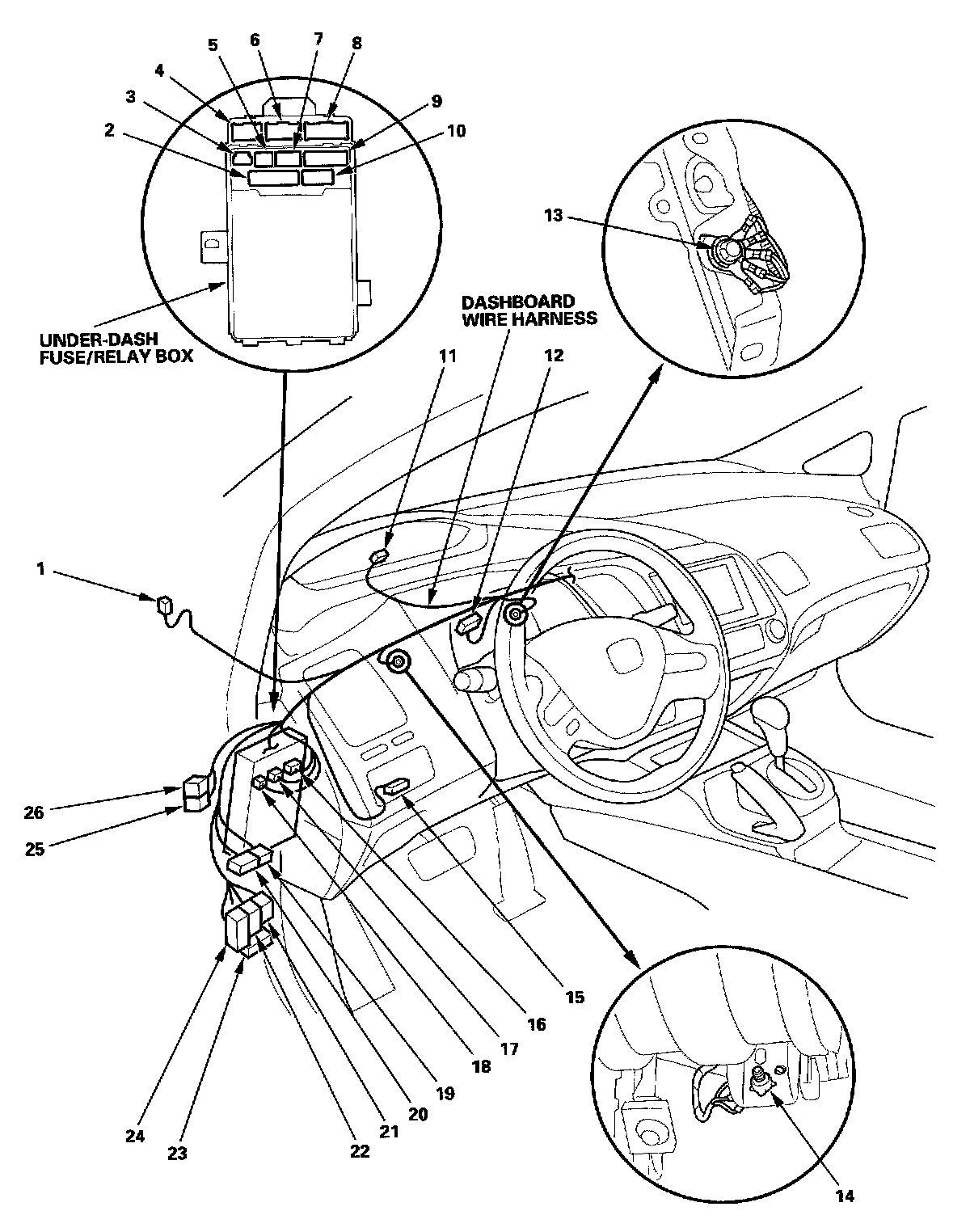

Harness Location View:

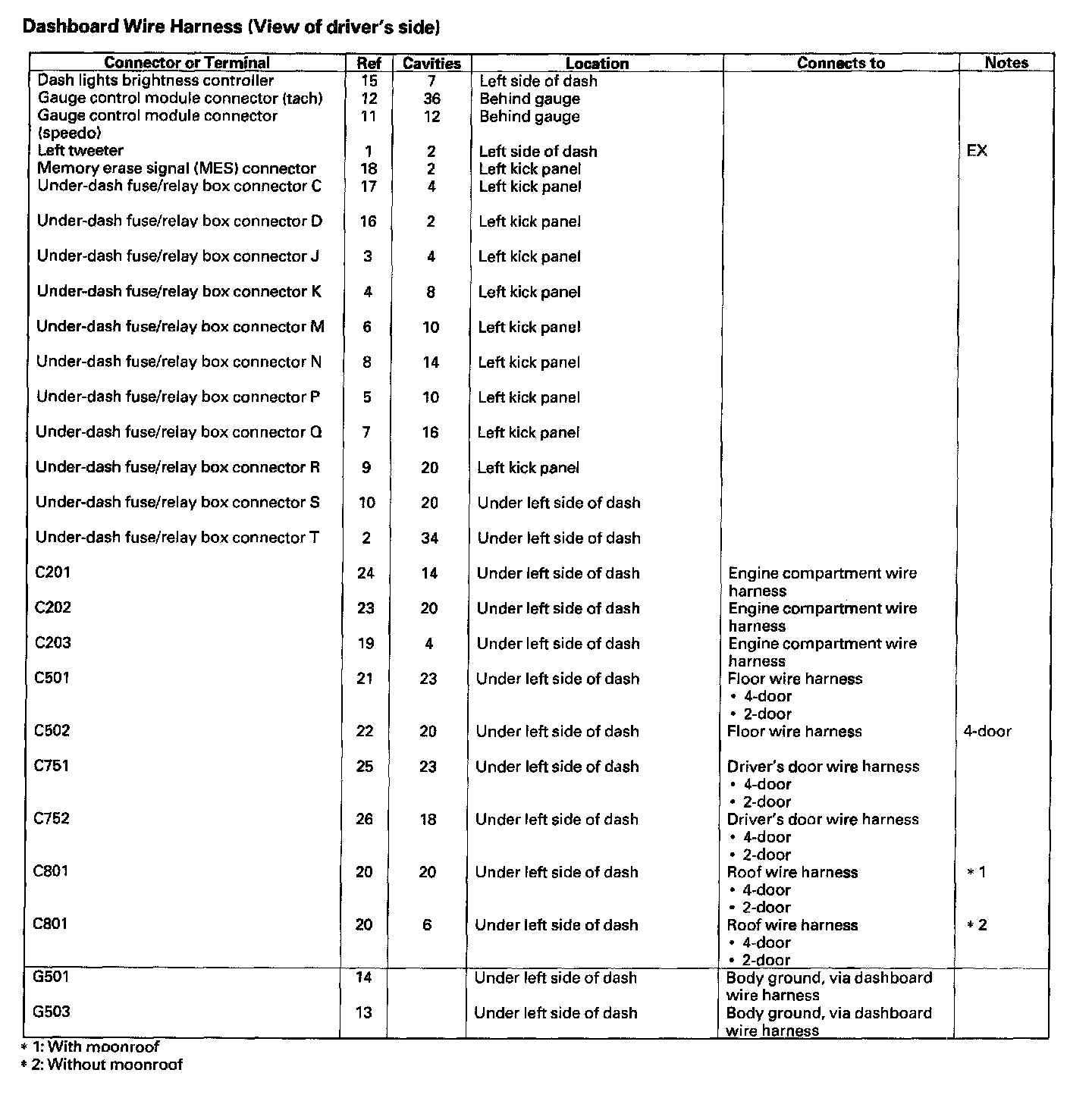

Dashboard Wire Harness (View Of Driver's Side):
