Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Cable Reel Subharness (USA DX Model)

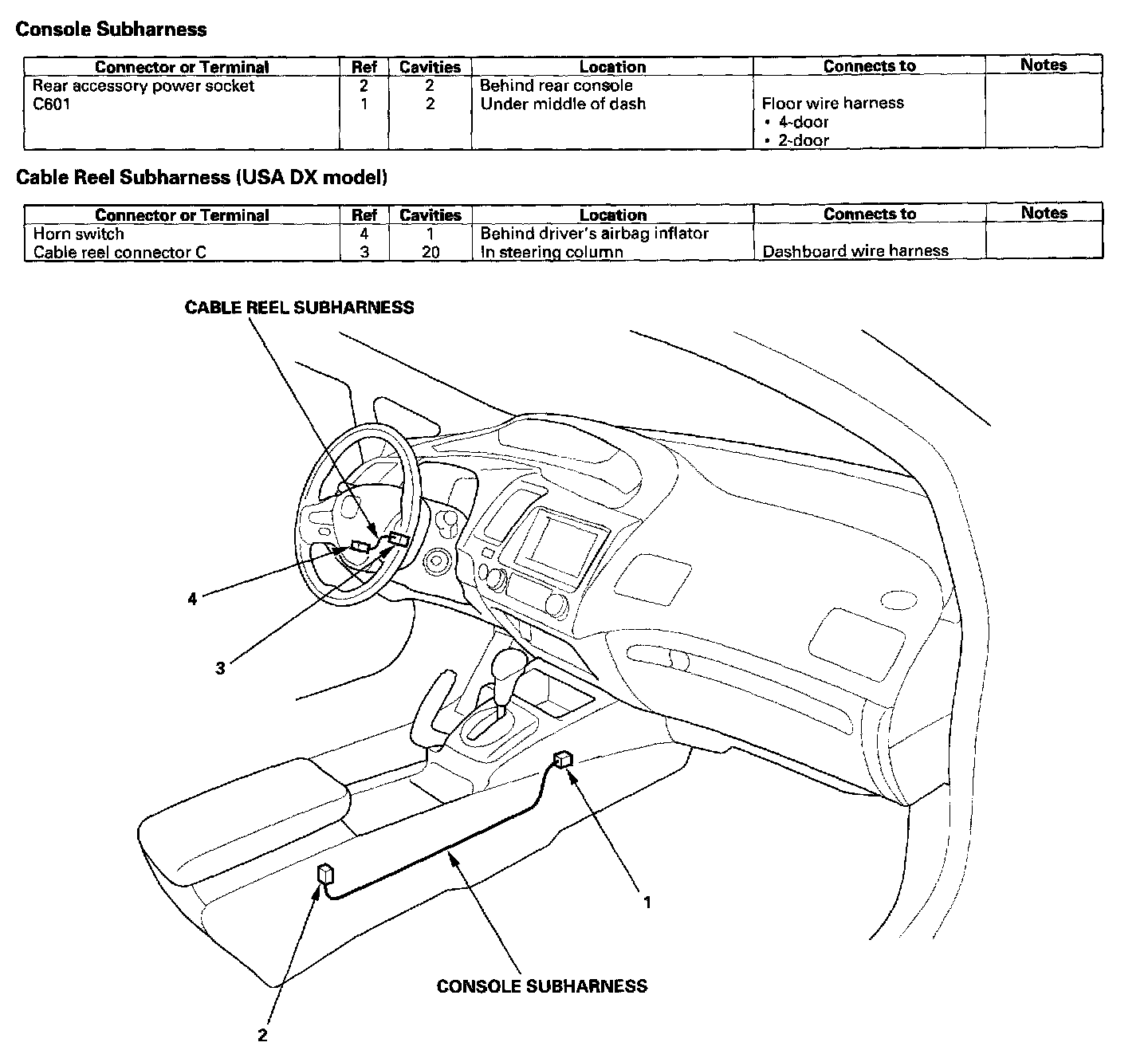

Cable Reel Subharness (USA DX Model)

Console Subharness/Cable Reel Subharness (USA DX Model):
