Circuit Diagrams

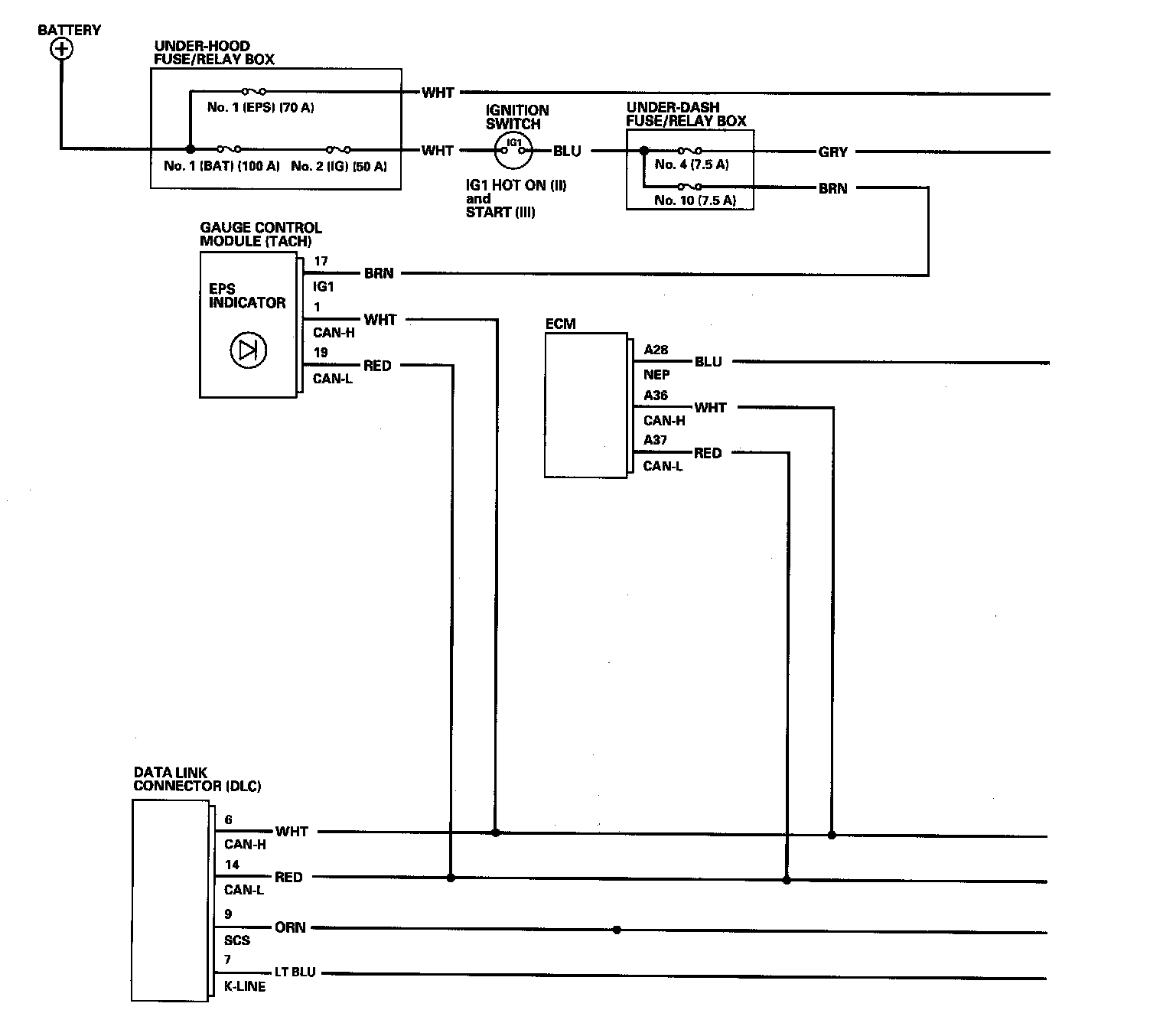

Electrical Power Steering (EPS) Circuit Diagram (part 1):

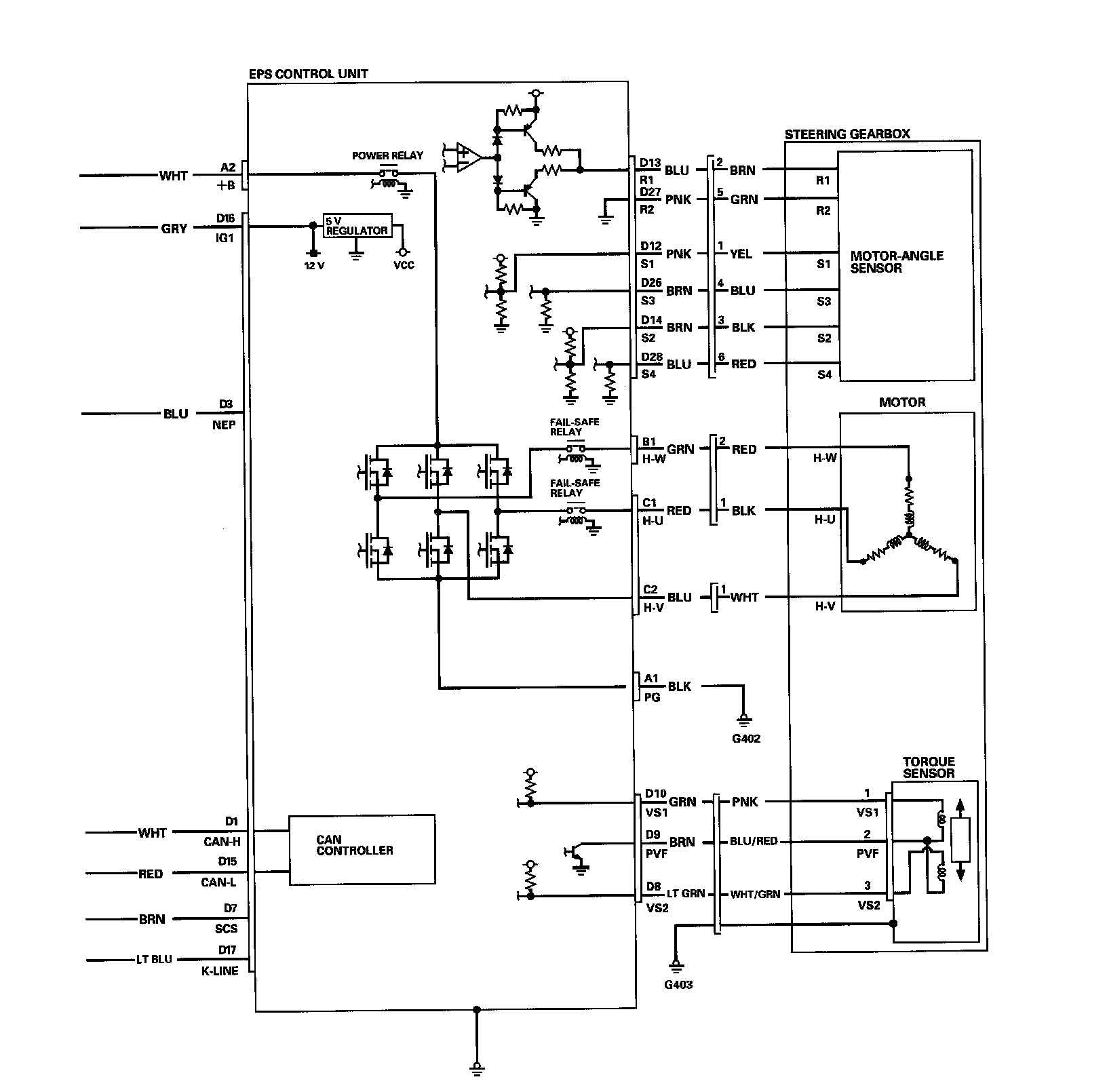

Electrical Power Steering (EPS) Circuit Diagram (part 2):

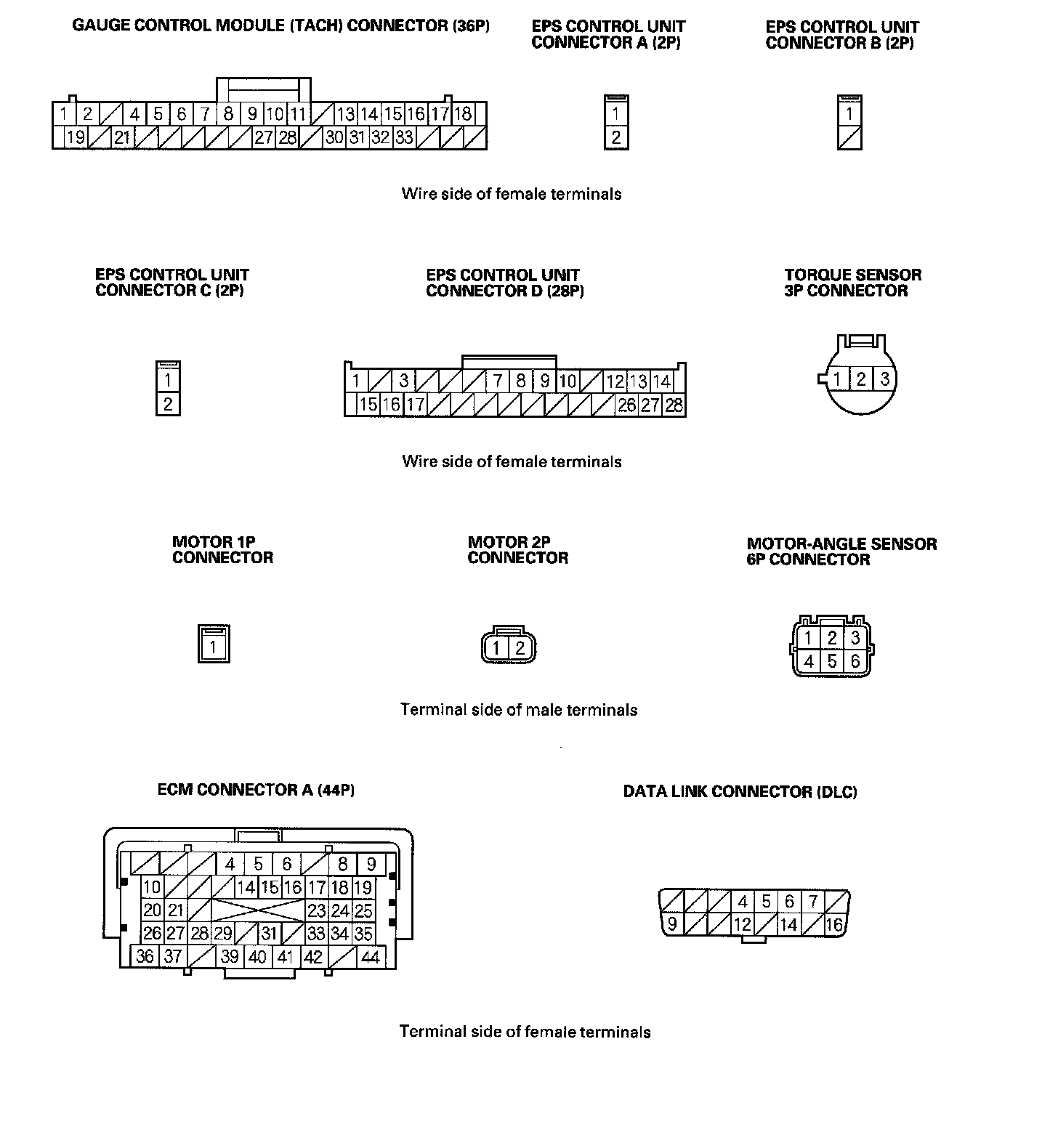

Electrical Power Steering (EPS) Circuit Diagram (part 3):
