Circuit Diagrams

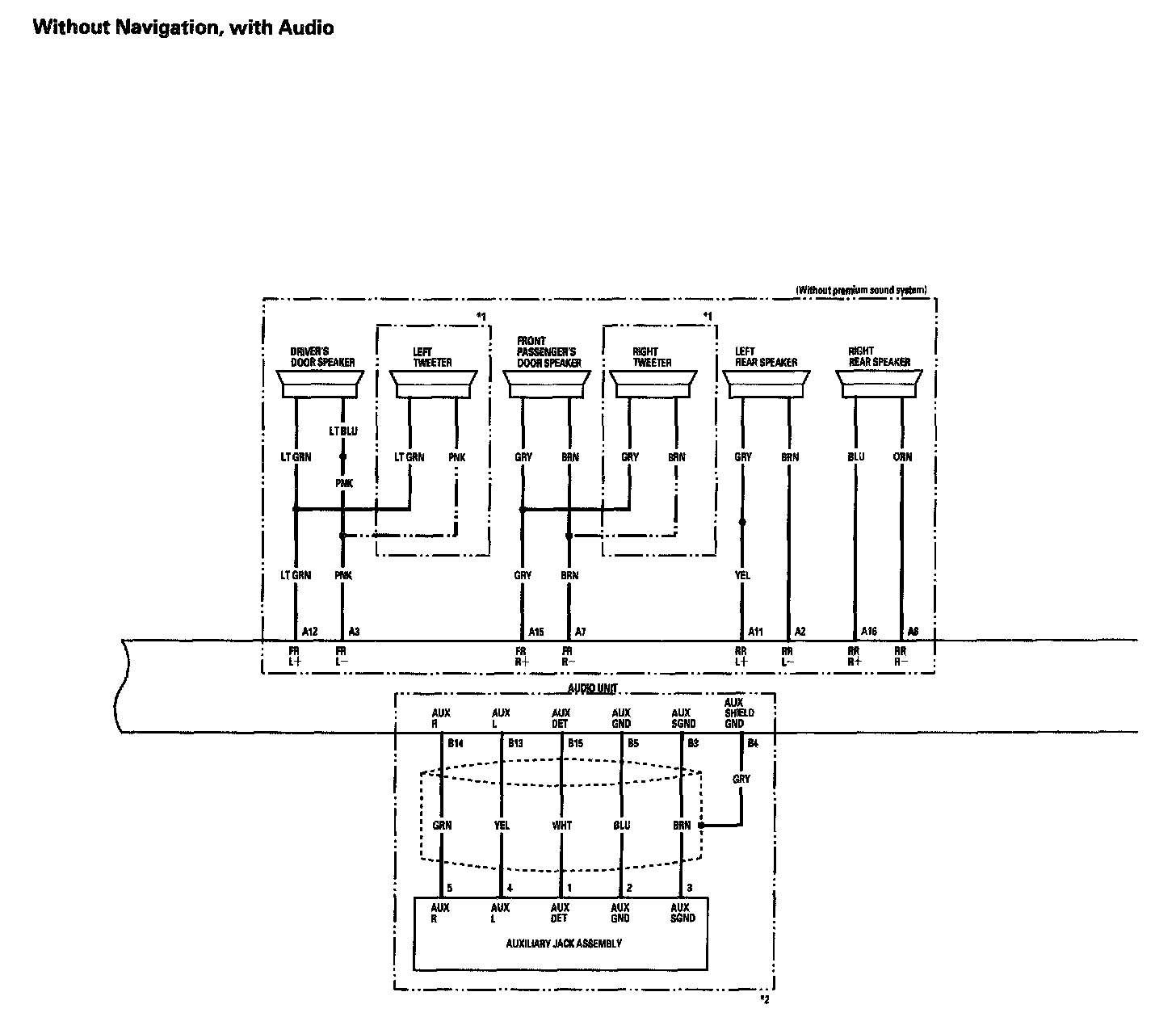

Audio System - Circuit Diagram Part 1:

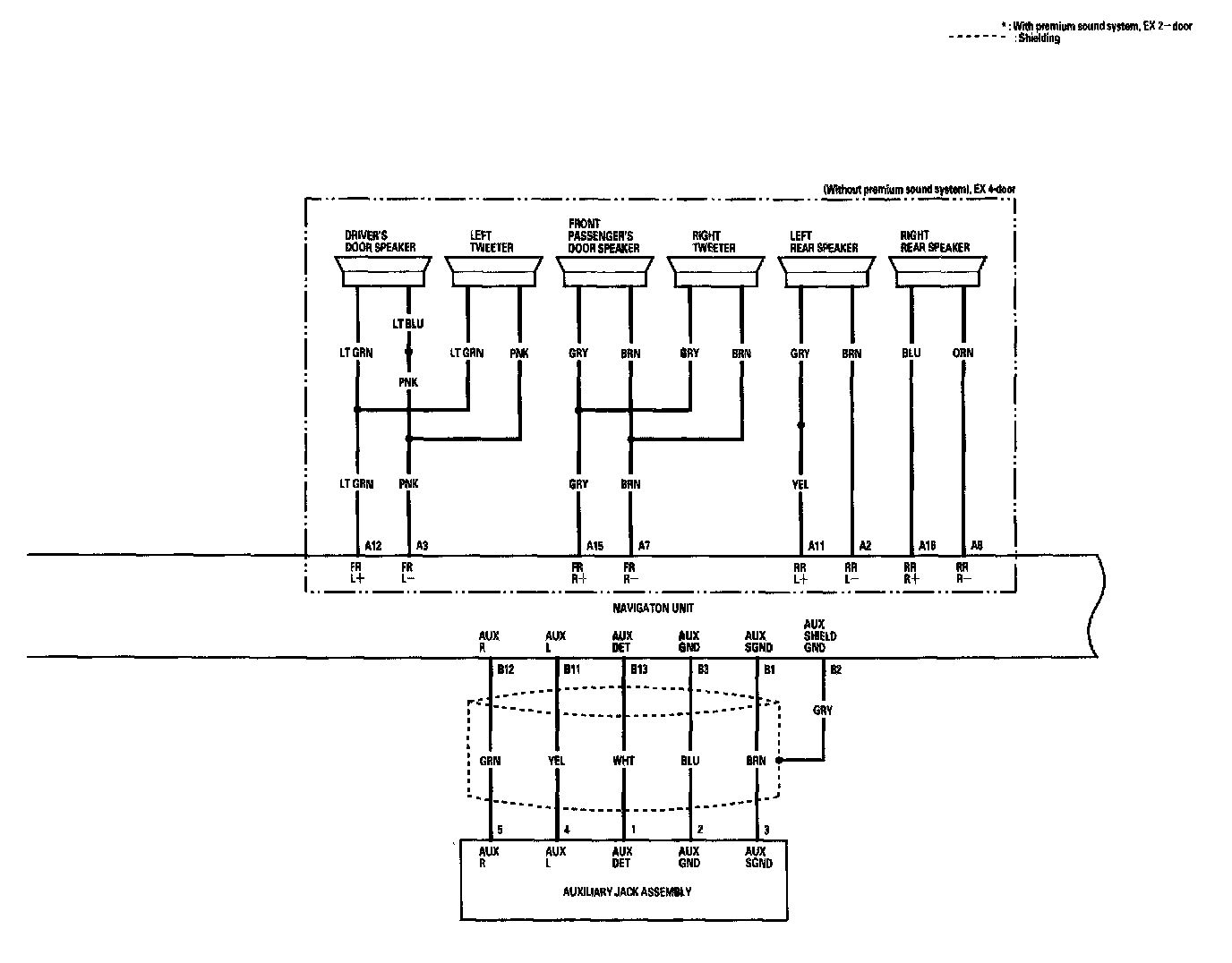

Audio System - Circuit Diagram Part 2:

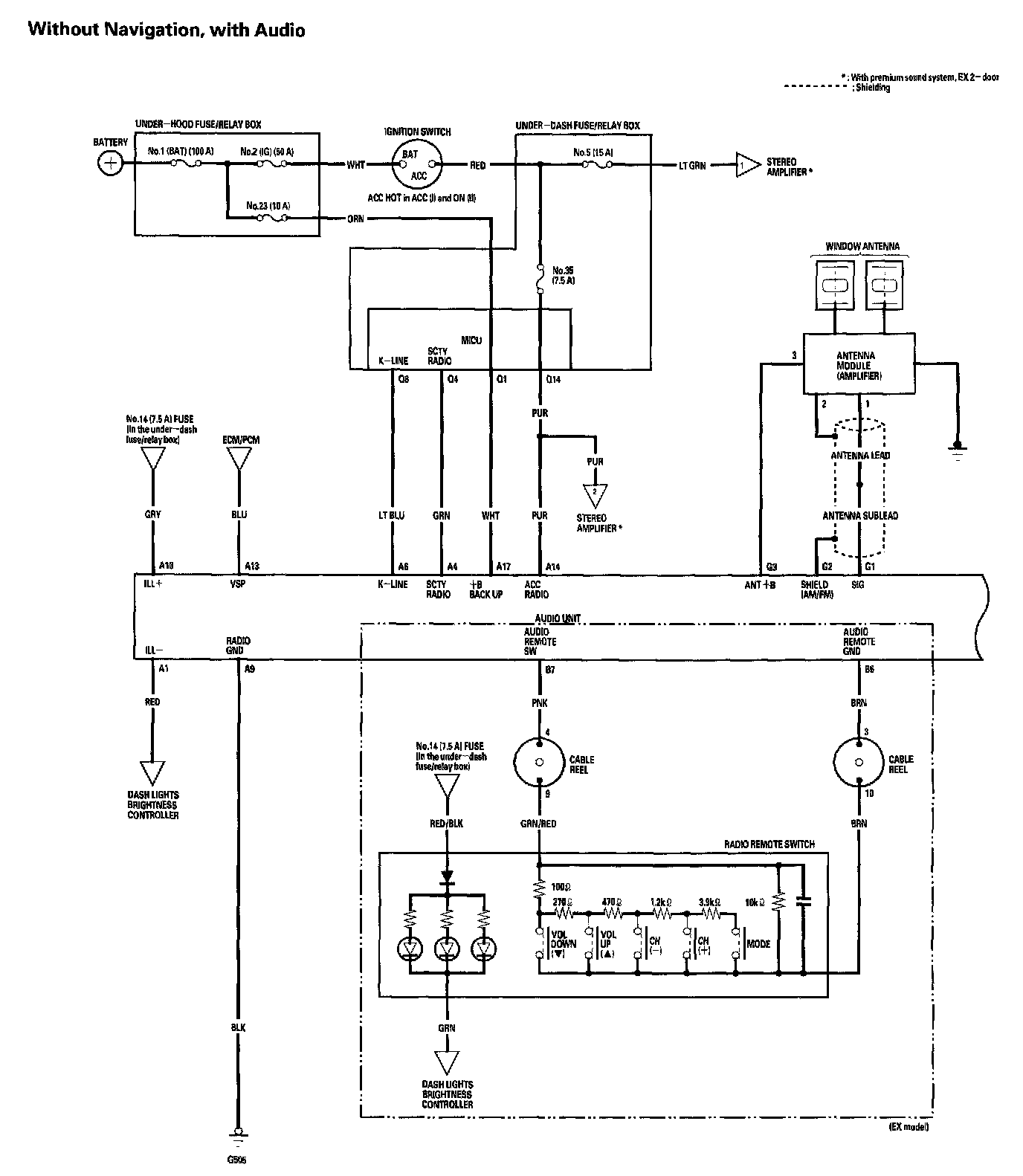

Audio System - Circuit Diagram Part 3:

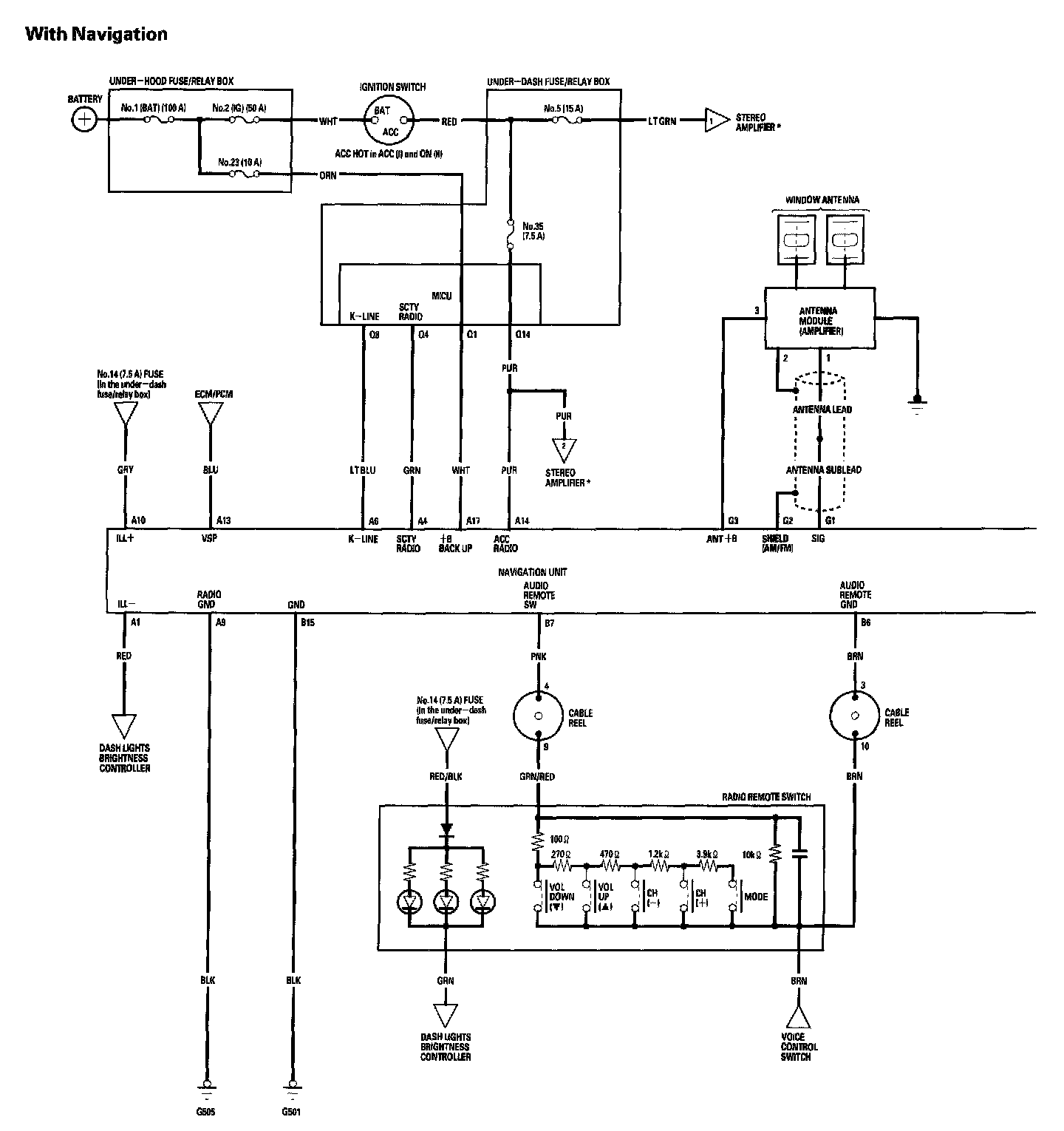

Audio System - Circuit Diagram Part 4:

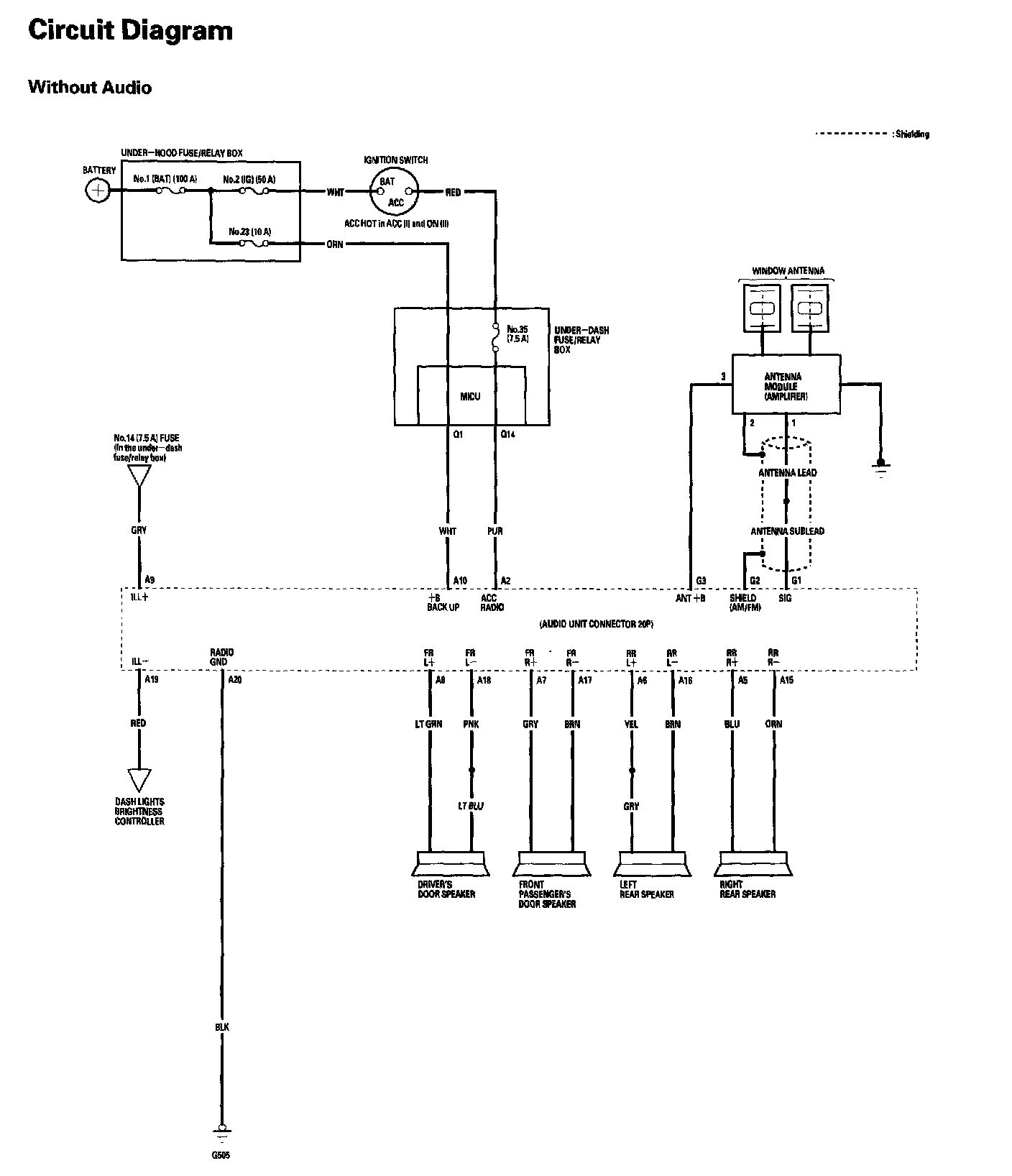

Audio System - Circuit Diagram Part 5:

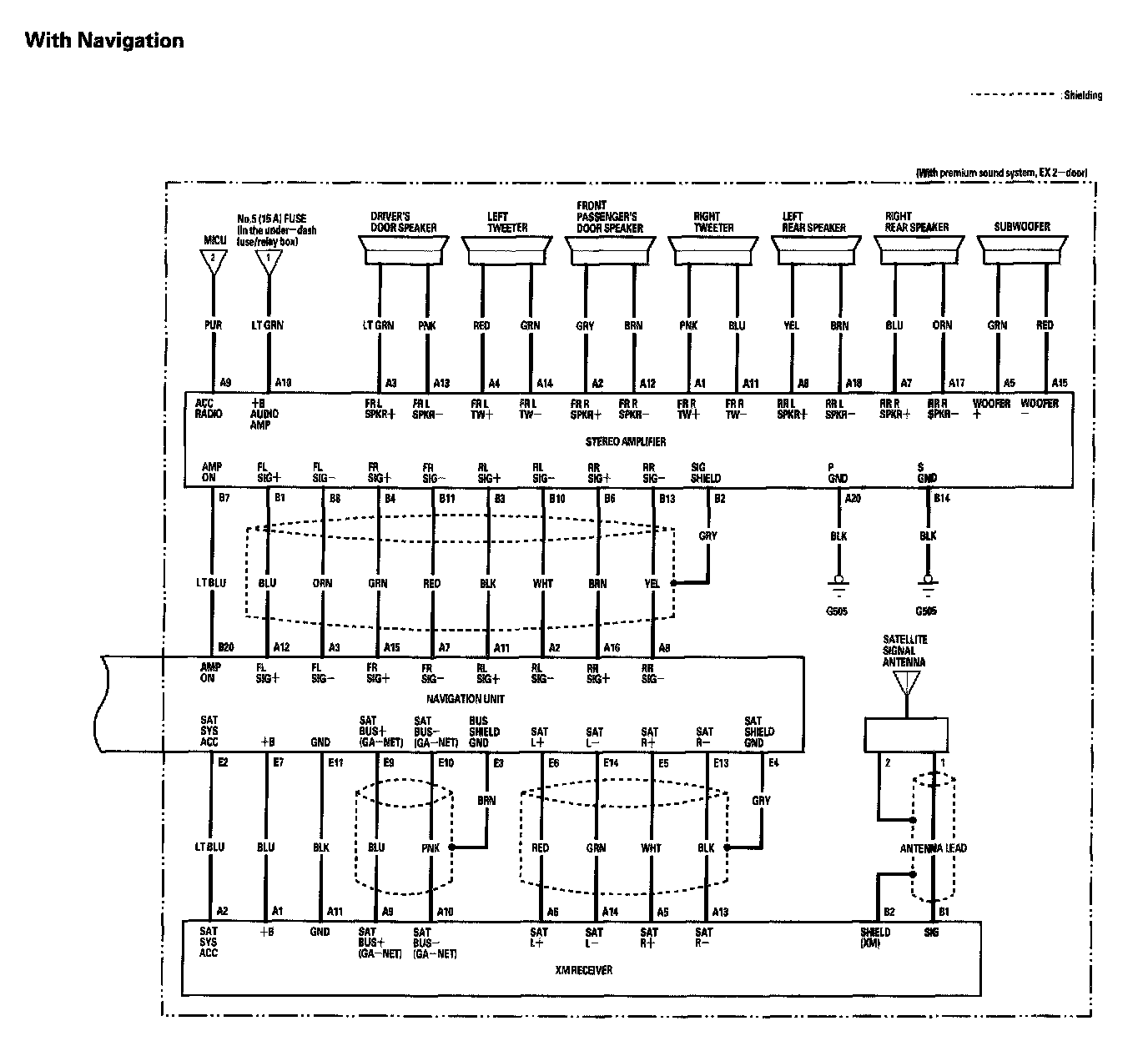

Audio System - Circuit Diagram Part 6:

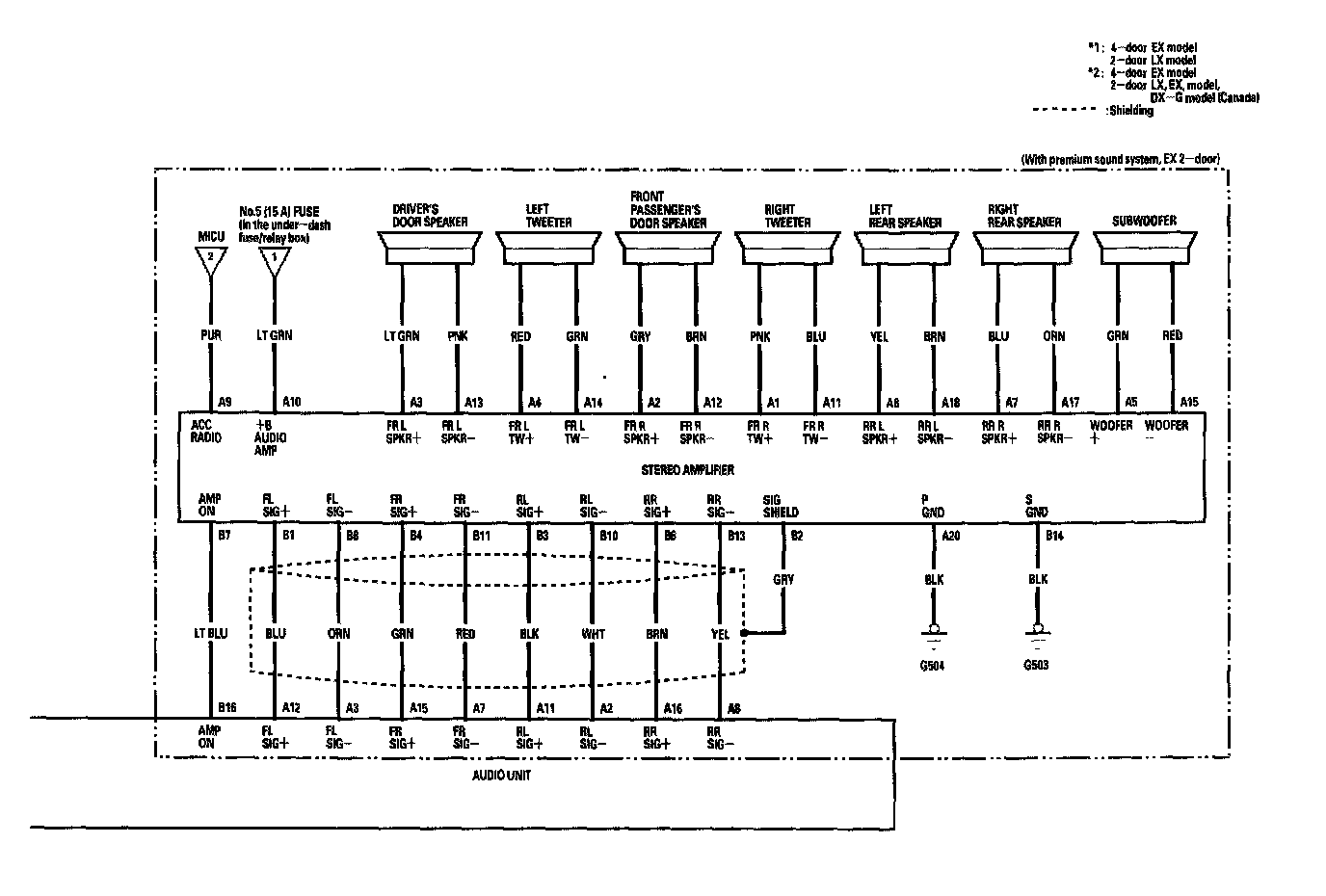

Audio System - Circuit Diagram Part 7:
