Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Splice and Junction Connector Details >> Vehicle Speed Sensor Signal (LX, EX, GX, Si; Canada: DX, DX-G)

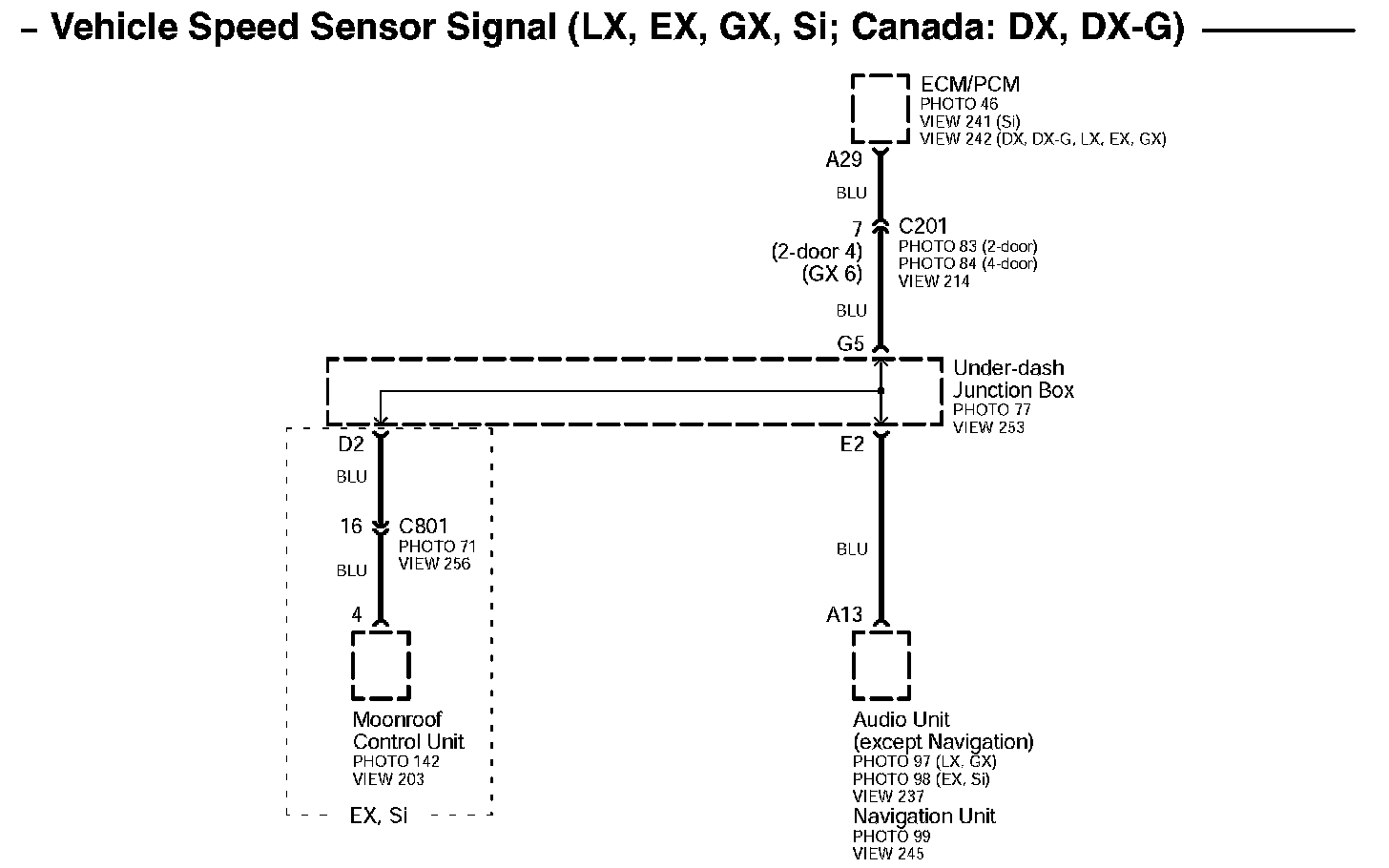

Vehicle Speed Sensor Signal (LX, EX, GX, Si; Canada: DX, DX-G)

Vehicle Speed Sneosr Signal (LX, EX, GX, Si; Canada: DX, DX-G):
