Heating/Air Conditioning Circuit Diagram

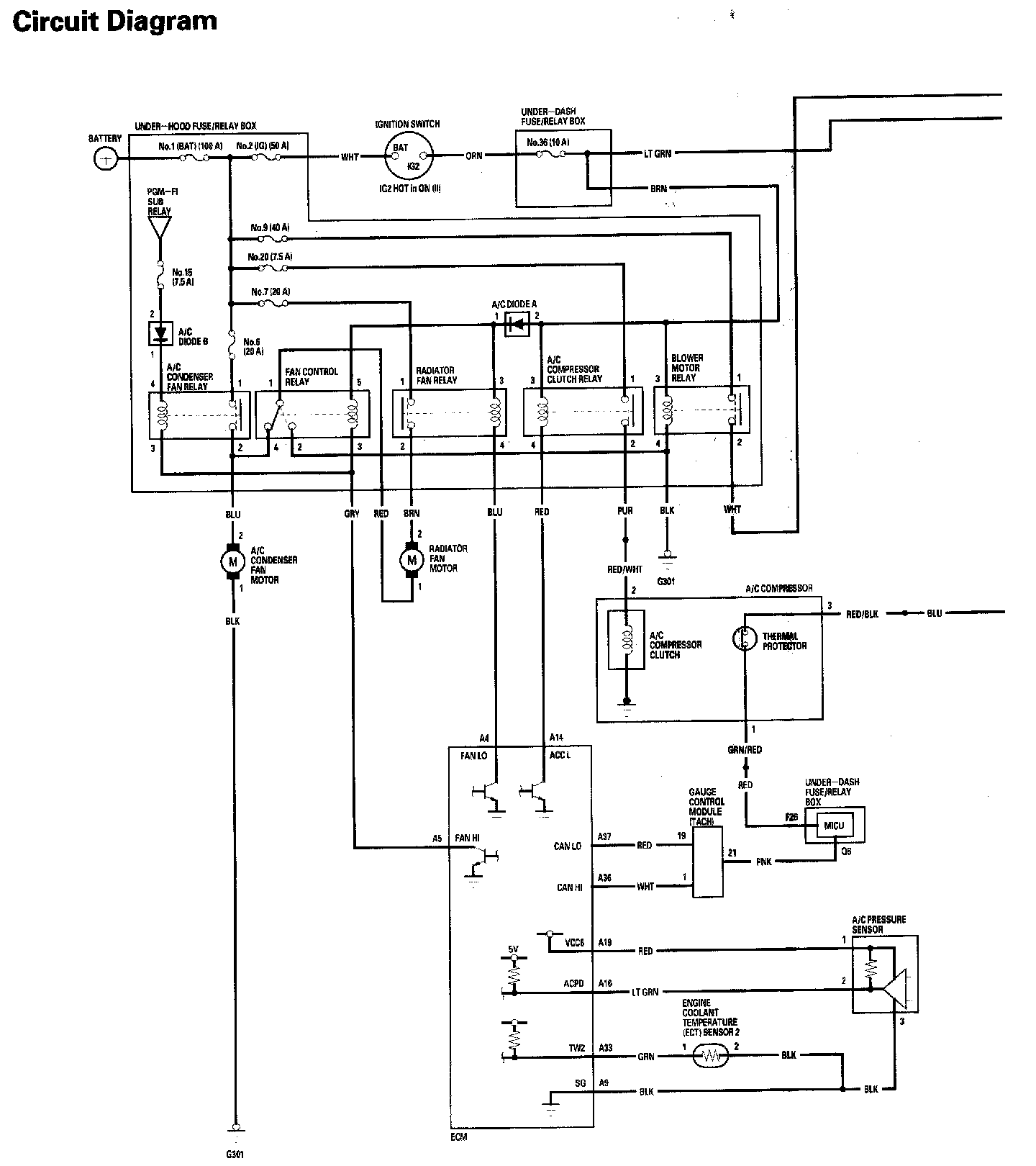

Heating/air Conditioning Circuit Diagram - Part 1:

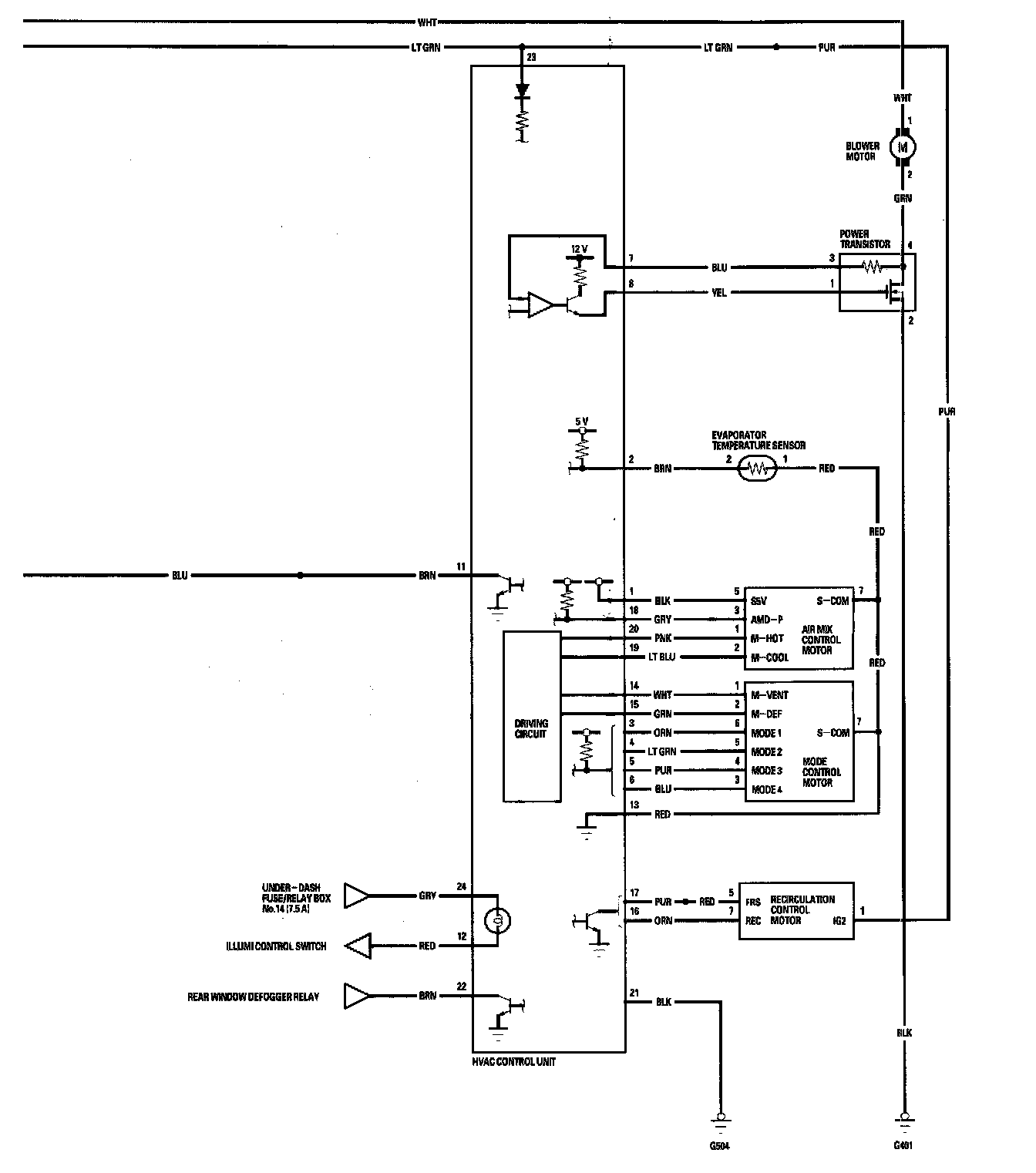

Heating/Air Conditioning - Circuit Diagram - Part 2:
