Starter Sub-Harness (Si)

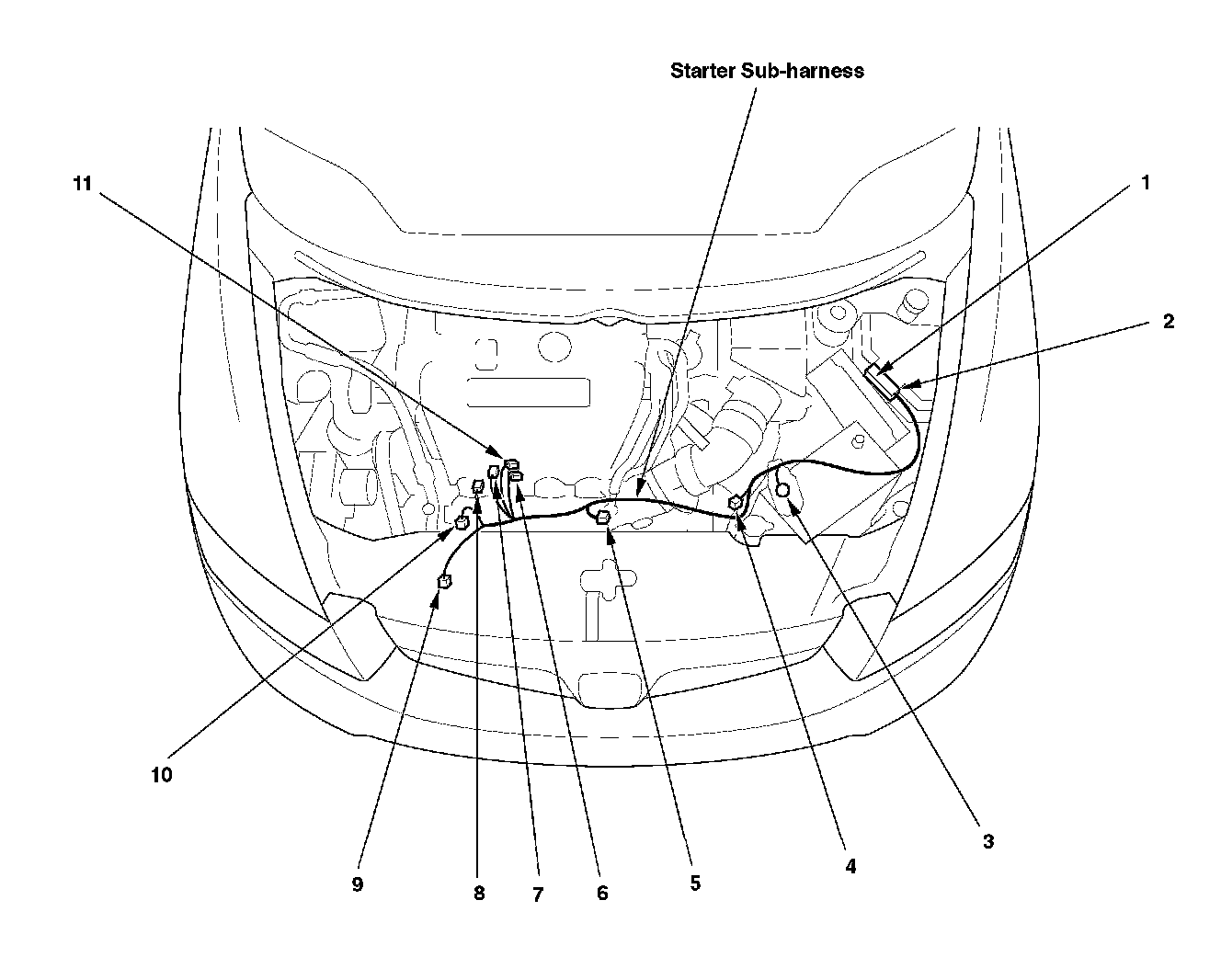

Harness Location View:

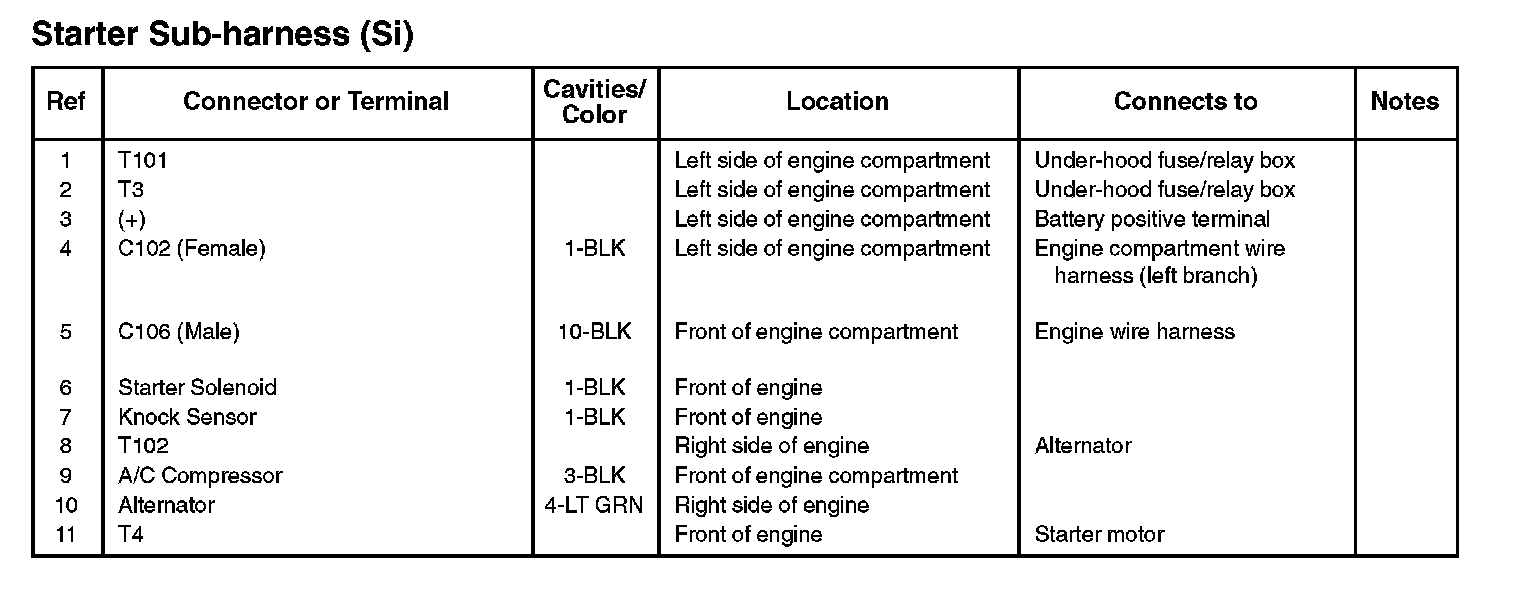

Starter Sub-harness (Si):

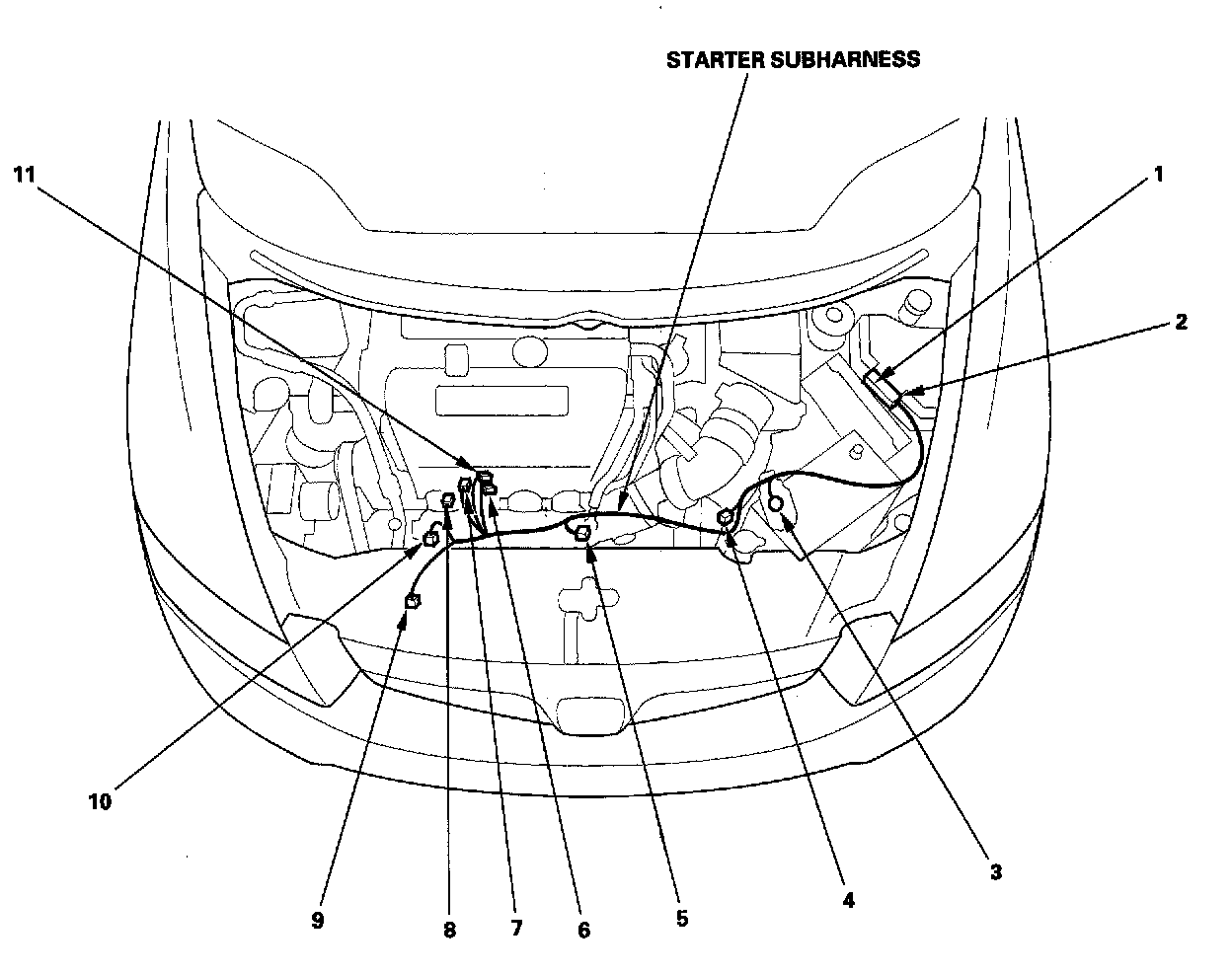

Harness Location View:



Starter Subharness:
