Rear Window Defogger Ground Wire (4-Door)
Rear Window Defogger Ground Wire (4-Door)

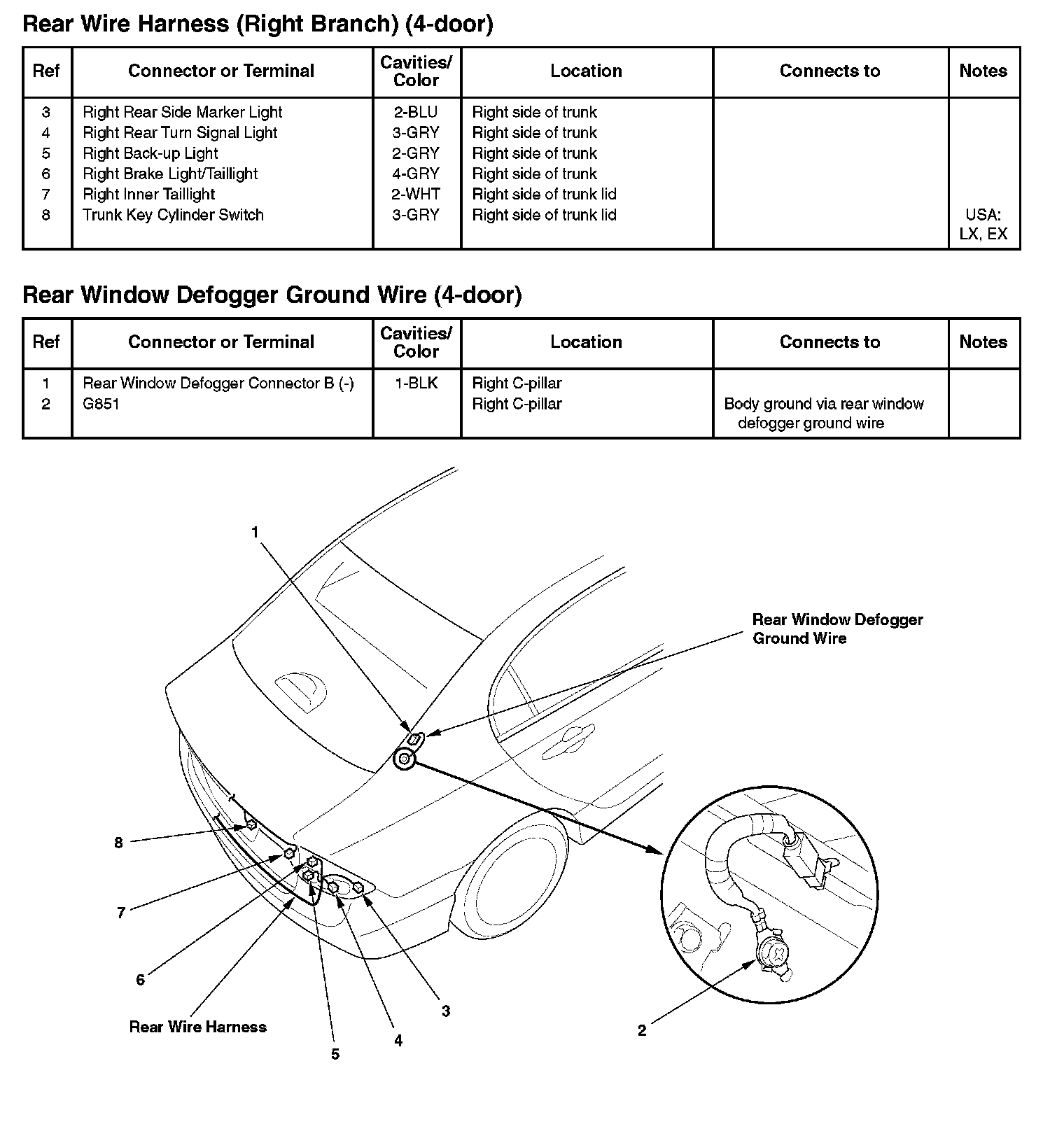

Rear Wire Harness (Right Branch) (4-door)/Rear Window Defogger Ground Wire (4-door):
