Dashboard Wire Harness (View From Driver's Side)

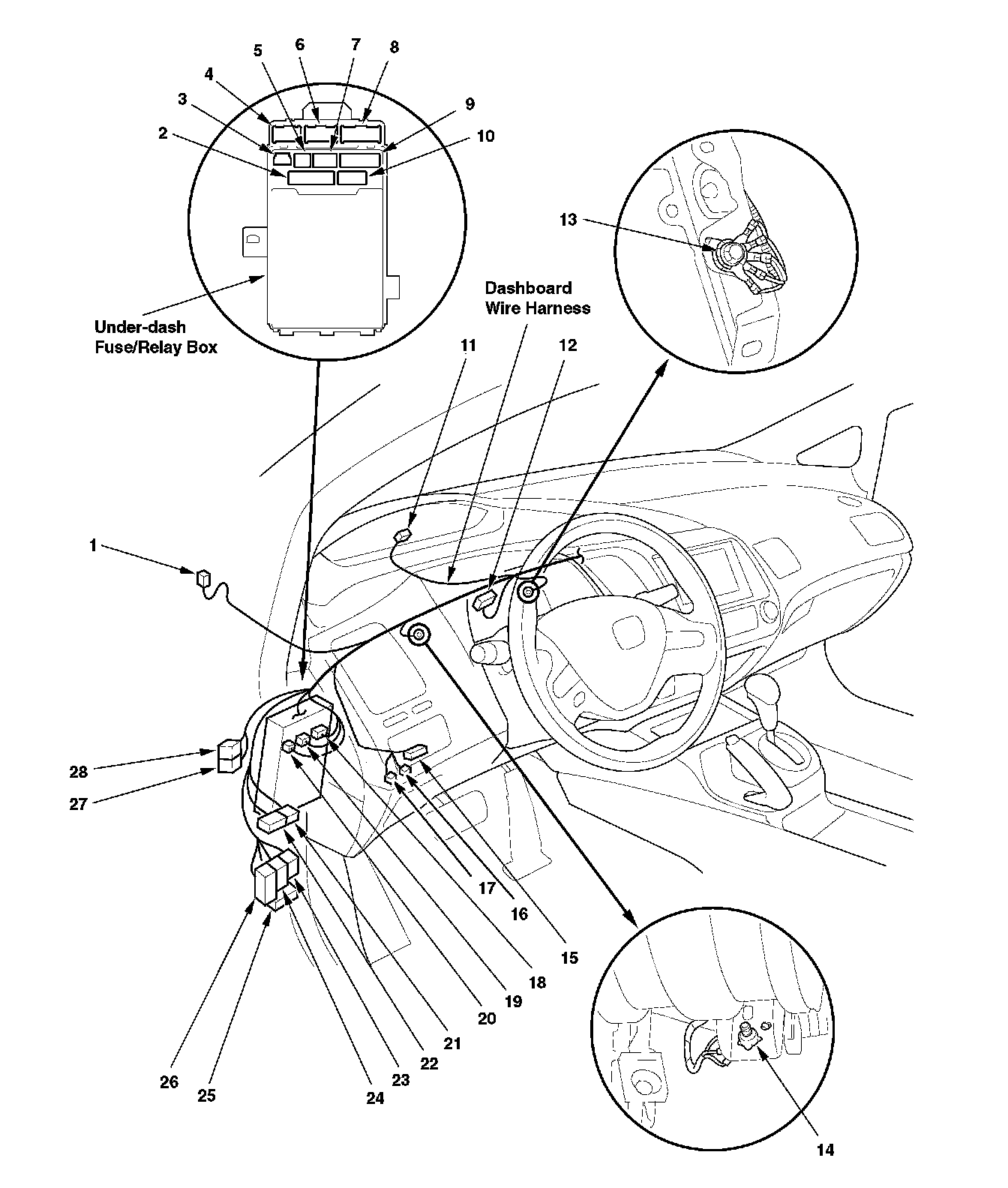

Harness Location View:

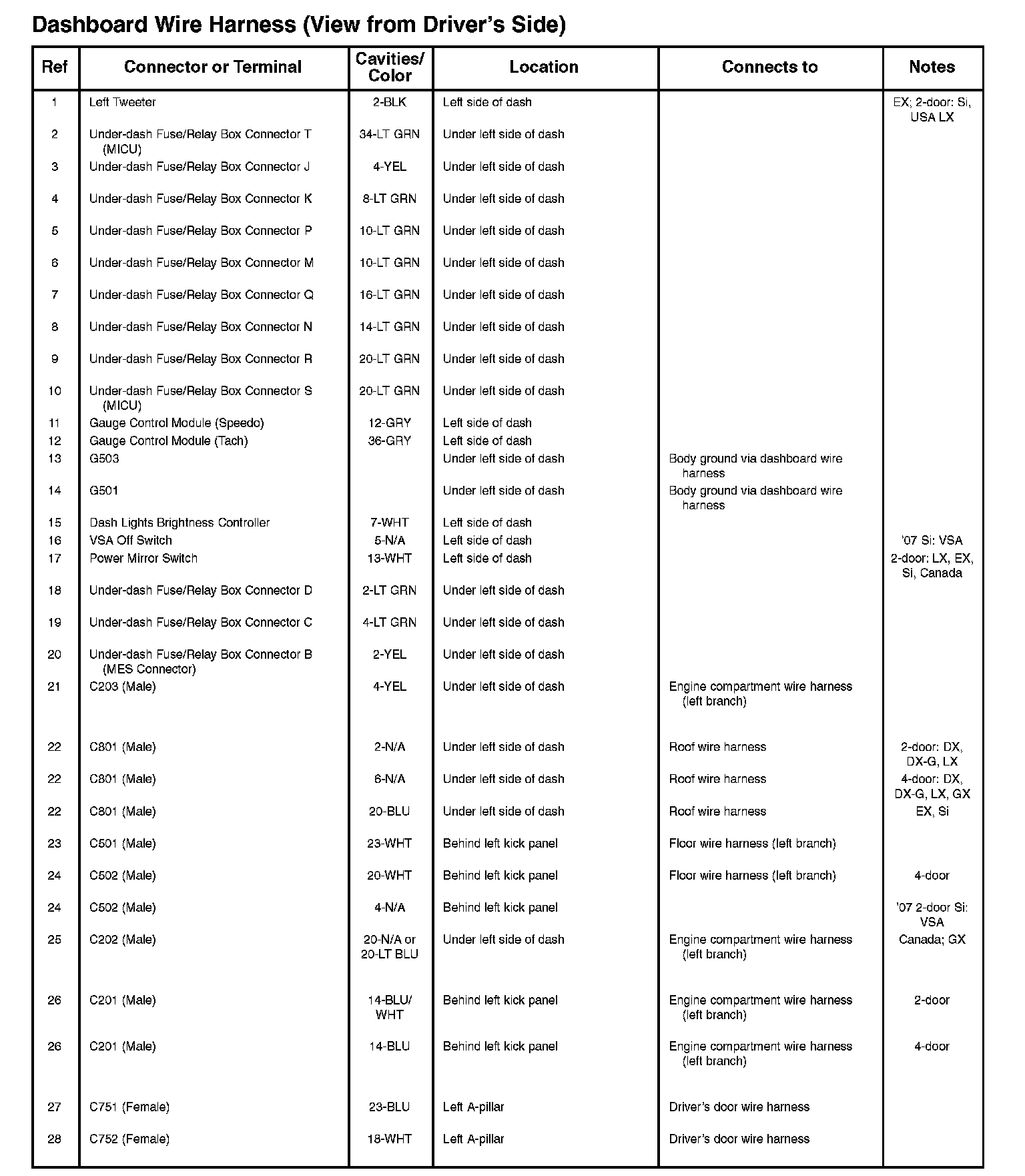

Dashboard Wire Harness (View from Driver's Side):
