System Diagram

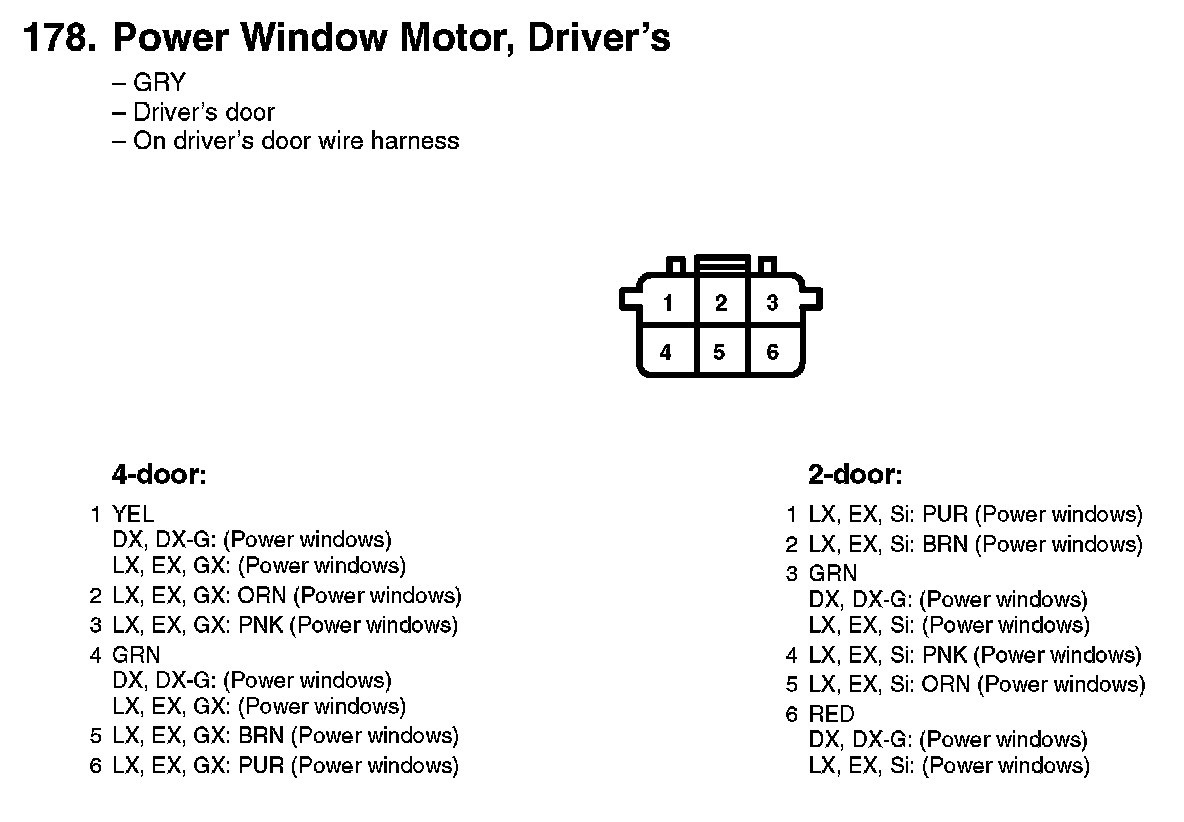

178. Power Window Motor, Driver's:



179. Power Window Motor, Front Passenger's:

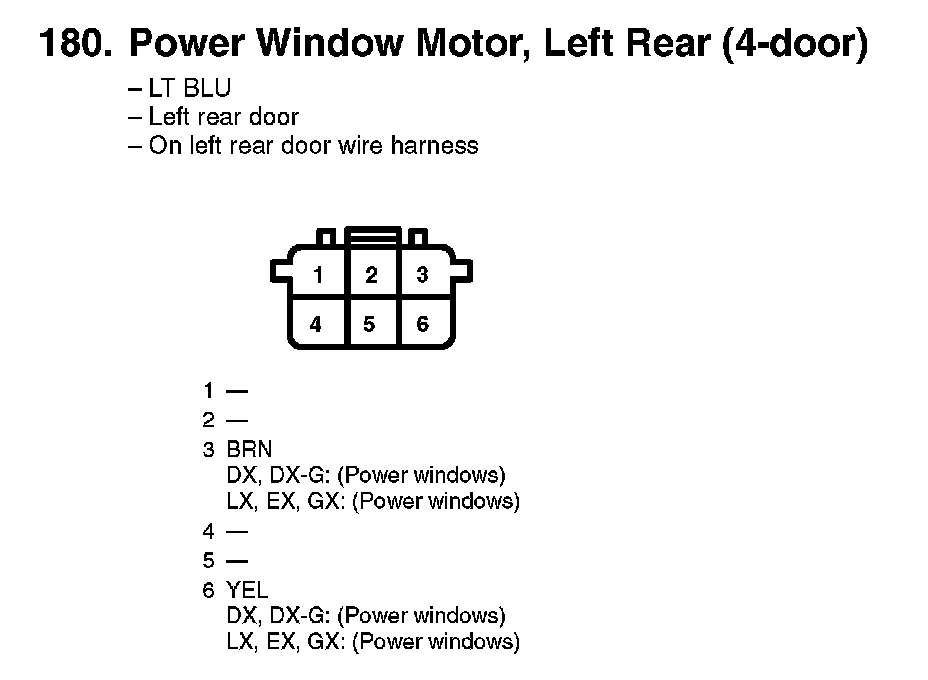

180. Power Window Motor, Left Rear (4-door):

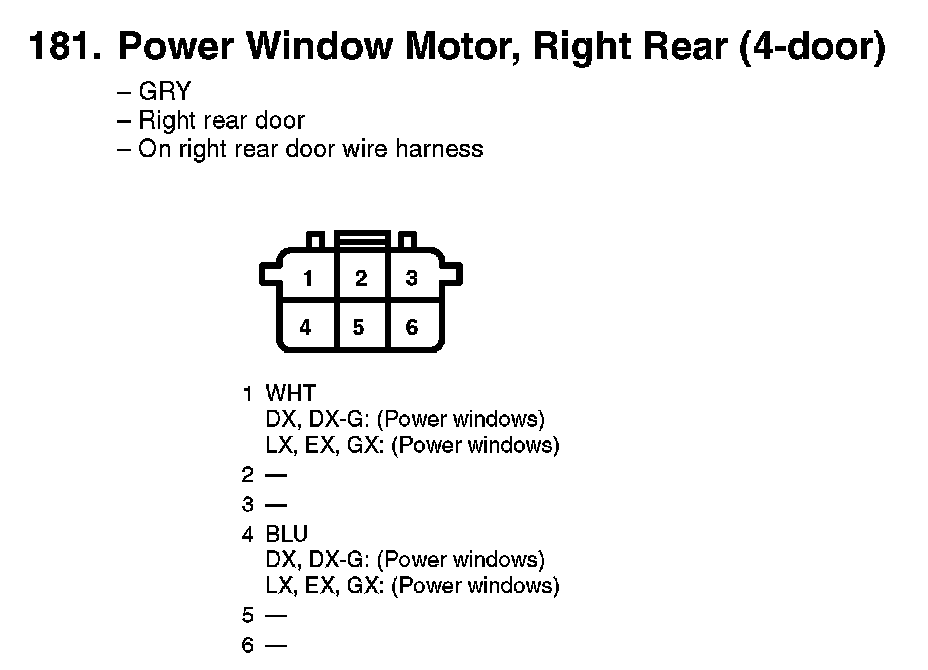

181. Power Window Motor, Right Rear (4-door):
