Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Module

Navigation Module

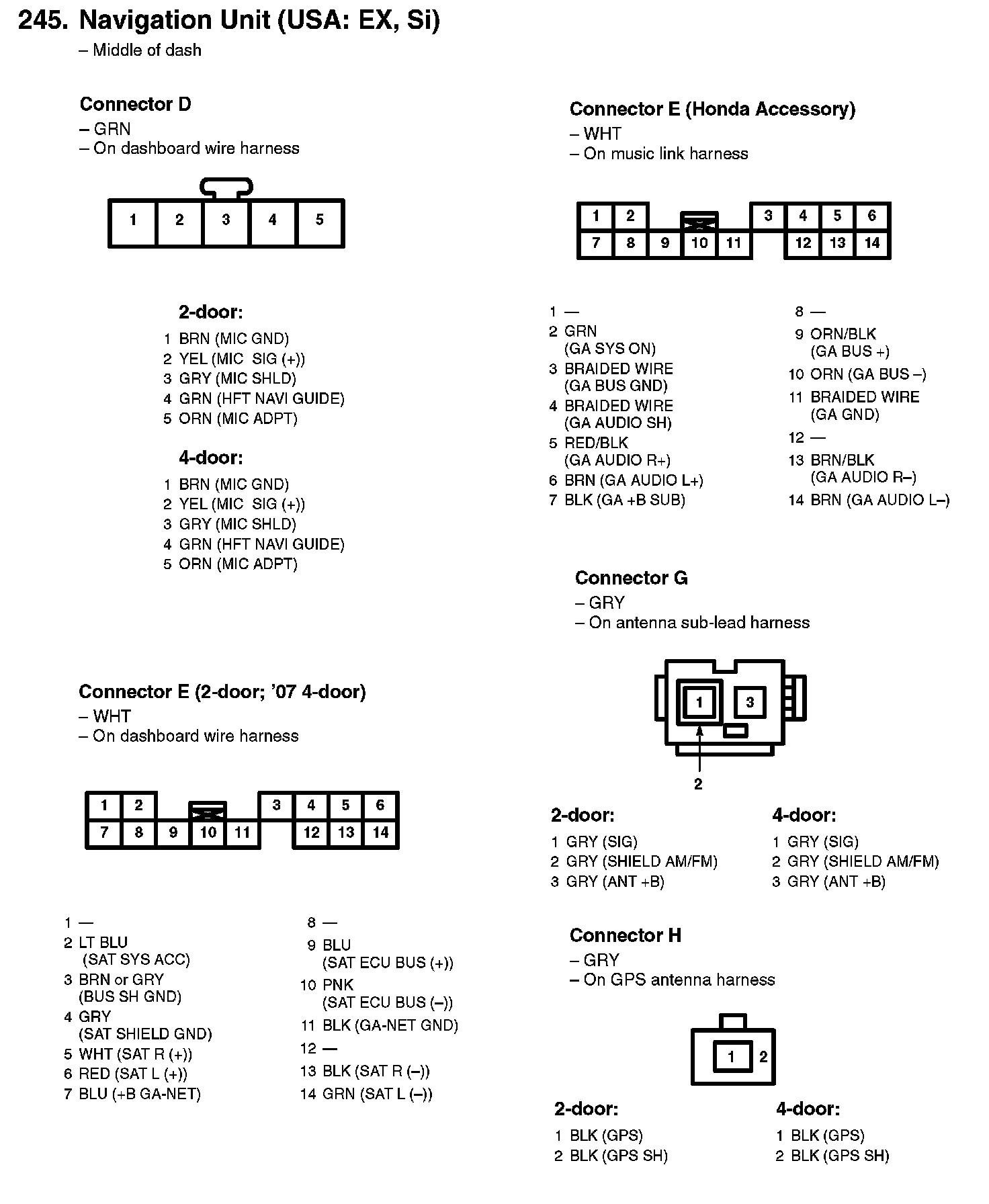

245. Navigation Unit (USA: EX, Si):



245. Navigation Unit (USA: EX, Si):
