Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Control Module Pinout Values, ABS

Control Module Pinout Values, ABS

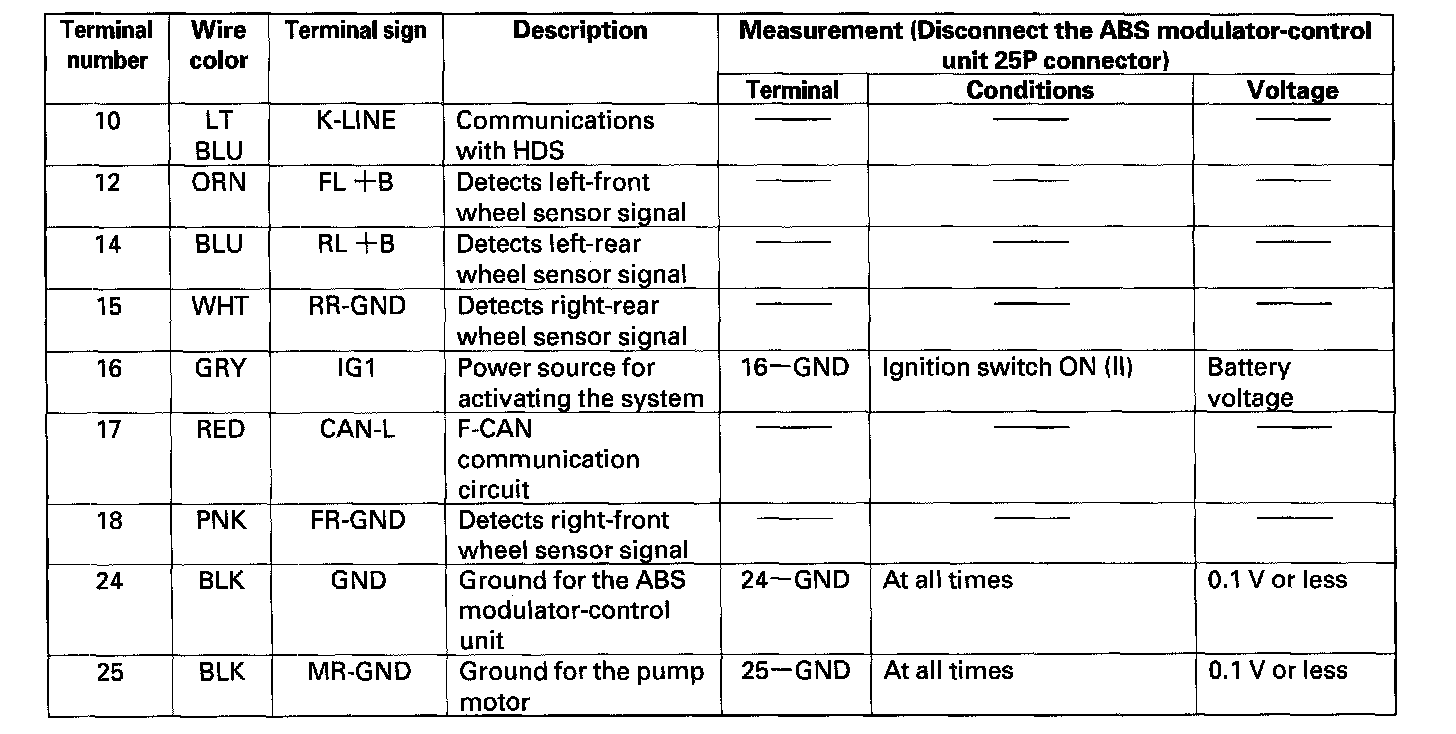

ABS Modulator-Control Unit Inputs and Outputs for 25P Connector:

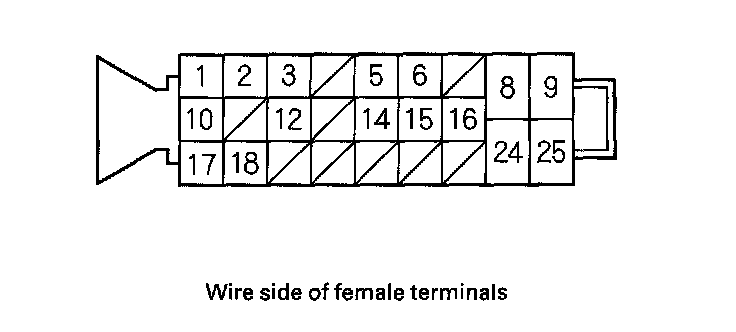

ABS Modulator-Control Unit Inputs and Outputs for 25P Connector:

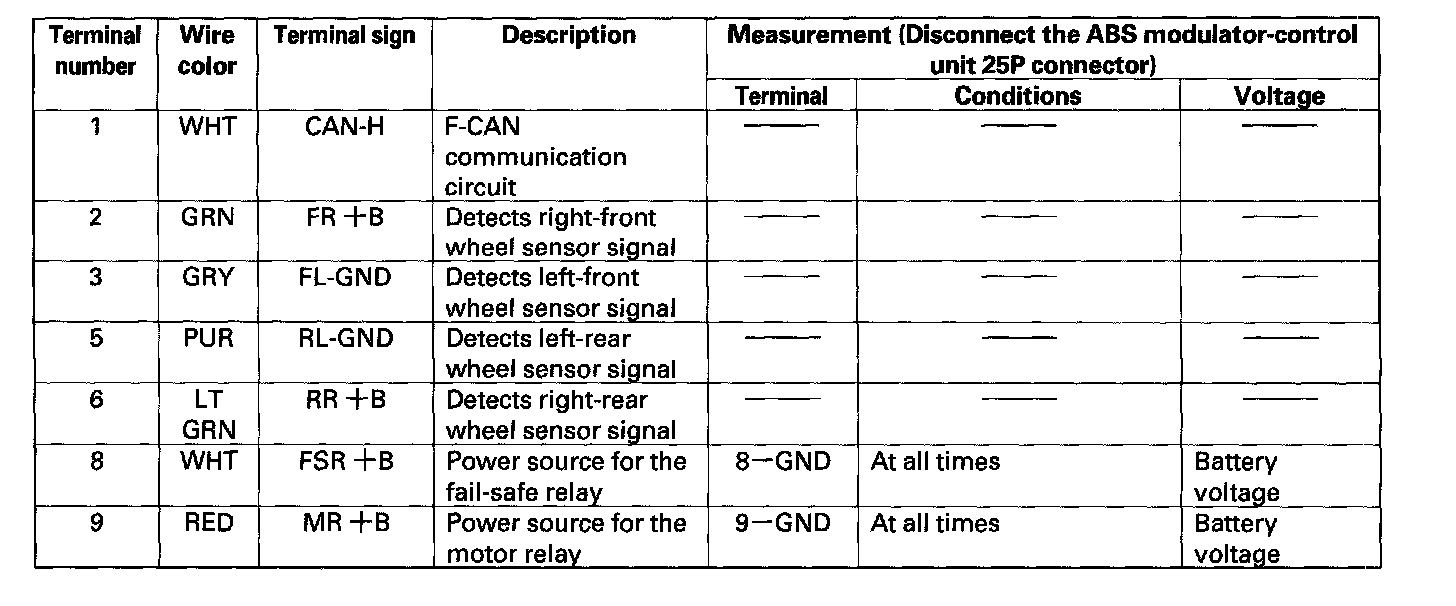

ABS Modulator-Control Unit Inputs and Outputs for 25P Connector:
