Home >> Honda >> 2006 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> ABS Modulator-Control Unit

ABS Modulator-Control Unit

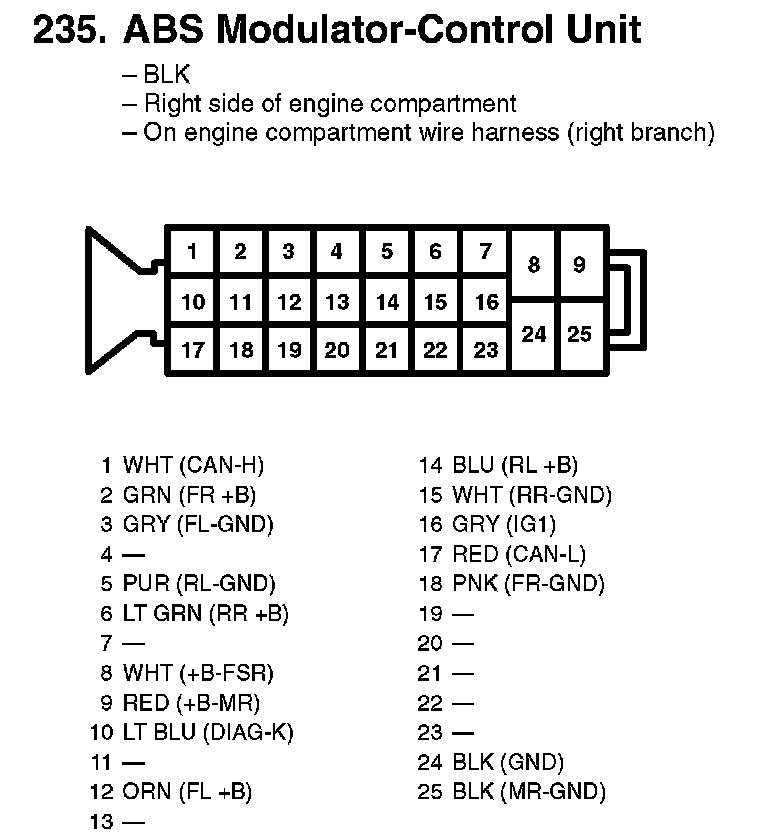

235. ABS Modulator-Control Unit:
