System Diagram

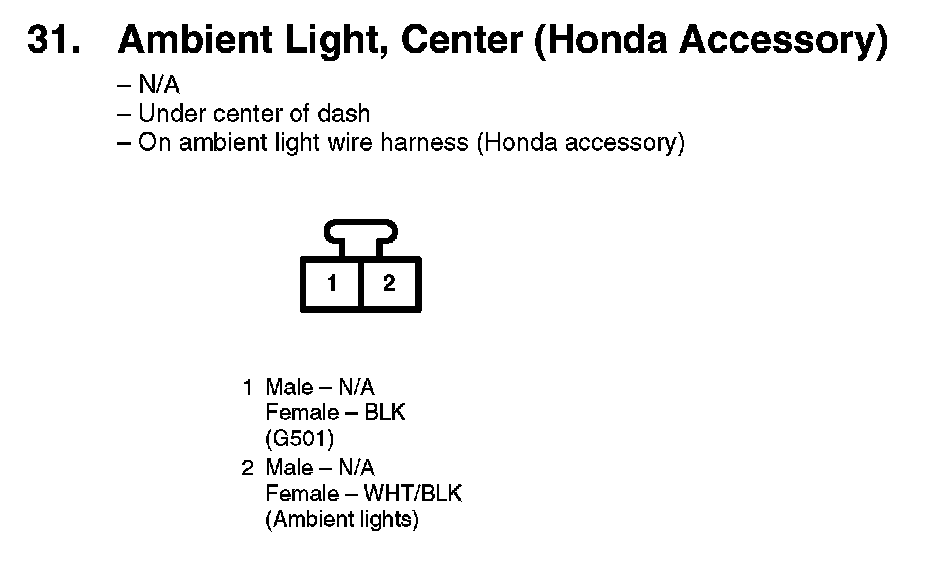

31. Ambient Light, Center (Honda Accessory):

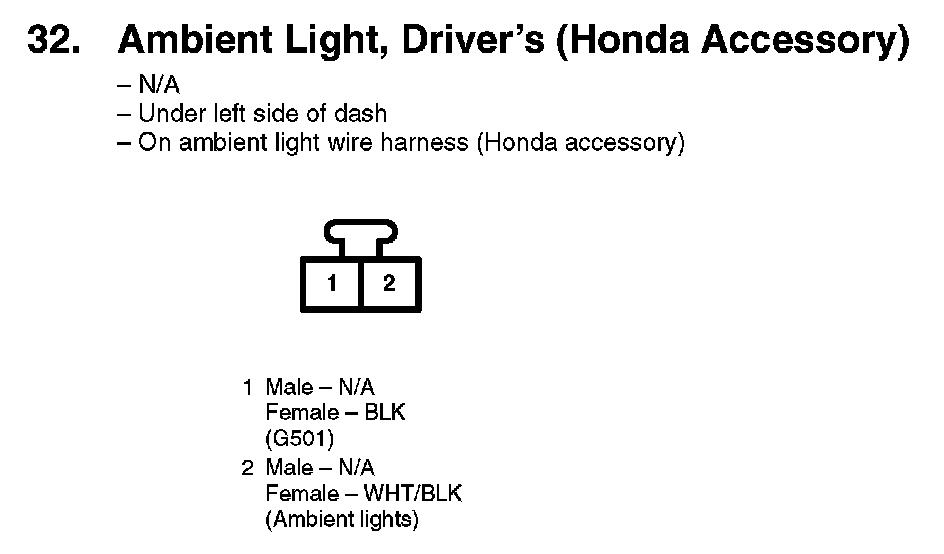

32. Ambient Light, Driver's (Honda Accessory):

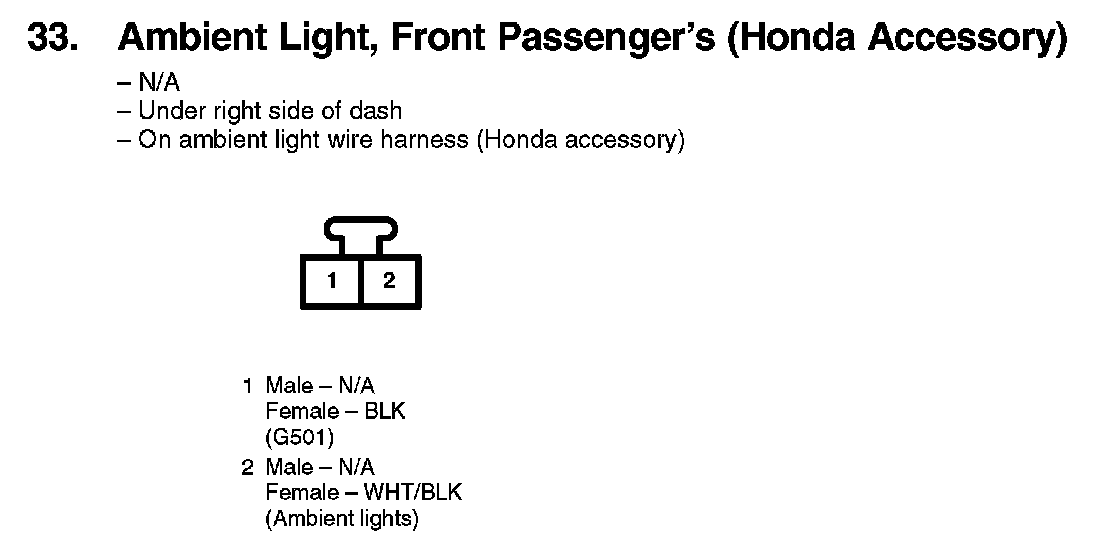

33. Ambient Light, Front Passenger's (Honda Accessory):

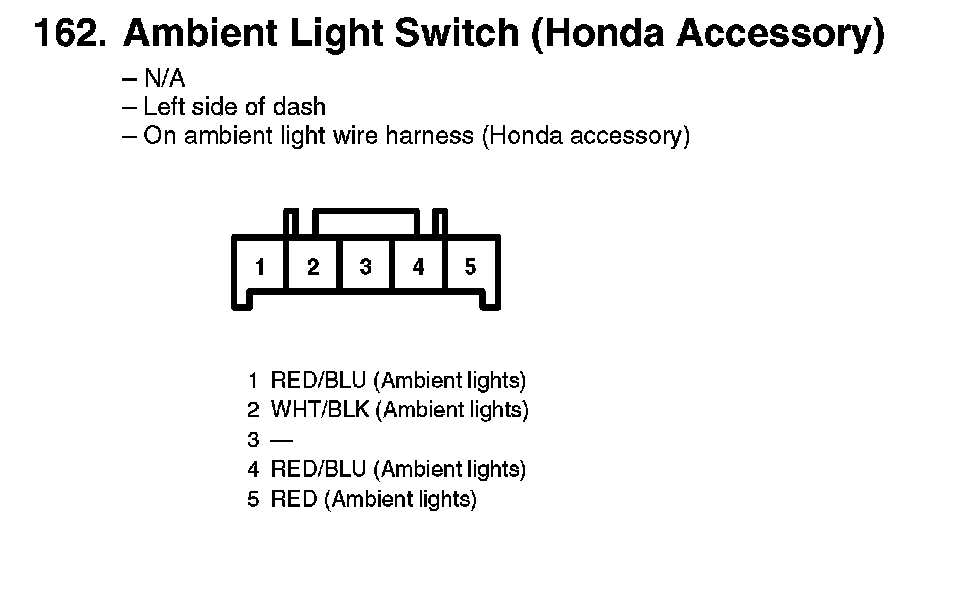

162. Ambient Light Switch (Honda Accessory):
