Fuel Pipe Protector

Fuel Pipe Protector Replacement

NOTE:
- Take care not to scratch the body.
- Put on gloves to protect your hands.

1. Remove the left rear wheel

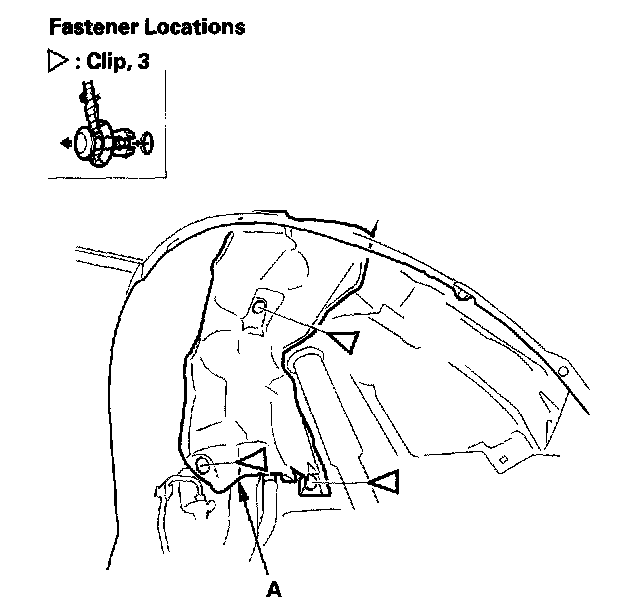

2. Remove the clips, then remove the fuel pipe protector (A).
3. Install the protector in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, replace them with new ones.
- Push the clips into place securely.
