Console: Service and Repair

Center Console Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014*
- Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations, refer to the 2006 Civic Service Manual and the precautions and procedures, refer to the 2006 Civic Service Manual before doing repairs or service.

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the front seat, dashboard, and related parts.

1. Remove the passenger's dashboard undercover.

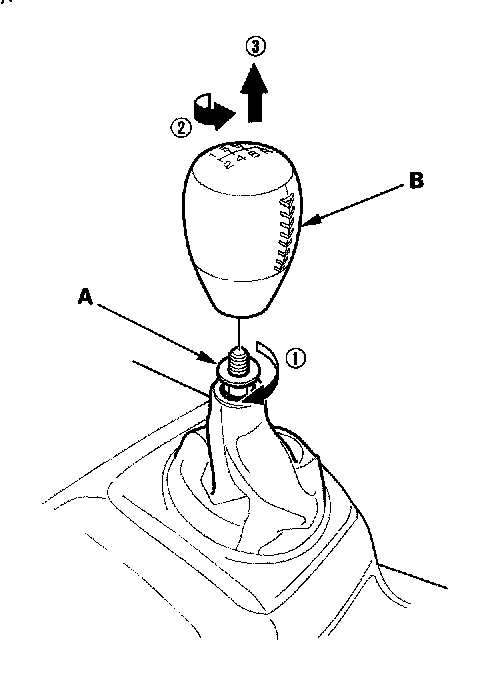

2. Loosen the locknut (A), then remove the shift knob (B).

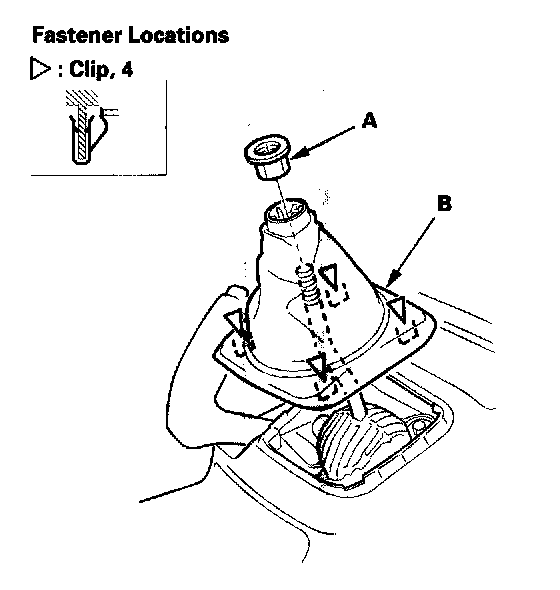

3. Remove the locknut (A). Detach the clips by pulling the front inner panel (B) up.

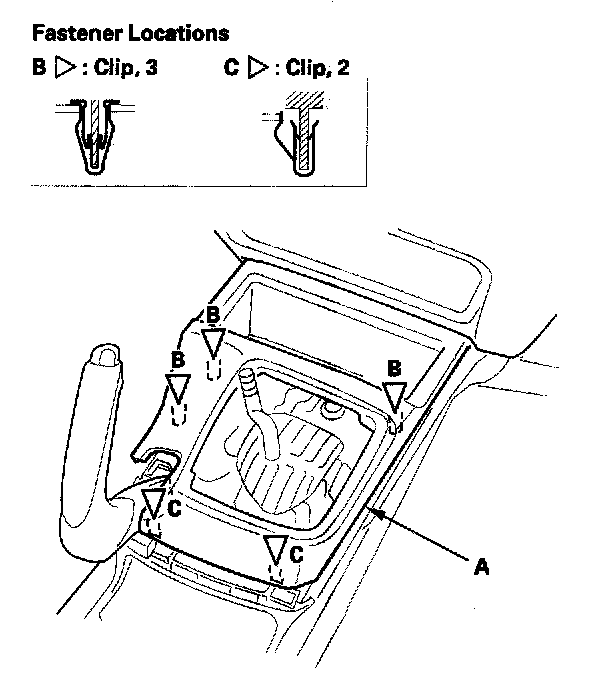

4. Gently pull out along the rear of the center console panel (A) to release the clips (B,C).

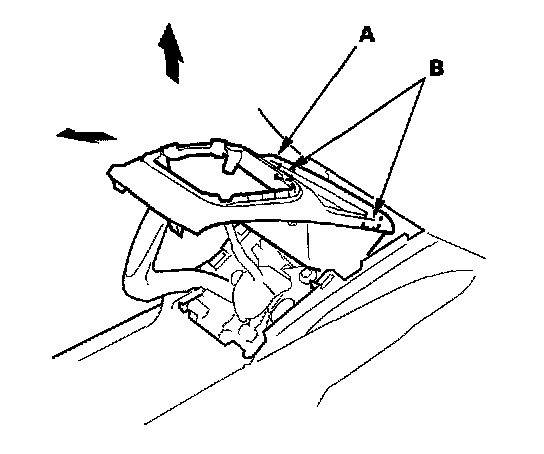

5. Pull the center console panel (A) up and rearward to release the tabs (B).

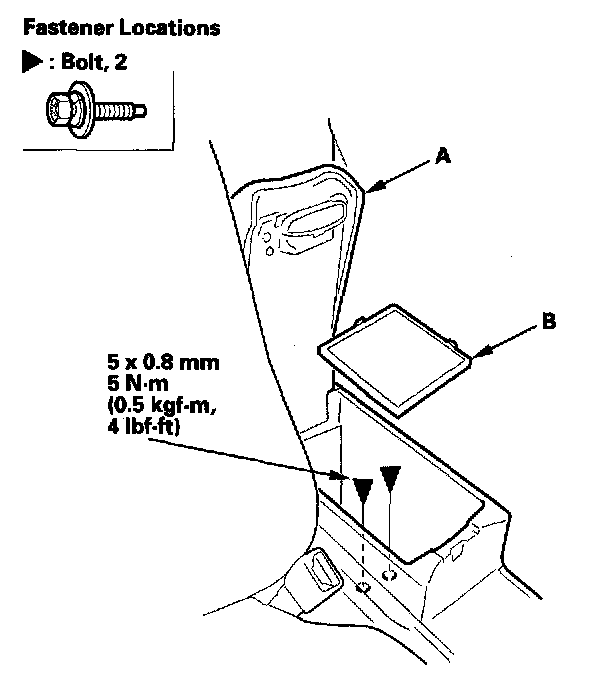

6. Open the armrest (A), then remove the console box mat(B) and bolts.

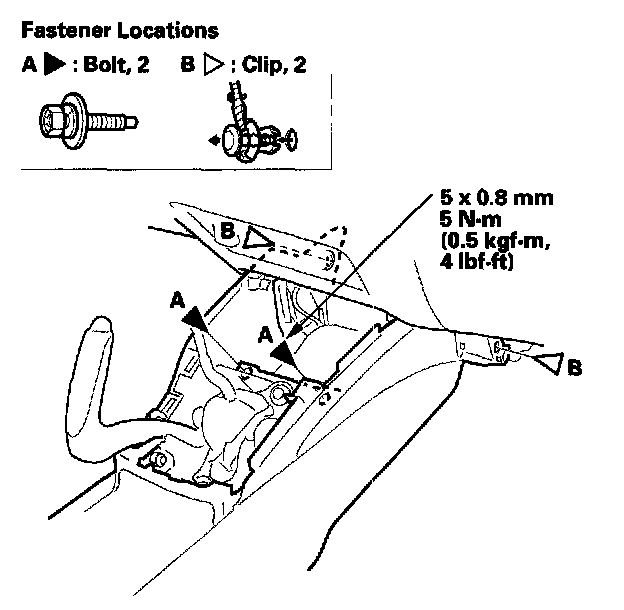

7. From the front portion of the center console, remove the bolts (A) and clips (B).

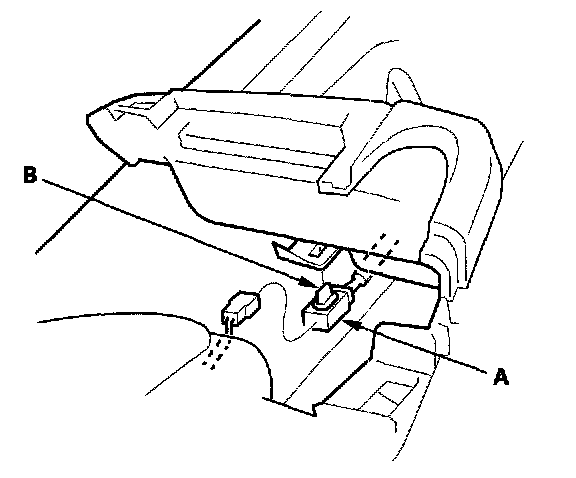

8. Disconnect the console subharness connector (A), then detach the connector clip (B).
9. Slide both front seats all the way back, and recline both the seat-backs fully.

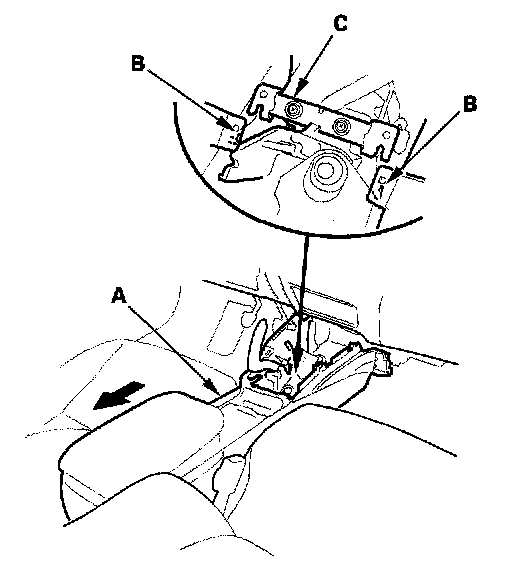

10. Slide the center console (A) rearward to release the pins (B) from the bracket (C).

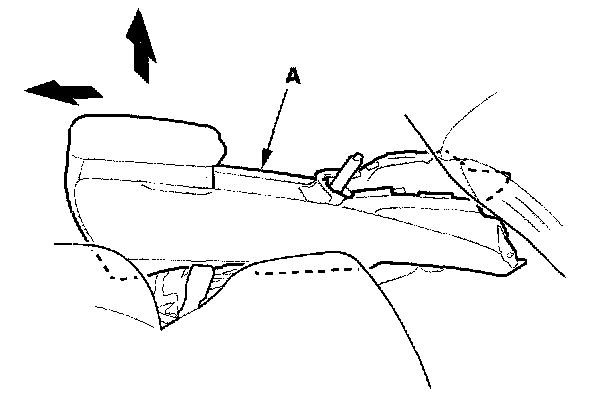

11. Lift up the rear of the console (A), and remove it from the dashboard.




12. Install the console in the reverse order of removal, and note these items:
- Make sure the console subharness connector is plugged in properly.
- Check for damaged or stress-whitened clips, and if necessary, replace them with new ones.
- Push the clips and hooks into place securely.

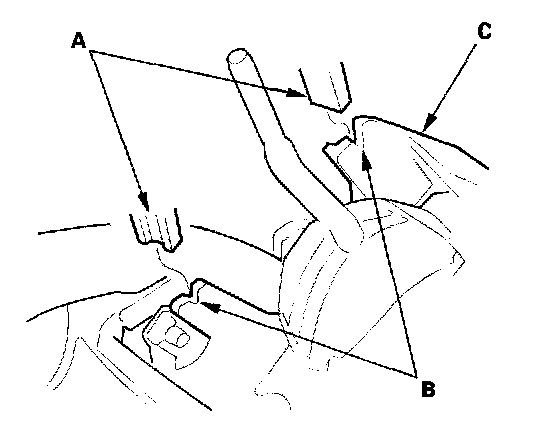

- When installing the center console panel, install the tabs (A) into the notch (B) of the parking brake base frame (C).

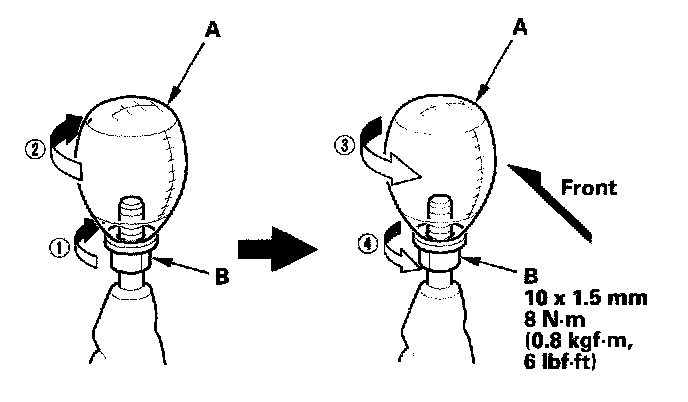

13. Install the shift knob (A).
1. By hand, thread the locknut (B) on to the shaft until it bottoms out on the shaft
2. By hand, thread the shift knob on the shaft.
3. Rotate the shift knob to proper position.
4. Tighten the locknut securely.
