Trunk Area

Trim Removal/Installation - Trunk Area

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program

2-door

NOTE:
- Put on gloves to protect your hands.
- Take care not to bend or scratch the trim and panels.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

1. Fold both rear seat-backs forward.

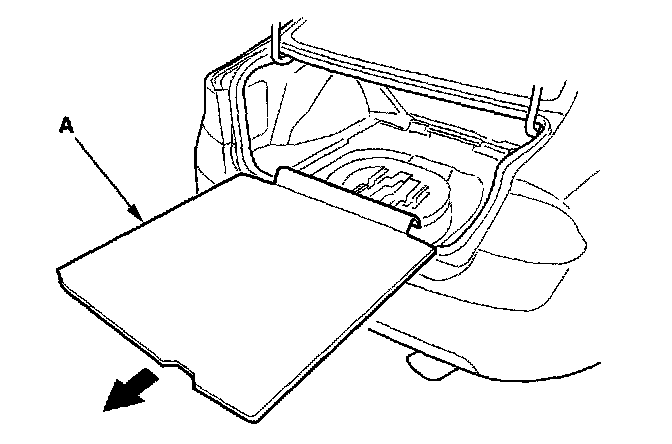

2. Pull back the front portion of the spare tire lid (A), and detach the clips.

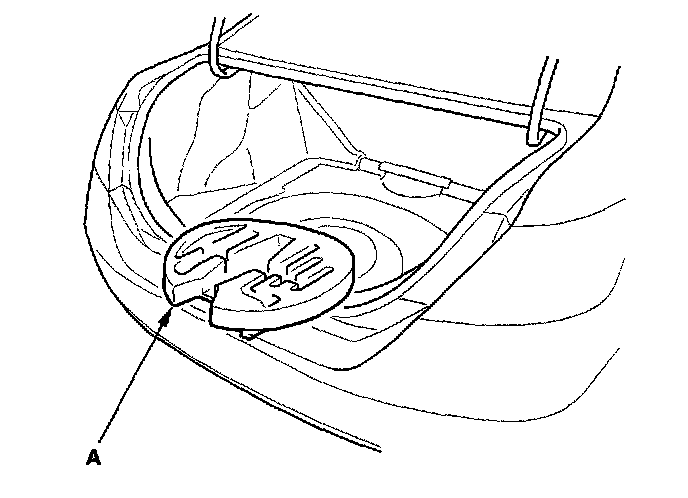

3. Remove the spare tire lid (A).
4. Remove the trunk lip weatherstrip near the trunk rear trim panel.

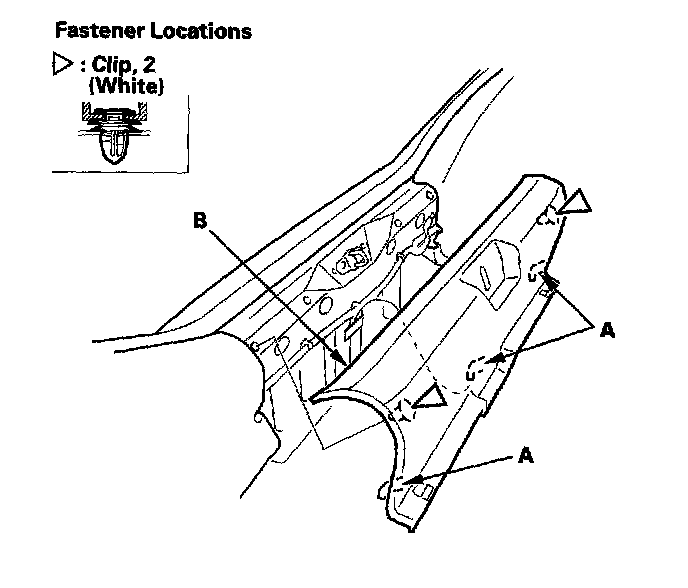

5. Detach the clips, and release the hooks (A) by pulling the trunk rear trim panel (B) up, then remove it.

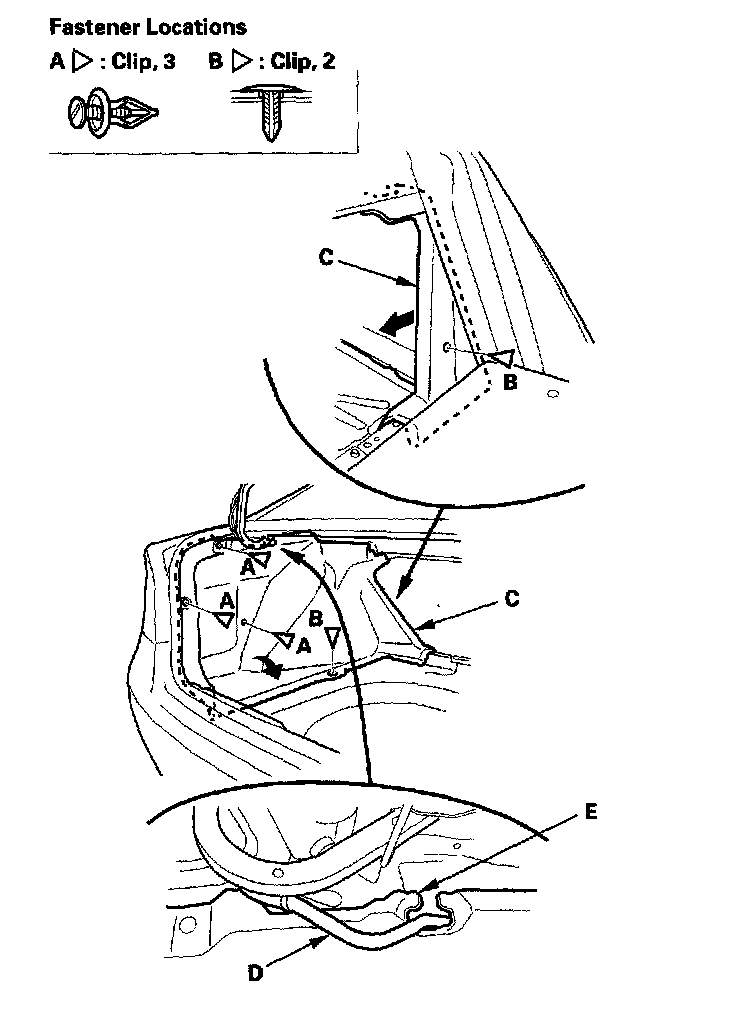

6. Remove the clips (A, B), then remove the trunk side trim panel (C) from the trunk. Release the rear seatback release cable (D) out through the slit (E) in the trim panel.

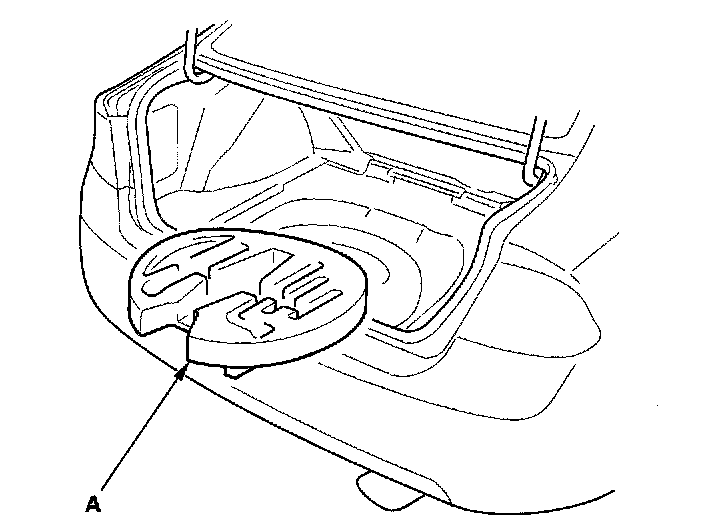

7. If necessary, remove the trunk tool box (A).
8. Install the trim in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and if necessary, replace them with new ones.
- Push the clips into place securely.

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program

4-door

NOTE:
- Put on gloves to protect your hands.
- Take care not to bend or scratch the trim and panels.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

1. Fold the rear seat-back forward.

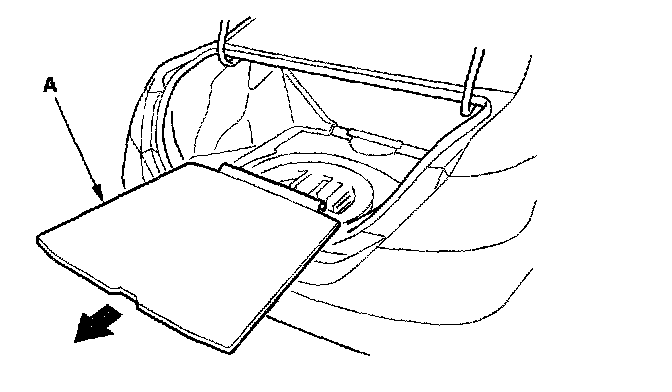

2. Pull back the front portion of the spare tire lid (A), and detach the clips.

3. Remove the spare tire lid (A).
4. Remove the trunk lid weatherstrip near the trunk rear trim panel.

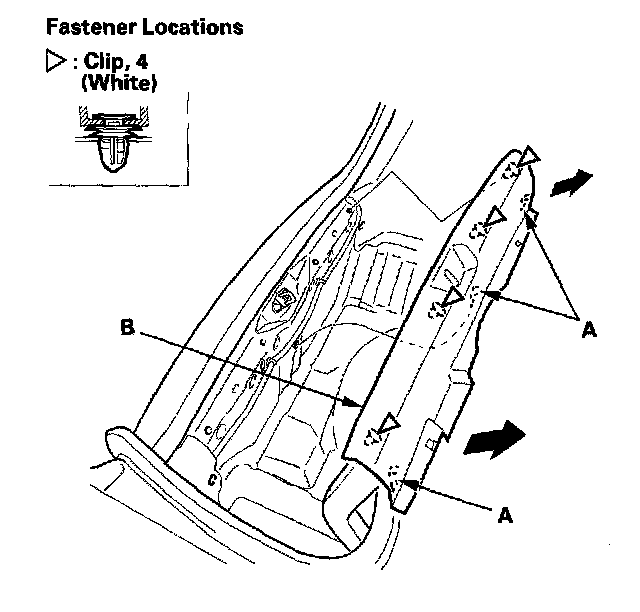

5. Detach the clips, and release the hooks (A) by pulling the trunk rear trim panel (B) up, then remove it.

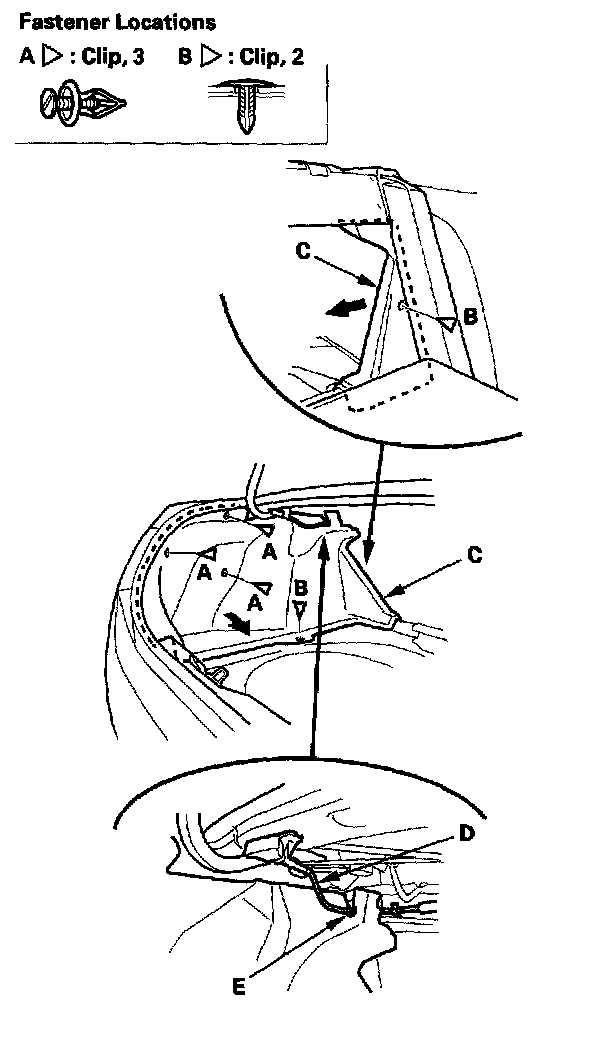

6. Remove the clips (A, B), then remove the trunk side trim panel (C). Release the wire harness (D) from the slit (E) in the trim panel.
