Front Door Weatherstrip: Service and Repair

Front Door Weatherstrip Replacement

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the door.
- Use a clip remover to remove the clips.

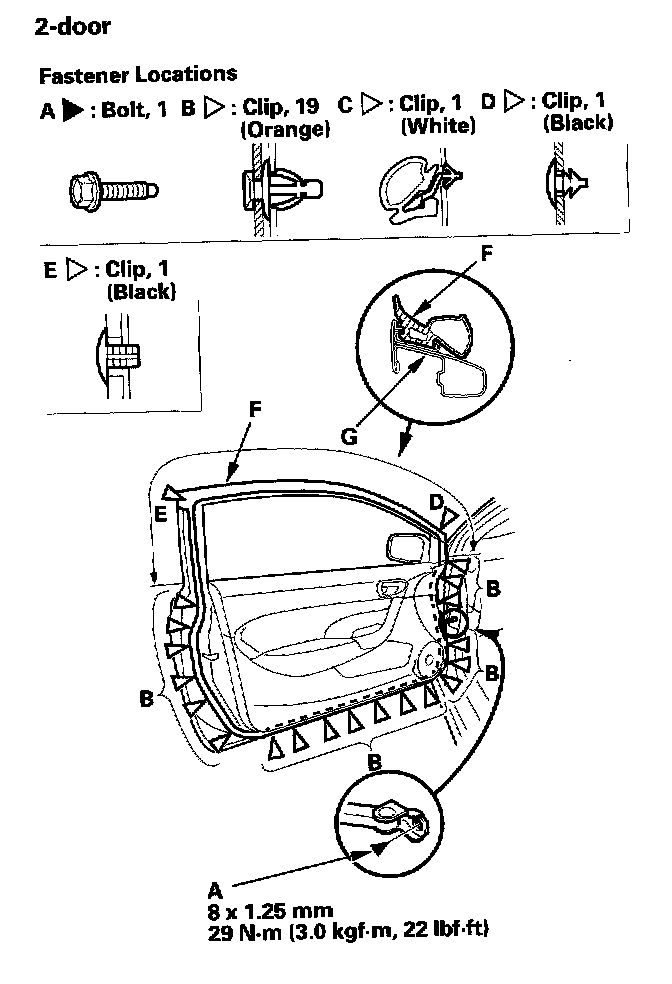

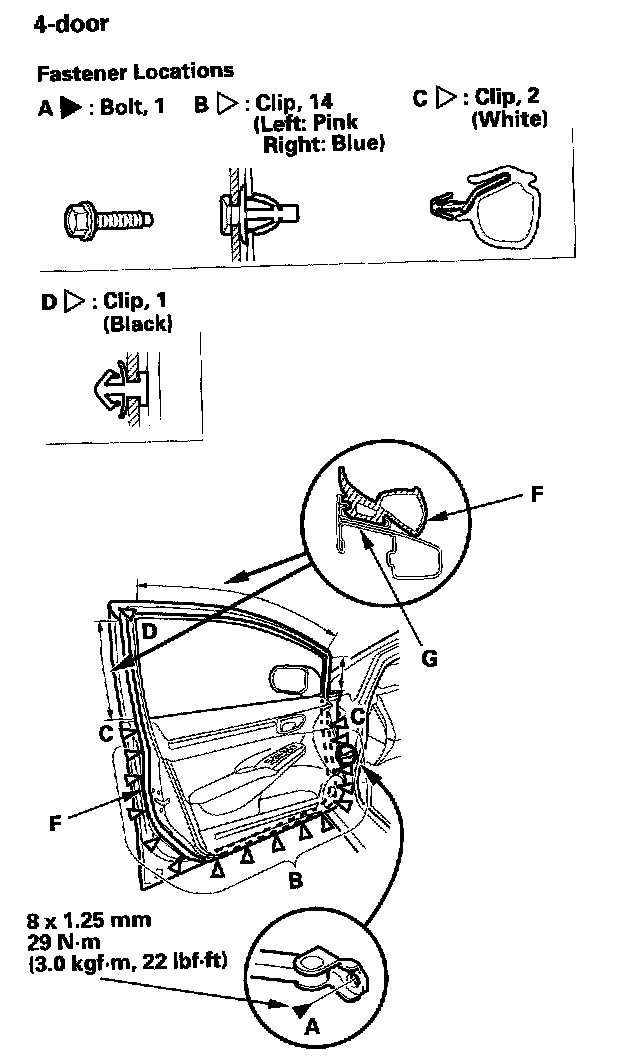

1. At the A-pillar, remove the door checker mounting bolt (A).
2. Detach the clips (B, C, D, E), then remove the door weatherstrip (F).
3. Install the weatherstrip in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and if necessary, replace them with new ones.
- Make sure the weatherstrip is installed in the holder (G) securely.
- Apply medium strength type liquid thread lock to door checker mounting bolt before installation.
- Check for water leaks.
