Start-Up Procedure and Diagnostic Menu

Start-up procedure and Diagnosis Menu




1. Turn the ignition switch to the ON (II) position.

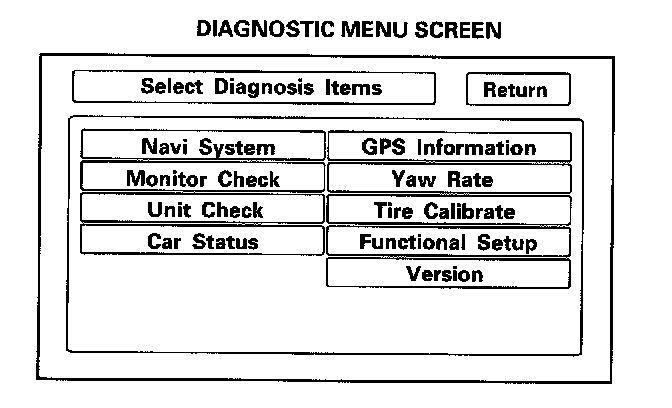

Press and hold Menu, Map/Guide, and Cancel buttons. Keep them pressed for approximately 3 seconds. The display screen then goes directly to the Diagnostic Menu.
2. After the display changes to the Diagnostic Menu, select the item you want to check, and the test will begin. To return to the previous screen, select "Return".
- Navi System (Link)
- Monitor Check
- Unit Check
- Car Status
- GPS Information
- Yaw Rate
- Tire Calibrate
- Functional Setup
- Version
