Component Tests and General Diagnostics

Voice Control Switch Test

4-door model

1. Remove the driver's airbag assembly.

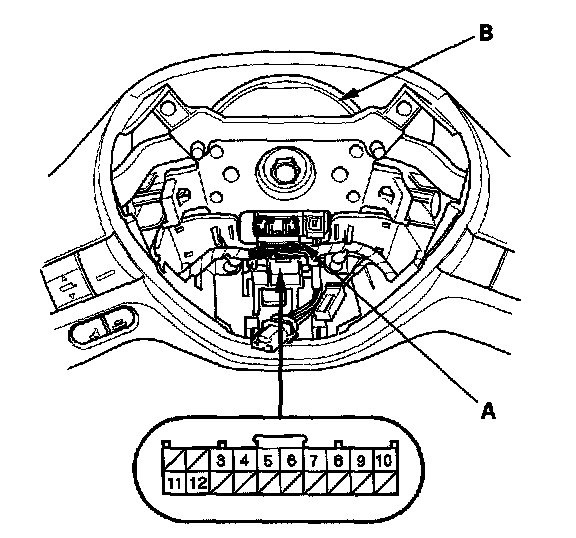

2. Remove the 20P connector (A) from the cable reel (B).

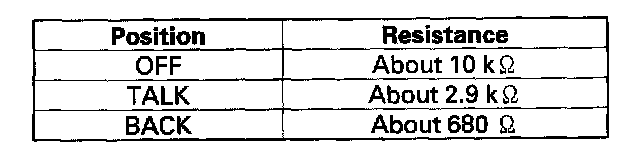

3. Measure the resistance between the No. Sand No. 10 terminals in each switch position according to the table.
4. If the resistance is not as specified, replace the voice control switch.

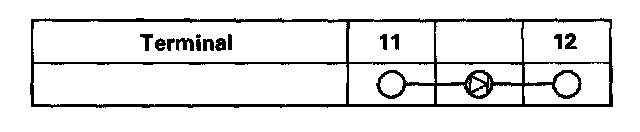

5. Use a diode tester between the terminals in each switch position according to the table.
6. If the diode test is bad, replace the switch.

2-door model




1. Remove the voice control switch.

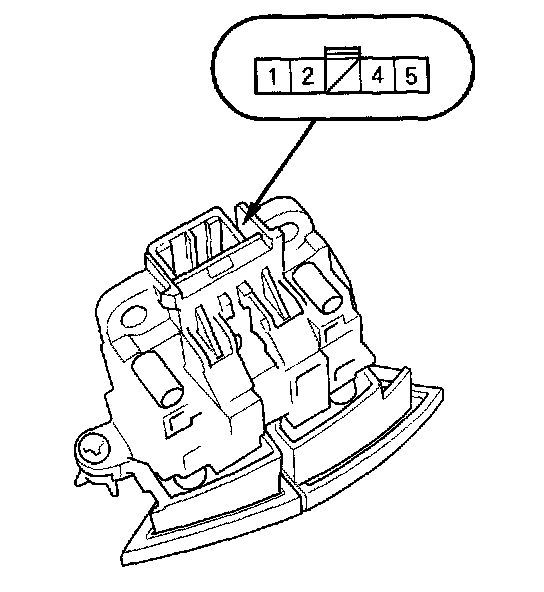

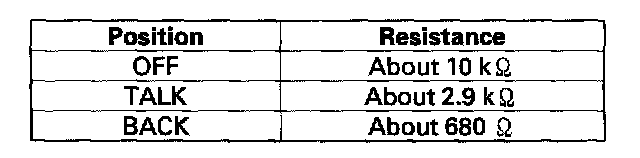

2. Measure the resistance between the No. 2 and No. 4 terminals in each switch position according to the table.
3. If the resistance is not as specified, replace the voice control switch.

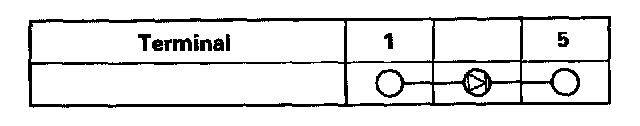

4. Use a diode tester between the terminals in each switch position according to the table.
5. If the diode test is bad, replace the switch.
