Door Key Cylinder Switch Test
Door Key Cylinder Switch Test1. Remove the driver's door panel.
- 2-door.
- 4-door.

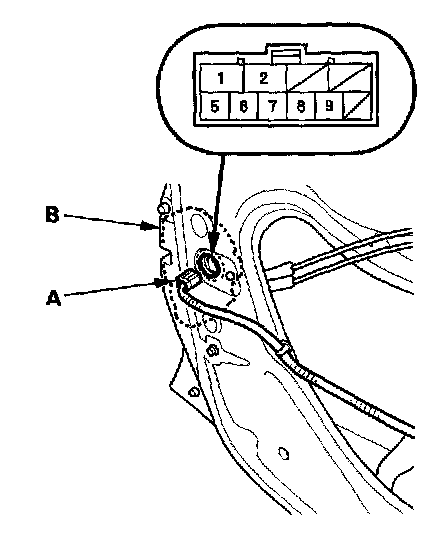

2. Disconnect the 10P connector (A) from the key cylinder switch (B).
3. Check for continuity between the terminals.
- There should be continuity between the No. 9 and No. 5 terminals when the door key cylinder switch is in LOCK position. (With security)
- There should be no continuity between the No. 9 and No. 5 terminals when the door key cylinder switch is in the neutral or UNLOCK position. (With security)
- There should be continuity between the No. 8 and No. 5 terminals when the door key cylinder switch is in UNLOCK position.
- There should be no continuity between the No. 8 and No. 5 terminals when the door key cylinder switch is in the neutral or LOCK position.
4. If the continuity is not as specified, replace the door key cylinder assembly.
