P1297

DTC P1297: ELD Circuit Low Voltage

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information.

1. Turn the ignition switch ON (II).
2. Check the ELD in the DATA LIST with the HDS.

Is 72 A or more indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the ELD and the ECM.

3. Turn the ignition switch OFF.
4. Disconnect the ELD 3P connector.
5. Turn the ignition switch ON (II).
6. Check the ELD in the DATA LIST with the HDS.

Is 72 A or more indicated?

YES - Go to step 7.

NO - Go to step 11.

7. Turn the ignition switch OFF.
8. Jump the SCS line with the HDS.
9. Disconnect ECM connector A (44P).

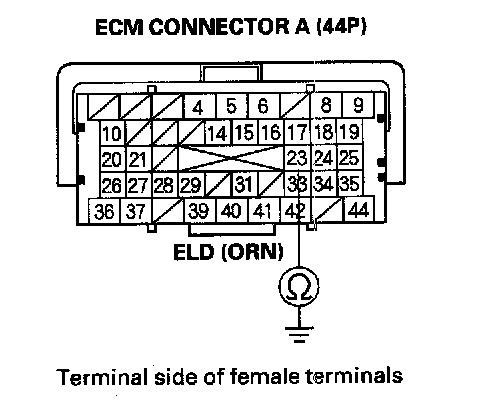

10. Check for continuity between ECM connector terminal A23 and body ground.

Is there continuity?

YES - Repair short in the wire between the ECM (A23) and the ELD, then go to step 13.

NO - Go to step 20.

11. Turn the ignition switch OFF.
12. Replace the ELD.
13. Reconnect all connectors.
14. Turn the ignition switch ON (II).
15. Reset the ECM with the HDS.
16. Do the ECM idle learn procedure.
17. Start the engine.
18. Turn on the headlights.
19. Check for Temporary DTCs or DTCs with the HDS.

Are any Temporary DTCs or DTCs indicated?

YES - If DTC P1297 is indicated, check for poor connections or loose terminals at the ELD and the ECM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.

NO - Troubleshooting is complete.

20. Update the ECM if it does not have the latest software, or substitute a known-good ECM.
21. Start the engine.
22. Turn on the headlights.
23. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P1297 indicated?

YES - Check for poor connections or loose terminals at the ELD and the ECM. If the ECM was updated, substitute a known-good ECM, then go to step 21. If the ECM was substituted, go to step 1.

NO - If the ECM was updated, troubleshooting is complete. If the ECM was substituted, replace the original ECM. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.
