P0010
DTC P0010: VTC Oil Control Solenoid Valve MalfunctionNOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information.
1. Turn the ignition switch ON (II).
2. Clear the DTC with the HDS.
3. Start the engine. Hold the engine speed at 3,000 rpm without load (in neutral) until the radiator fan comes on, then let it idle.
4. Do the VTC TEST in the INSPECTION MENU with the HDS.
5. Check for Temporary DTCs or DTCs with the HDS.
Is DTC P0010 indicated?
YES - Go to step 6.
NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the VTC oil control solenoid valve and the ECM.
6. Turn the ignition switch OFF.
7. Disconnect the VTC oil control solenoid valve 2P connector.

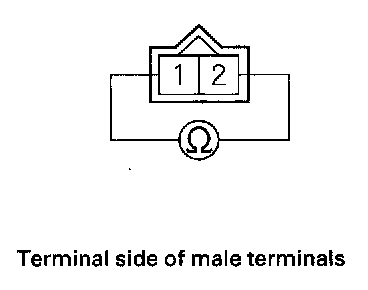

8. Measure resistance between VTC oil control solenoid valve 2P connector terminals No. 1 and No. 2.
Is there 6.75 - 8.25 Ohm at room temperature?
YES - Go to step 9.
NO - Go to step 14.

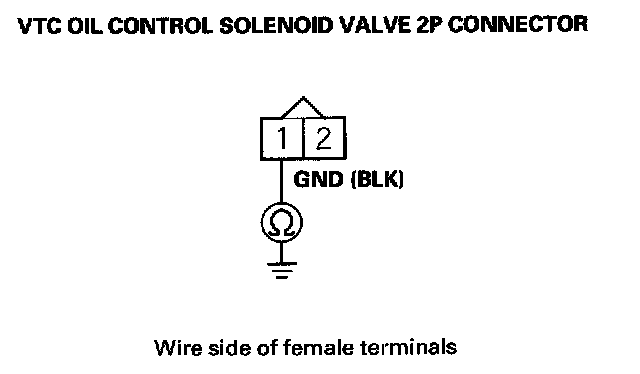

9. Check for continuity between VTC oil control solenoid valve 2P connector terminal No. 1 and body ground.
Is there continuity?
YES - Go to step 10.
NO - Repair open in the wire between the VTC oil control solenoid valve and G101, then go to step 15.
10. Jump the SCS line with the HDS.
11. Disconnect ECM connector C (44P).

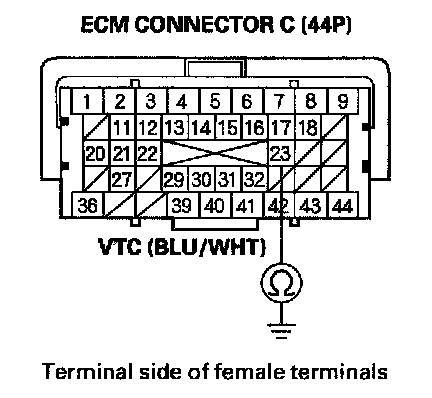

12. Check for continuity between ECM connector terminal C23 and body ground.
Is there continuity?
YES - Repair short in the wire between the ECM (C23) and the VTC oil control solenoid valve, then go to step 15.
NO - Go to step 13.

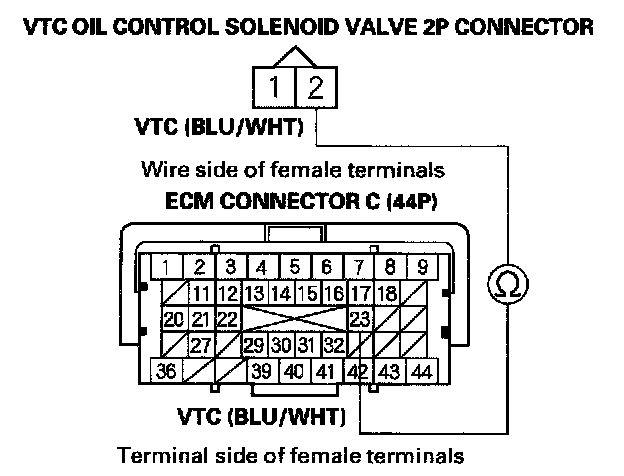

13. Check for continuity between VTC oil control solenoid valve 2P connector terminal No. 2 and ECM connector terminal C23.
Is there continuity?
YES - Go to step 22.
NO - Repair open in the wire between the ECM (C23) and the VTC oil control solenoid valve, then go to step 15.
14. Replace the VTC oil control solenoid valve.
15. Reconnect all connectors.
16. Turn the ignition switch ON (II).
17. Reset the ECM with the HDS.
18. Do the ECM idle learn procedure.
19. Do the VTC TEST in the INSPECTION MENU with the HDS.
20. Check for Temporary DTCs or DTCs with the HDS.
Are any Temporary DTCs or DTCs indicated?
YES - If DTC P0010 is indicated, check for poor connections or loose terminals at the VTC oil control solenoid valve and the ECM, then go to step 1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.
NO - Go to step 21.
21. Monitor the OBD STATUS for DTC P0010 in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES - Troubleshooting is complete.
NO - If the screen indicates FAILED, check for poor connections or loose terminals at the VTC oil control solenoid valve and the ECM, then go to step 1. If the screen indicates NOT COMPLETED, go to step 19 and recheck.
22. Update the ECM if it does not have the latest software, or substitute a known-good ECM.
23. Do the VTC TEST in the INSPECTION MENU with the HDS.
24. Check for Temporary DTCs or DTCs with the HDS.
Is DTC P0010 indicated?
YES - Check for poor connections or loose terminals at the VTC oil control solenoid valve and the ECM. If the ECM was updated, substitute a known-good ECM, then go to step 23. If the ECM was substituted, go to step 1.
NO - If no Temporary DTCs or DTCs are indicated, go to step 25. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.
25. Monitor the OBD STATUS for DTC P0010 in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES - If the ECM was updated, troubleshooting is complete. If the ECM was substituted, replace the original ECM.
NO - If the screen indicates FAILED, check for poor connections or loose terminals at the VTC oil control solenoid valve and the ECM. If the ECM was updated, substitute a known-good ECM, then go to step 23. If the ECM was substituted, go to step 1. If the screen indicates NOT COMPLETED, let the engine idle until a result comes on.
