DTC 43-1x

DTC 43-1x (43-10 to 43-19, 43-1A to 43-1F): No Signal from the Left Side Impact Sensor (first)

Special Tools Required
- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead L 070AZ-SNA0300

1. Erase the DTC memory.
2. Turn the ignition switch ON (II), and wait for 10 seconds.
3. Read the DTC.

Is DTC 43-11 indicated?

YES - Go to step 6.

NO - Go to step 4.

4. Read the DTC.

Is DTC 43-12 indicated?

YES - Go to step 5.

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Diagnostic Strategies If DTC 43-ix except DTC 43-11 and 43-12 is indicated, faulty left side impact sensor (first); replace the left side impact sensor (first).

5. Read the DTC.

Is DTC B2-11 also indicated?

YES - Go to the DTC troubleshooting, DTC B2-1x.

NO - Faulty left side impact sensor (first); replace the left side impact sensor (first).

6. Read the DTC.

Is DTC 45-11 also indicated?

YES - Faulty left side impact sensor (first); replace the left side impact sensor (first).

NO - Go to step 7.

7. Turn the ignition switch OFF,
8. Disconnect the negative cable from the battery, and wait for 3 minutes.
9. Disconnect both seat belt tensioner connectors and both seat belt buckle tensioner connectors.

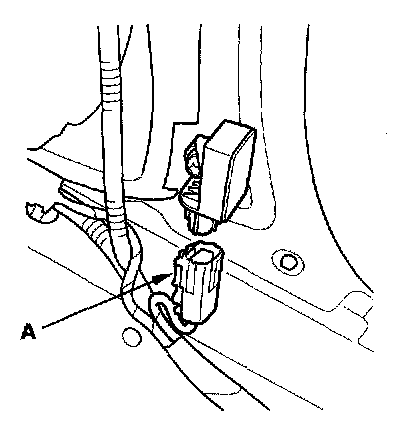

10. Disconnect the floor wire harness 4P connector (A) from the left side impact sensor (first).
11. Disconnect SRS unit connector B (28P) from the SRS unit.

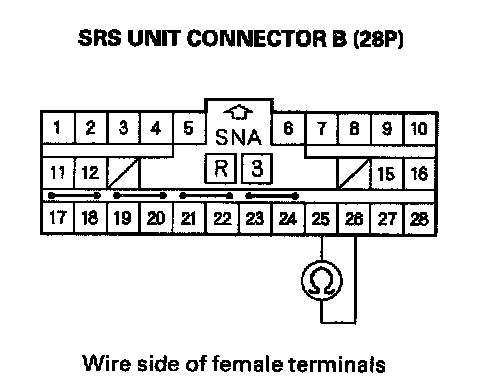

12. Check resistance between the No. 25 and No. 26 terminals of SRS unit connector B (28P). There should be an open circuit or at least 1 MOhm.

Is the resistance as specified?

YES - Go to step 13.

NO - Short in the floor wire harness; replace the floor wire harness.

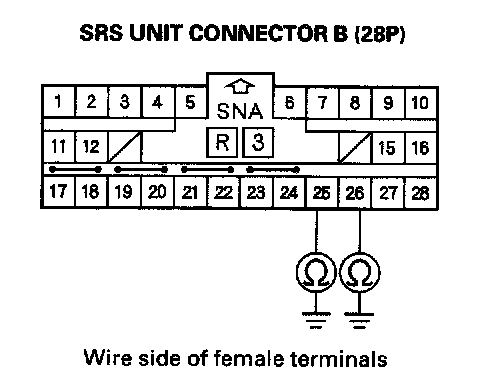

13. Check resistance between the No. 25 terminal of SRS unit connector B (28P) and body ground, and between the No. 26 terminal and body ground. There should be an open circuit or at least 1 MOhm.

Is the resistance as specified?

YES - Go to step 14.

NO - Short to ground in the floor wire harness; replace the floor wire harness.

14. Reconnect the negative cable to the battery.
15. Turn the ignition switch ON (II).

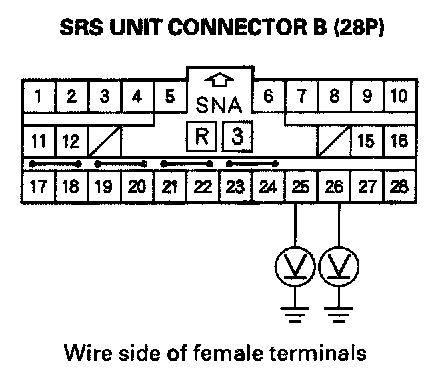

16. Check for voltage between the No. 25 terminal of SRS unit connector B (28P) and body ground, and between the No. 26 terminal and body ground. There should be 1 V or less.

Is the voltage as specified?

YES - Go to step 17.

NO - Short to power in the floor wire harness; replace the floor wire harness.

17. Turn the ignition switch OFF.

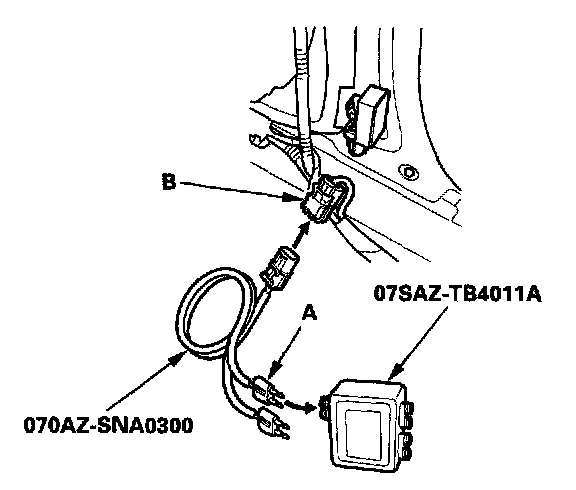

18. Connect the SRS inflator simulator (jumper connector) and the black lead (A) of simulator lead L to the left side impact sensor 4P connector (B).




19. Check resistance between the No. 25 and No. 26 terminals of SRS unit connector B (28P). There should be 0 - 1.0 Ohm.

Is the resistance as specified?

YES - Faulty left side impact sensor (first) or SRS unit; replace the left side impact sensor (first). If the problem is still present, replace the SRS unit.

NO - Open in the floor wire harness; replace the floor wire harness.
