DTC 27-9x
DTC 27-9x (27-90 to 27-99,27-9A to 27-9F): Short to Ground in Driver's Seat Belt Buckle TensionerSpecial Tools Required
- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead K 070AZ-SNA0200
1. Erase the DTC memory.
2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
Does the SRS indicator stay on, and is DTC 27-9x indicated?
YES - Go to step 3,
NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Diagnostic Strategies If another DTC is indicated, go to the DTC Troubleshooting Index. DTC List - Supplemental Restraint System
3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

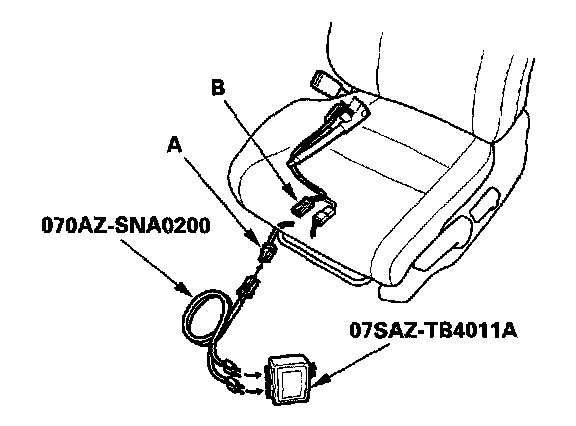

4. Disconnect the floor wire harness 4P connector (A) from the driver's seat belt buckle tensioner connector (B).
5. Connect the SRS inflator simulator (2 Ohms connectors) and simulator lead K to the floor wire harness connector.
6. Reconnect the negative cable to the battery.
7. Erase the DTC memory.
8. Read the DTC.
Is DTC 27-9x indicated?
YES - Go to step 9.
NO - Short to ground in the driver's seat belt buckle tensioner; replace the driver's seat belt buckle.
9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.
10. Disconnect both seat belt tensioner 4P connectors and the front passenger's seat belt buckle tensioner 4P connector.
11. Disconnect SRS unit connector B (28P) from the SRS unit.
12. Disconnect the simulator lead from the floor wire harness.

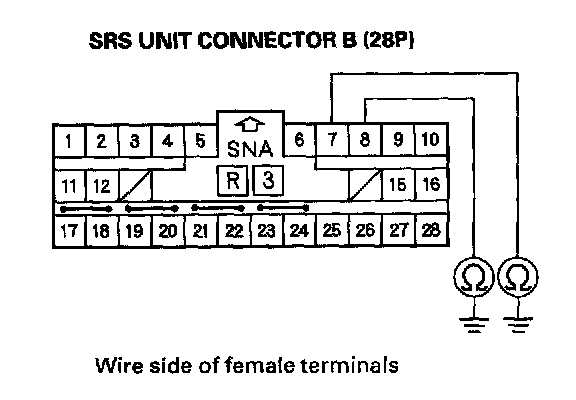

13. Check resistance between the No. 7 terminal of SRS unit connector B (28P) and body ground, and the No. 8 terminal and body ground. There should be an open circuit or at least 1 MOhm.
Is the resistance as specified?
YES - Faulty SRS unit or poor connection at SRS unit connector B (28P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit.
NO - Short to ground in the floor wire harness; replace the floor wire harness.
