Home >> Honda >> 2006 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Design Specifications

Design Specifications

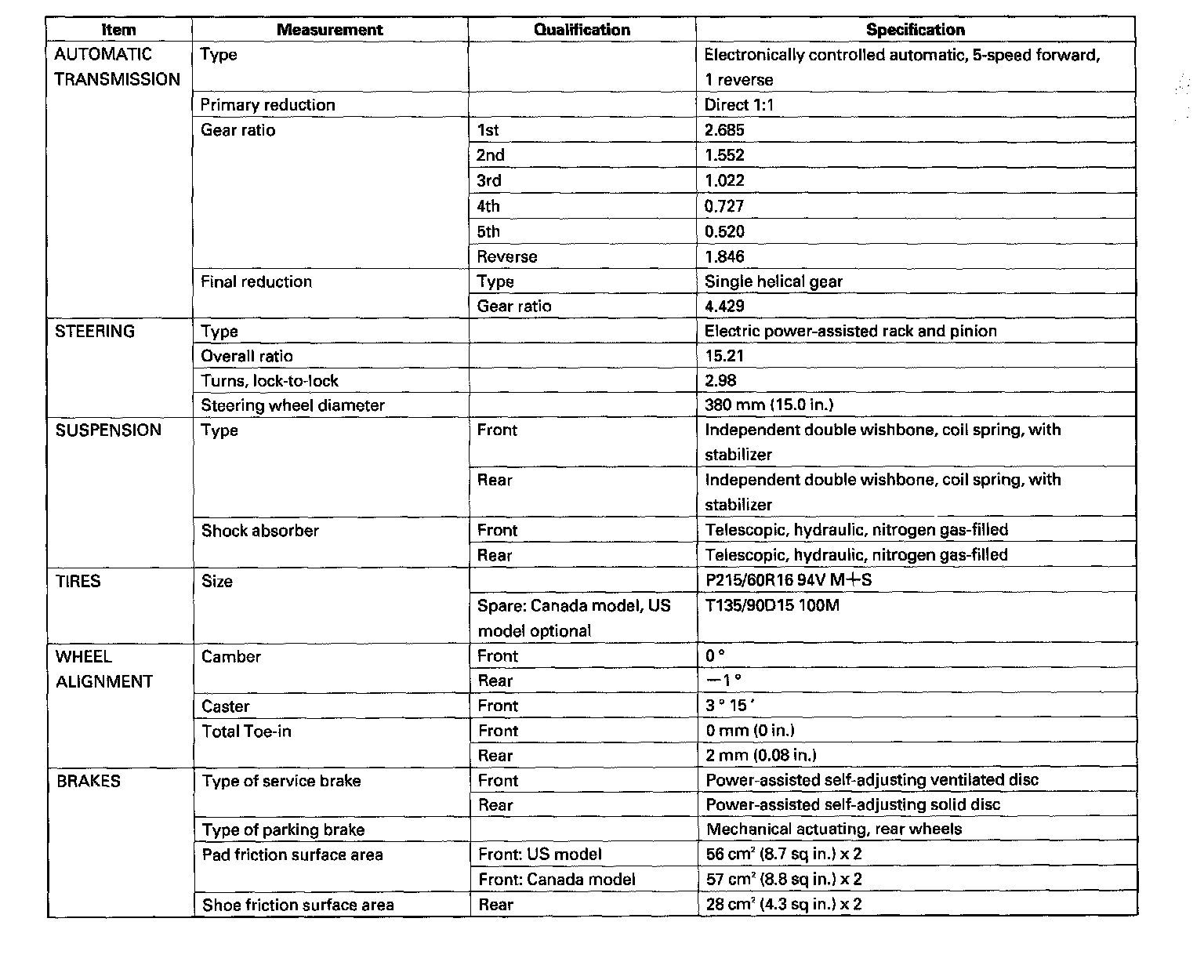

Design Specifications Part 1:

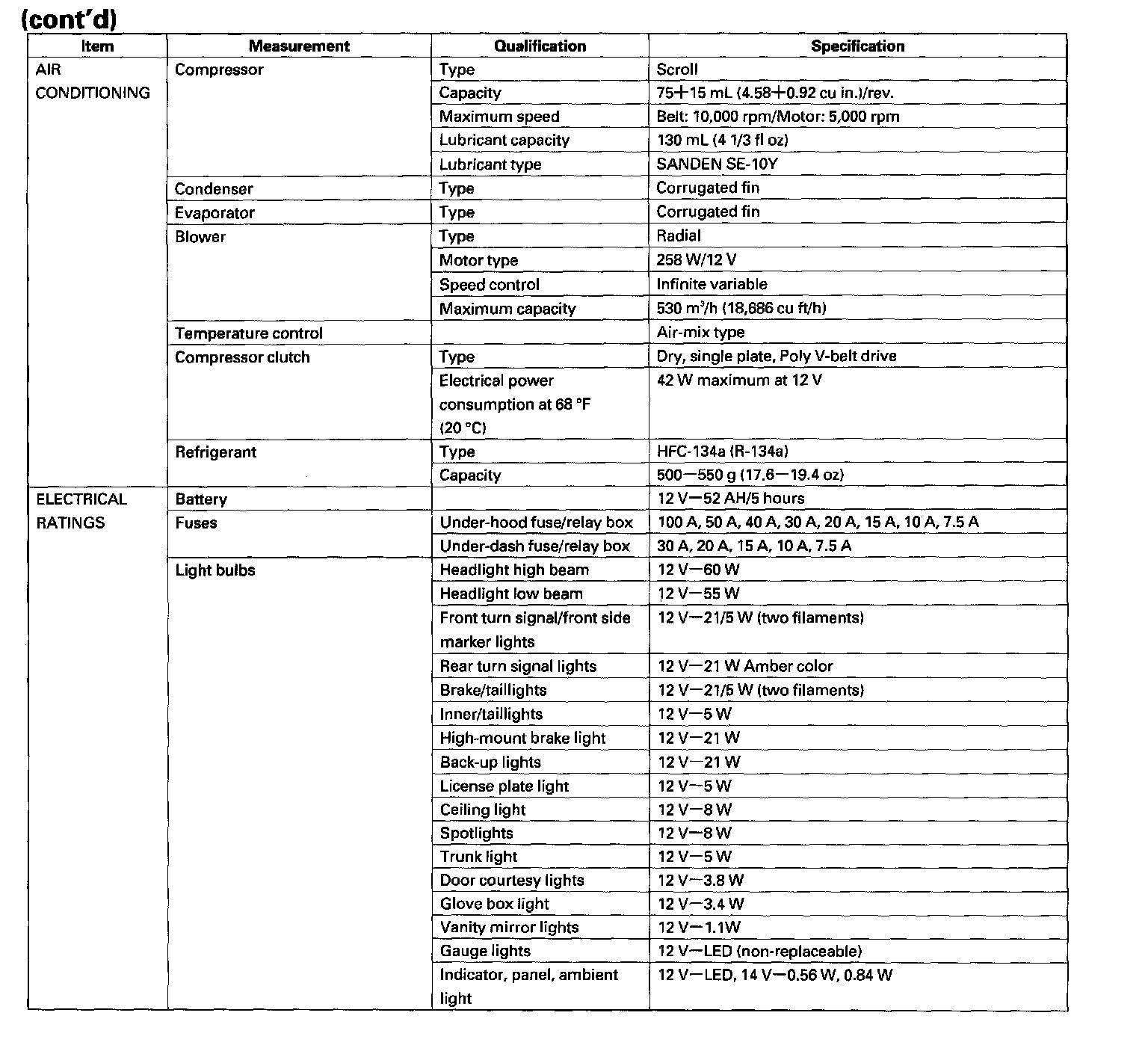

Design Specifications Part 2:

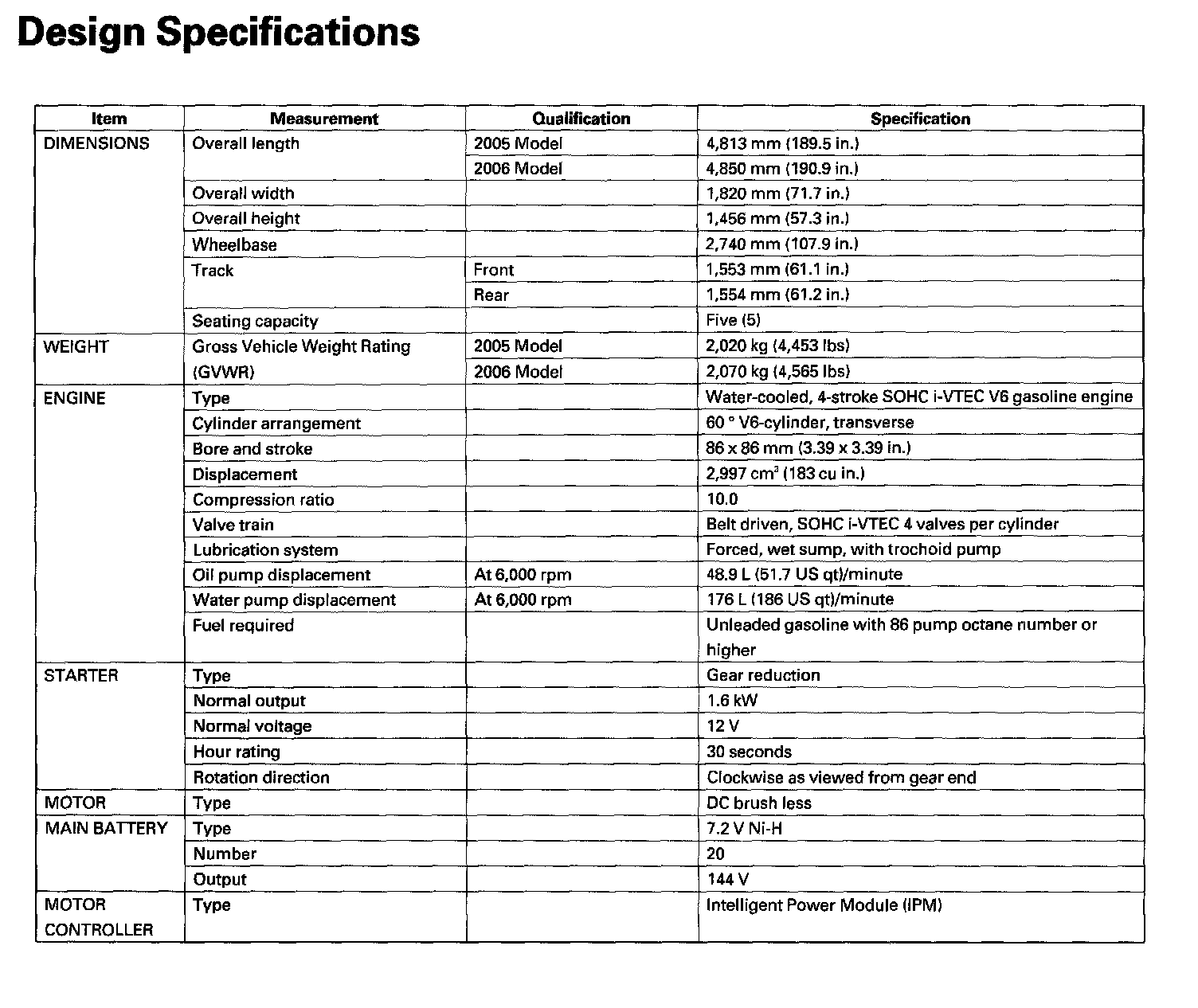

Design Specifications Part 3:
