Variable Valve Timing Solenoid: Service and Repair

Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Replacement

1. Remove the intake manifold cover.

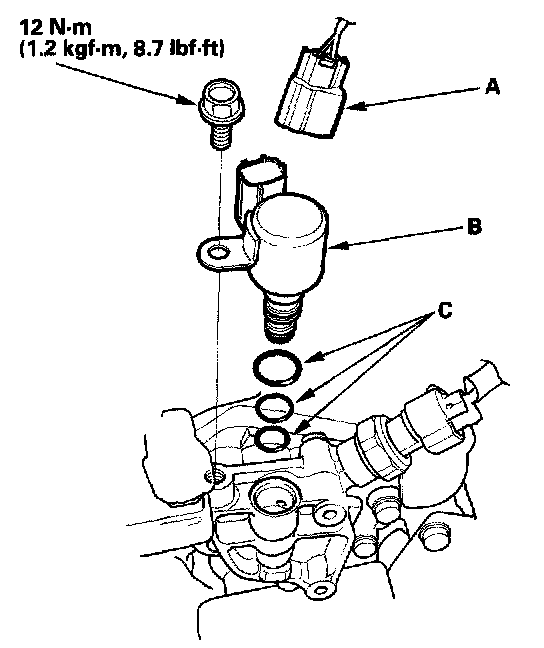

2. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) 2P connector (A).
3. Remove the rocker arm oil control solenoid (VTEC solenoid valve) (B).
4. Install the rocker arm oil control solenoid (VTEC solenoid valve) in the reverse order of removal with new O-rings (C).
