Information Bus: Locations

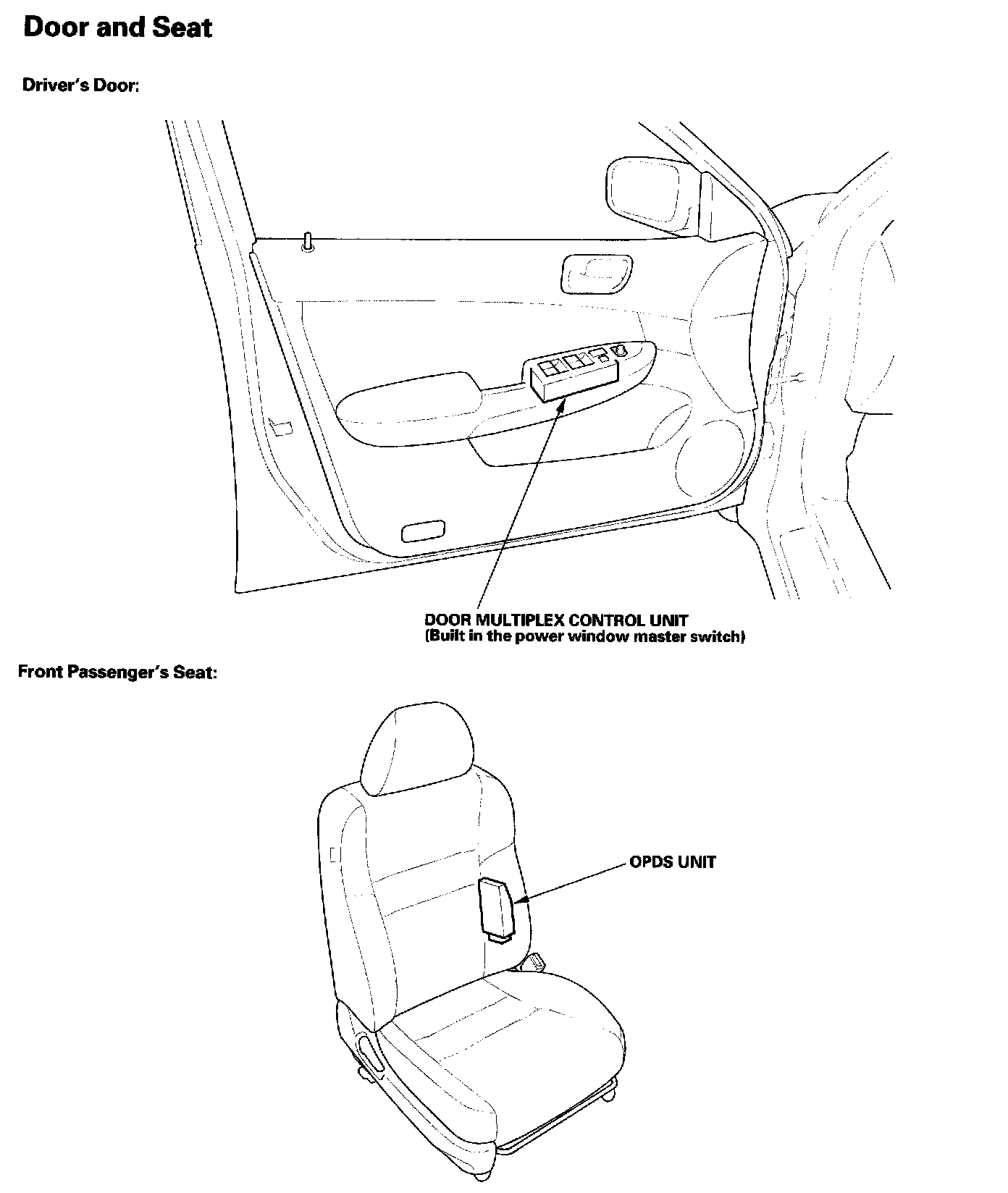

128. Driver's Door:

Relay And Control Unit Locations - Door And Seat:

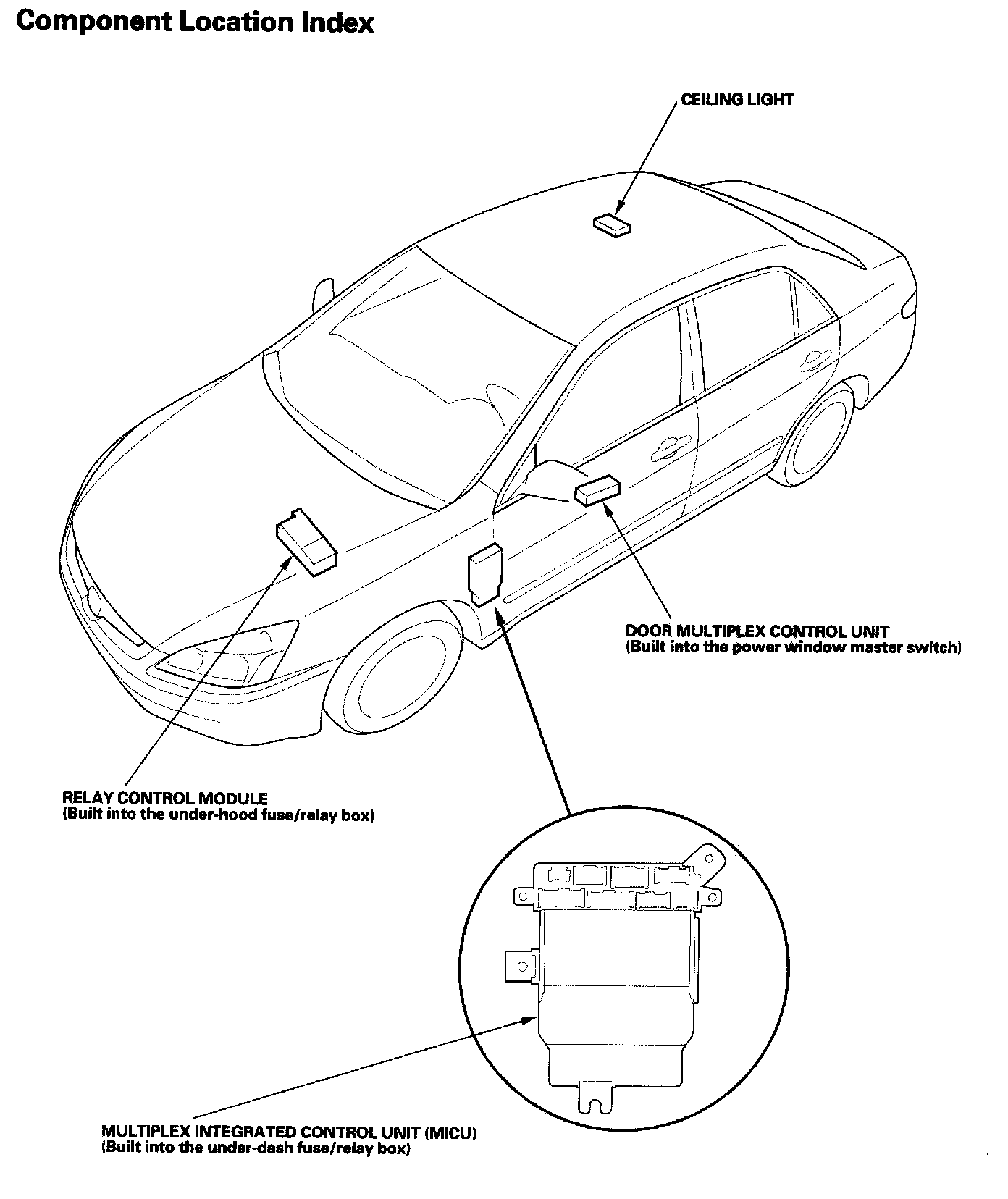

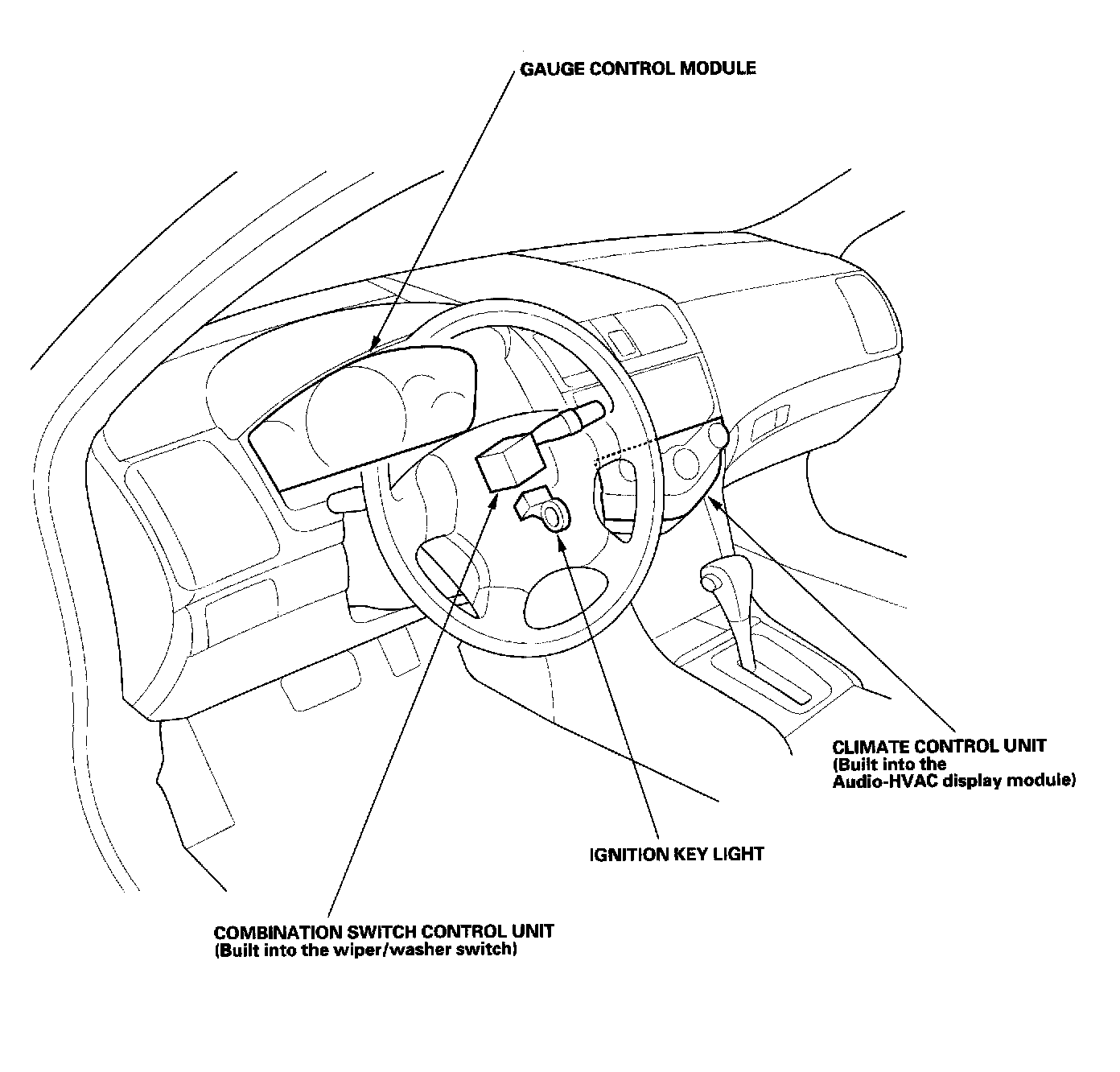

Multiplex Integrated Control System (MICS) - Component Location Index:

Multiplex Integrated Control System (MICS) - Component Location Index:

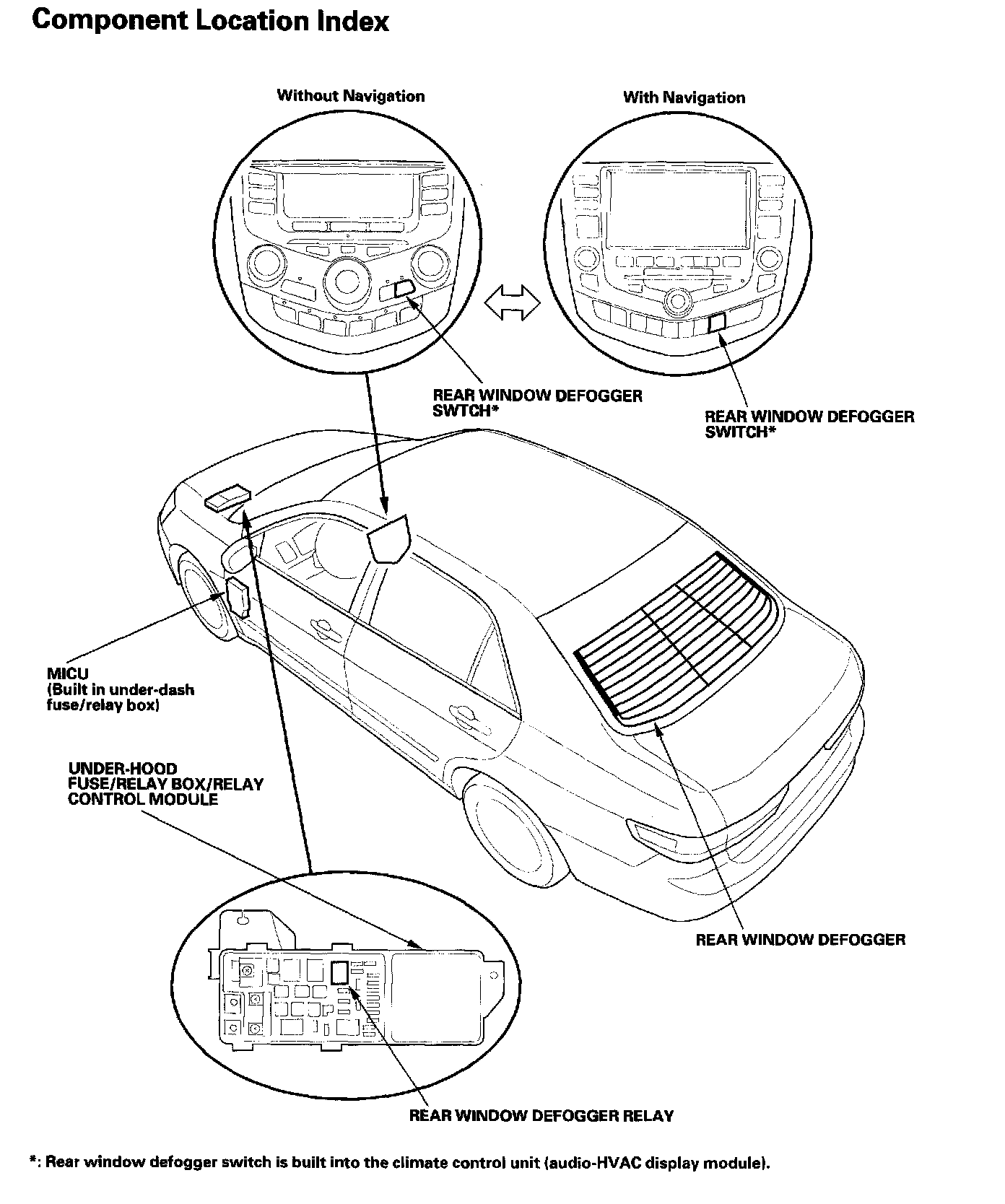

Rear Window Defogger - Component Location Index:

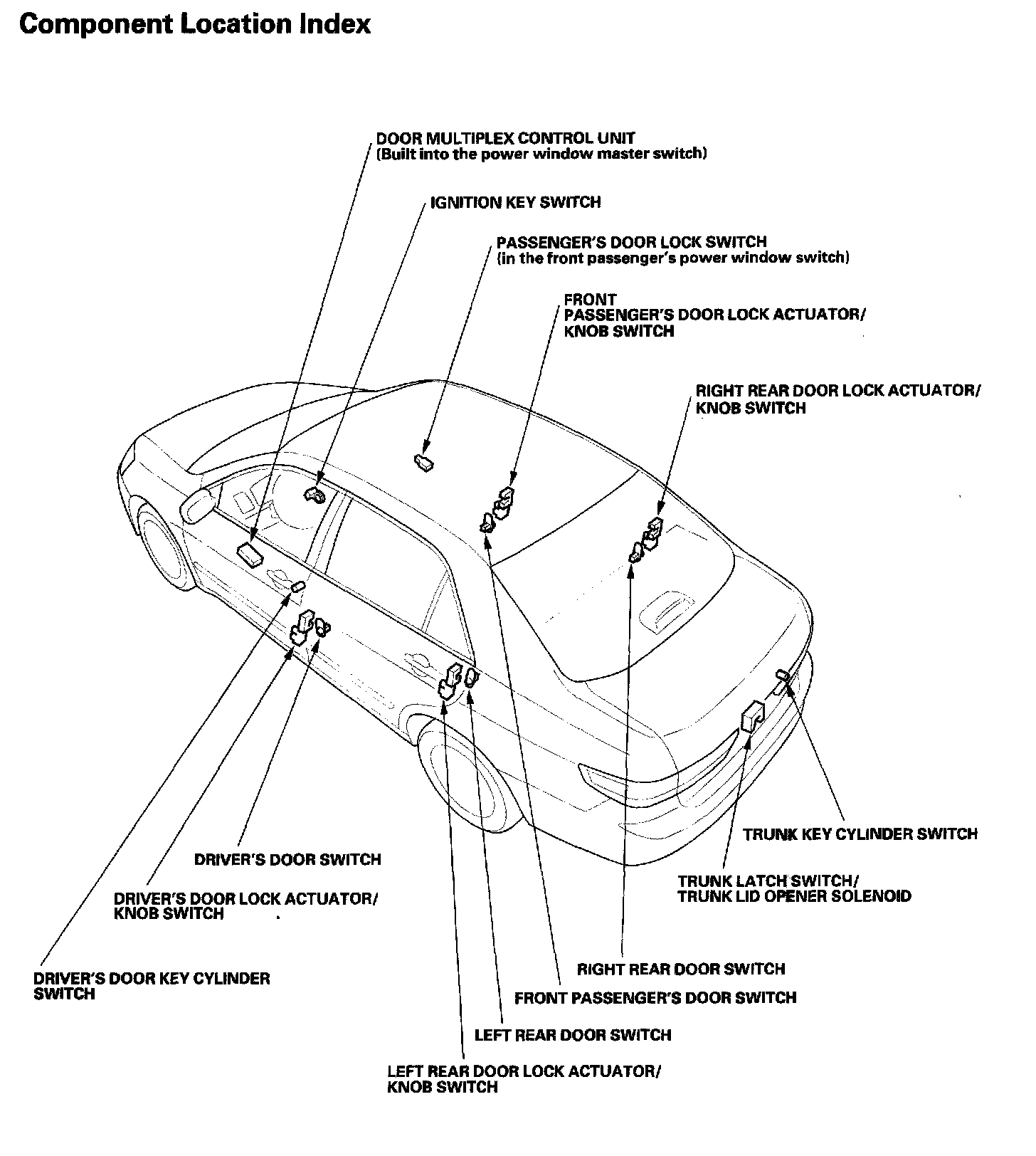

Keyless/Power Door Locks/Security System - Component Location Index:
