Home >> Honda >> 2006 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Tank Pressure Sensor >> Locations

Fuel Tank Pressure Sensor: Locations

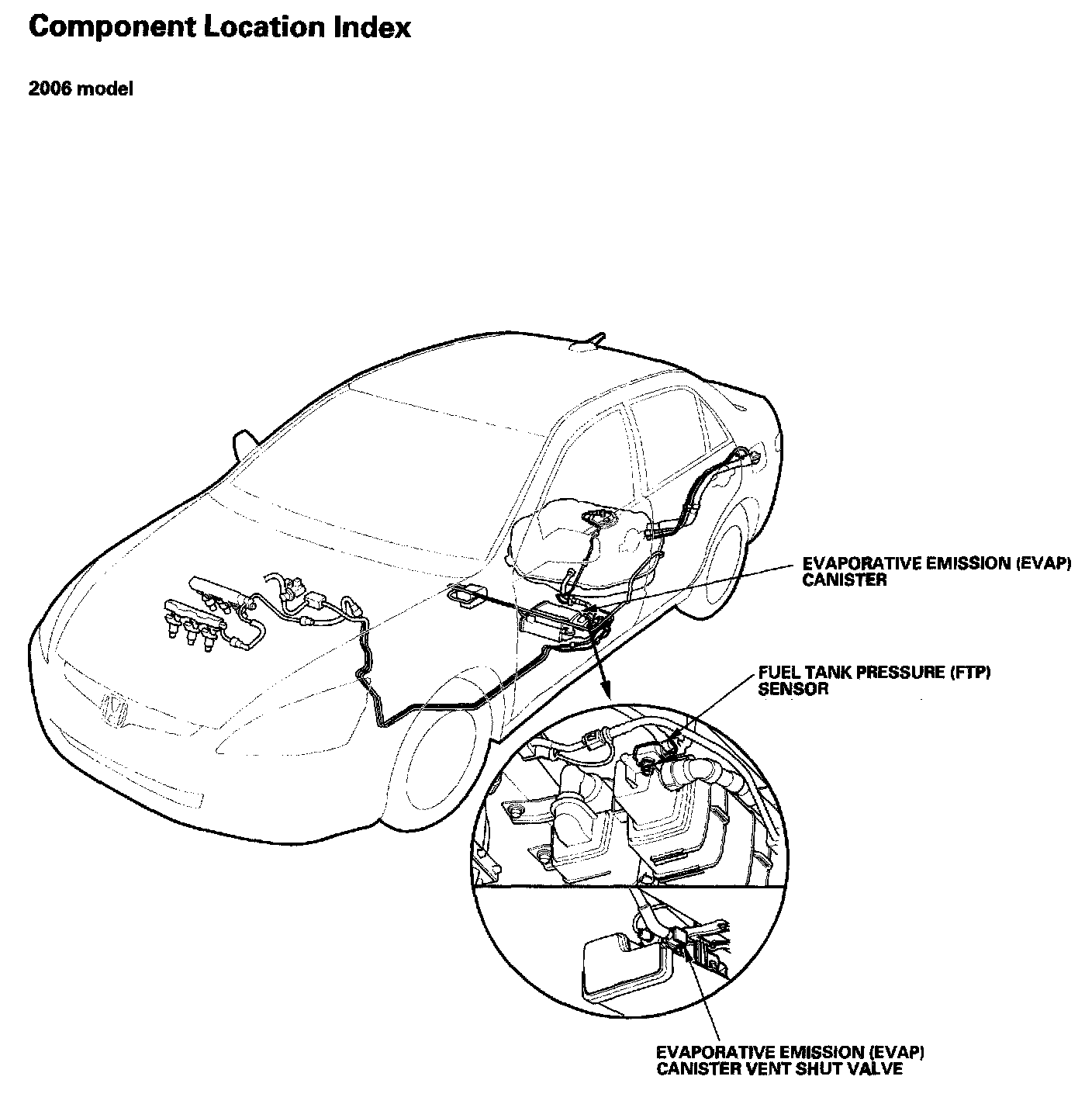

EVAP System - Component Location Index:

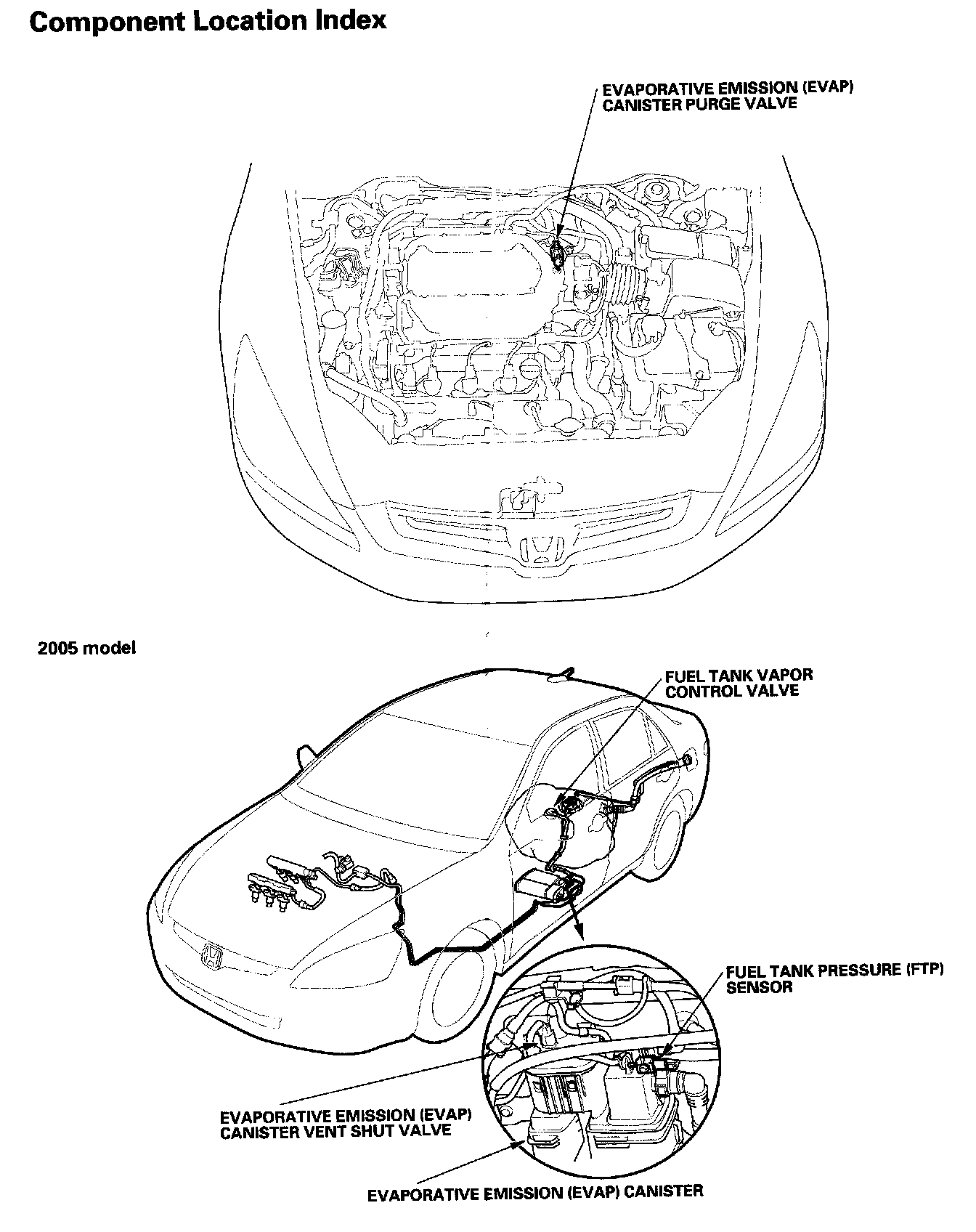

EVAP System - Component Location Index:

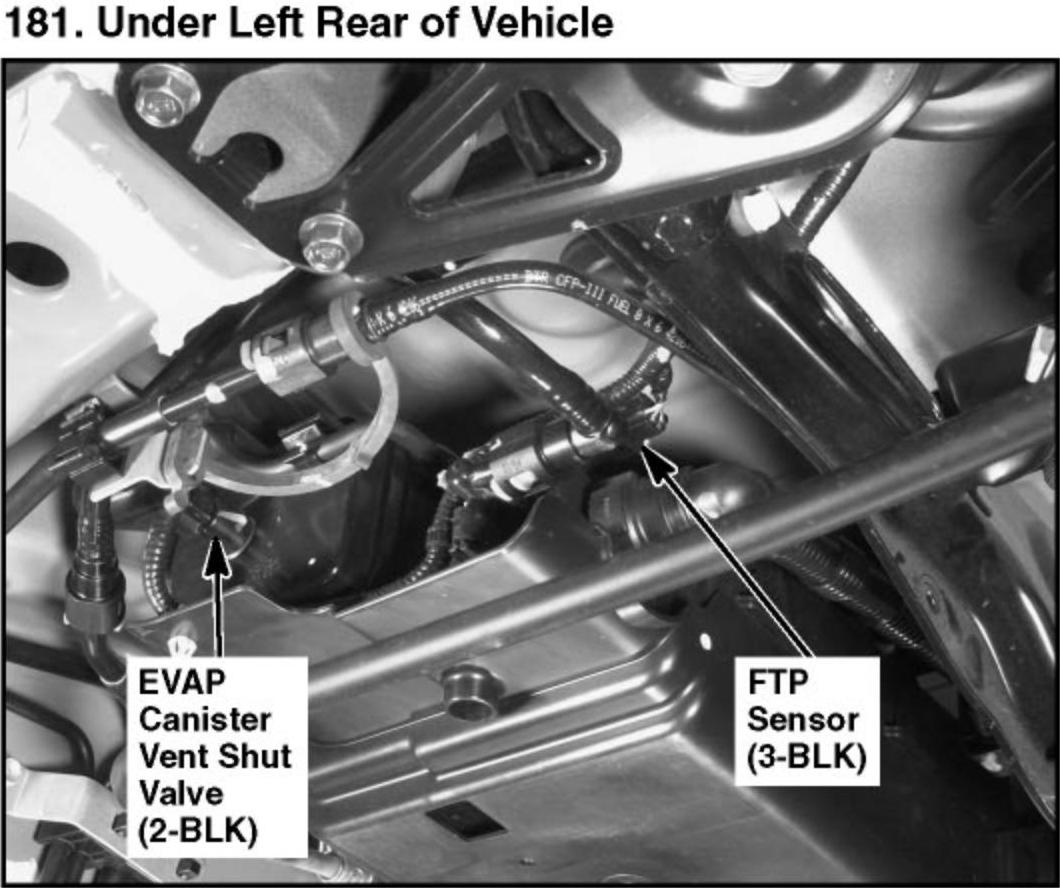

181. Under Left Rear of Vehicle:
