Drive Motor Current Sensor: Diagrams

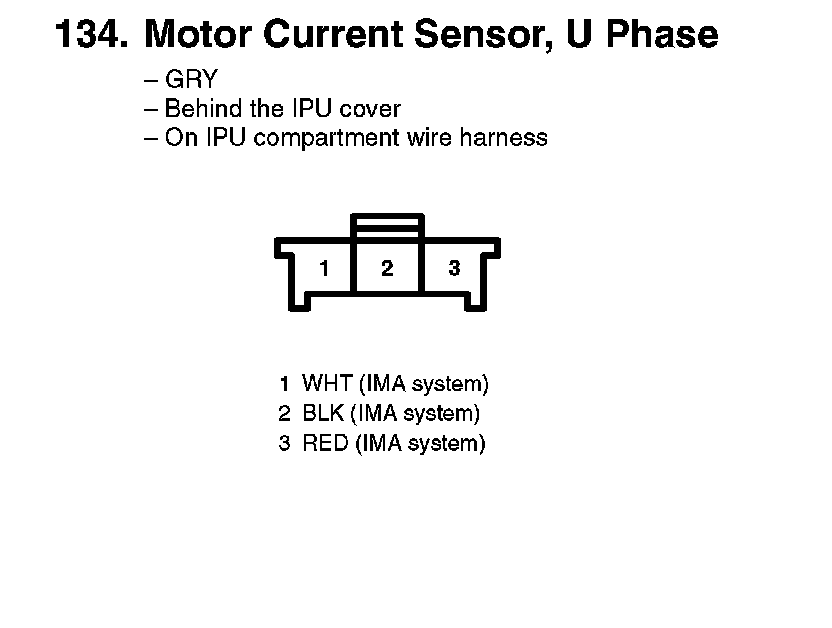

134. Motor Current Sensor, U Phase:

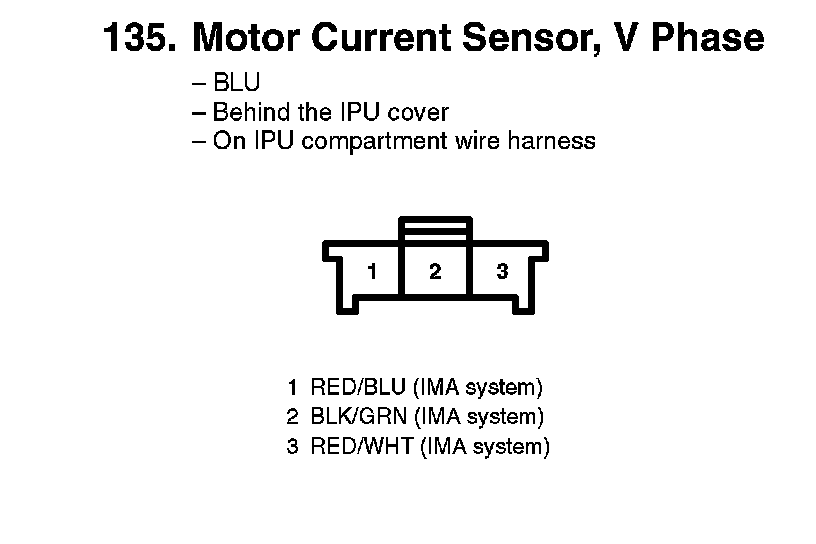

135. Motor Current Sensor, V Phase:

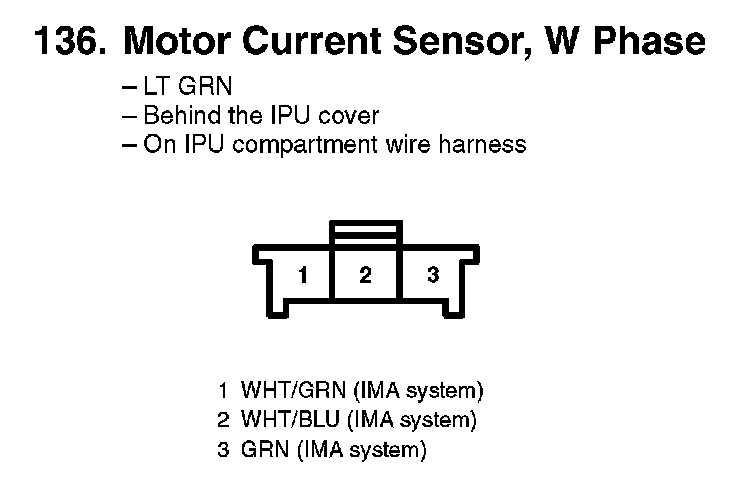

136. Motor Current Sensor, W Phase:
