Home >> Honda >> 2006 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication

Engine Lubrication

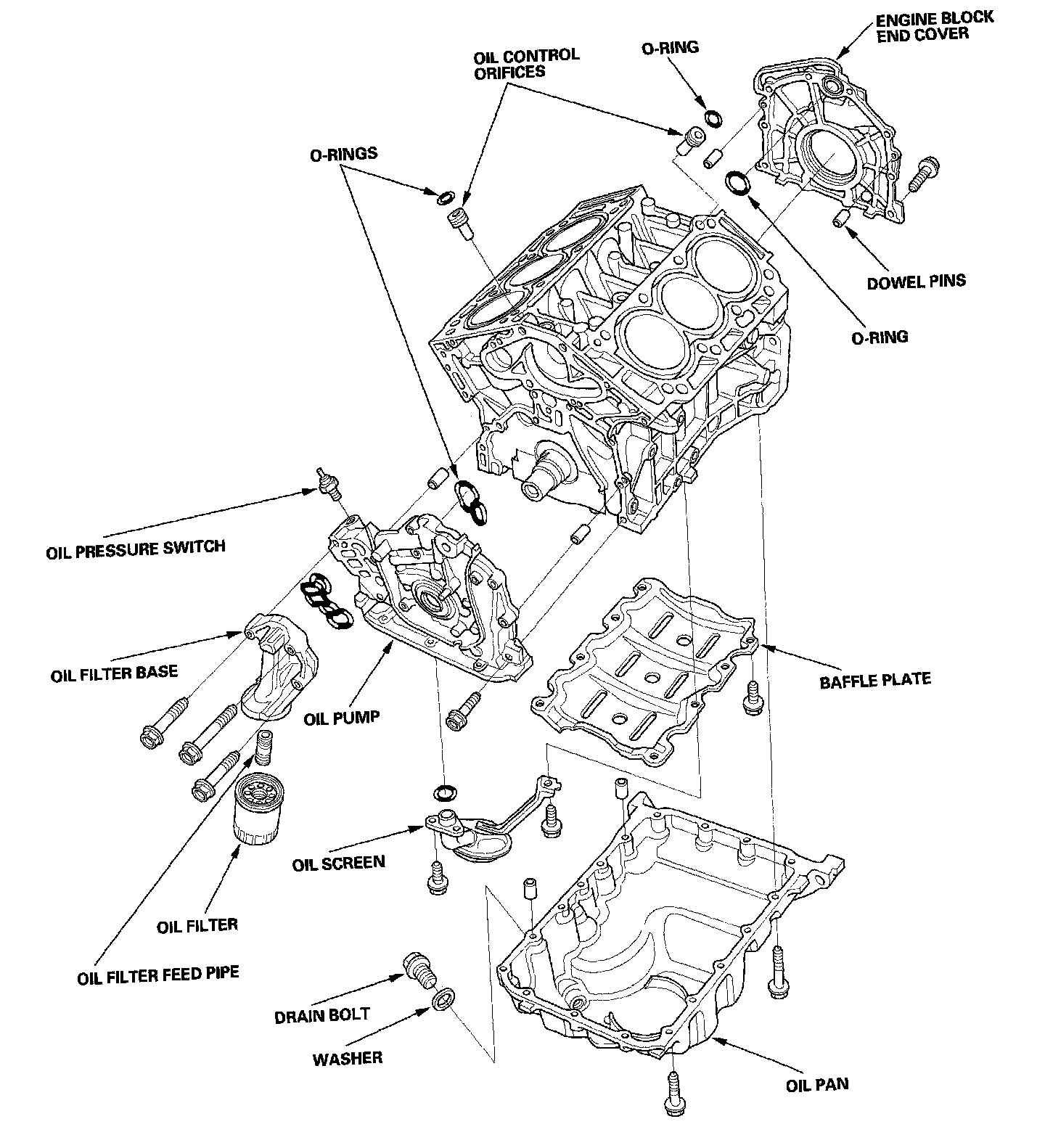

Engine Lubrication Component Location Index:

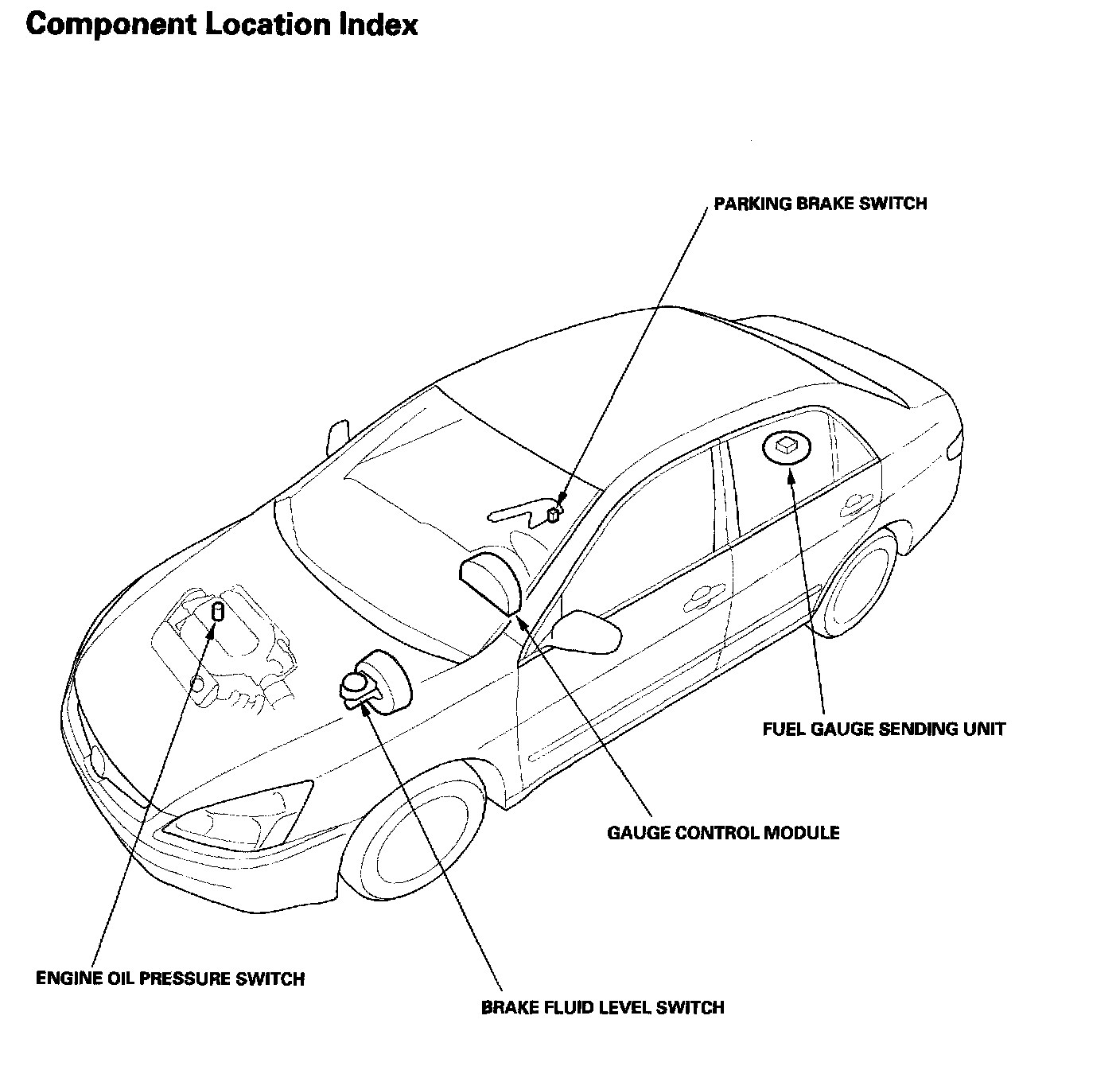

Gauges - Component Location Index:

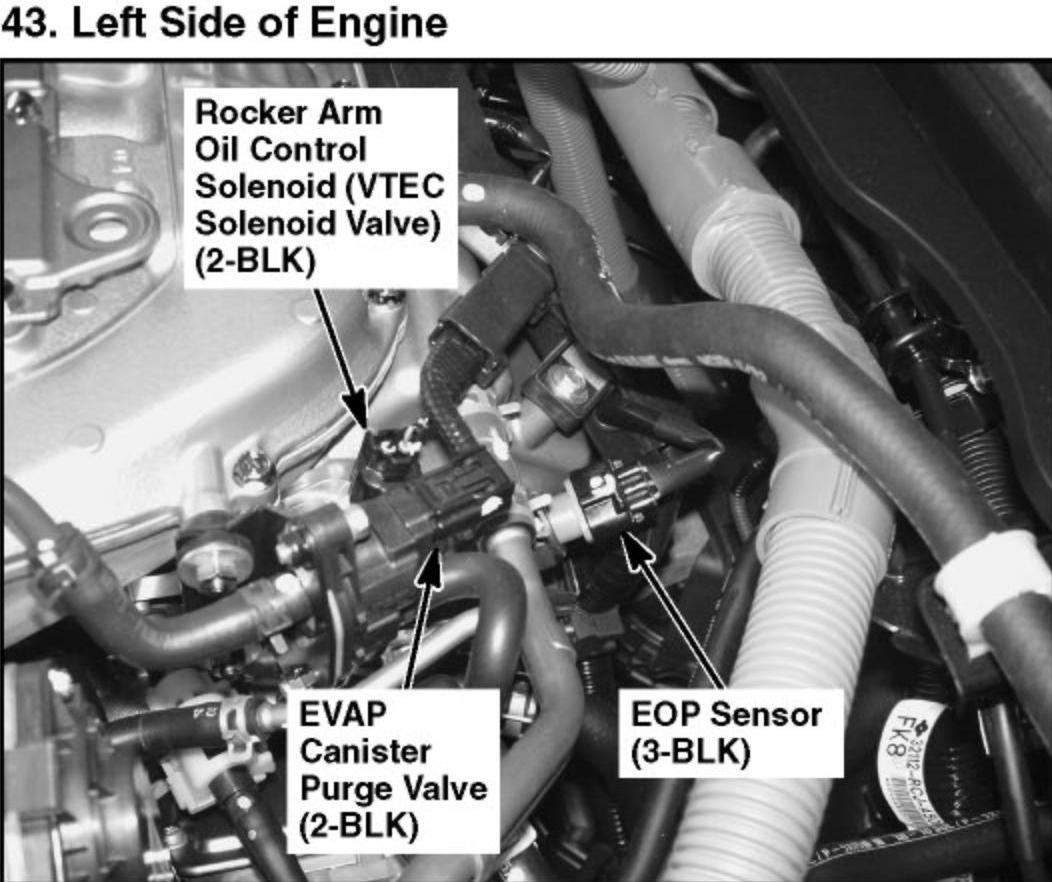

43. Left Side of Engine:

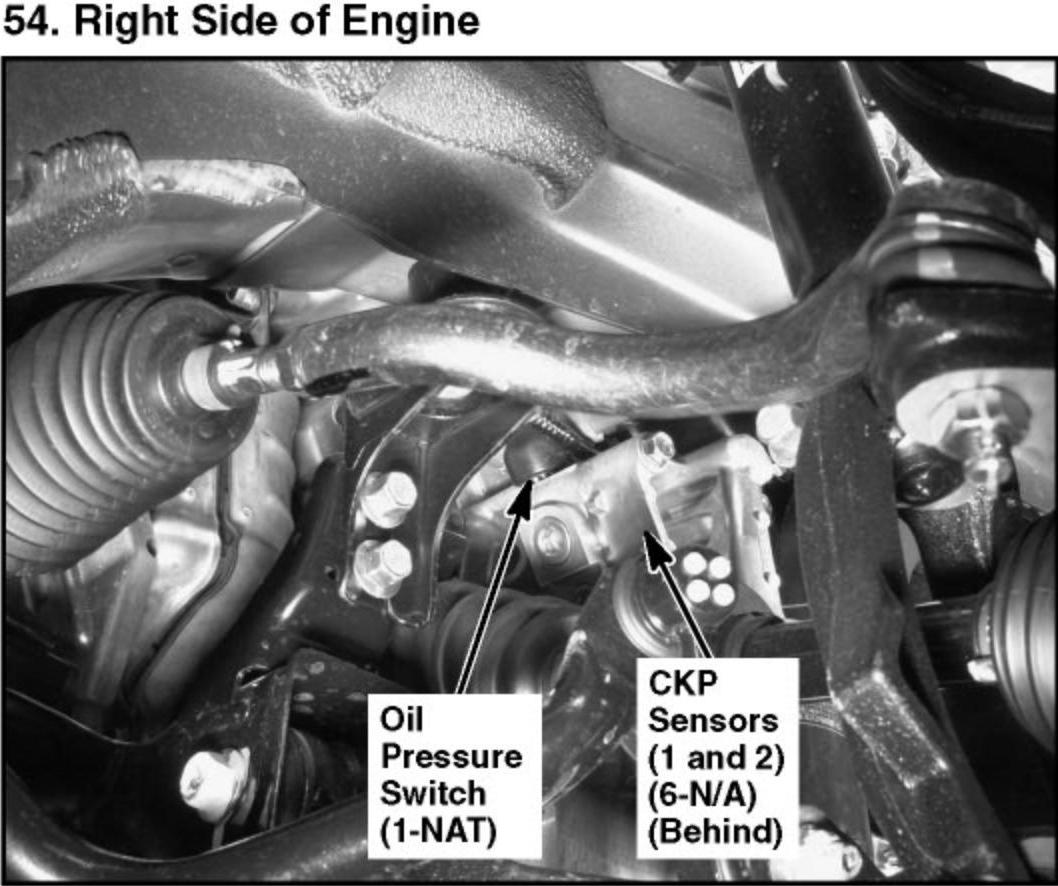

54. Right Side of Engine:
