Under-Dash Fuse/Relay Box

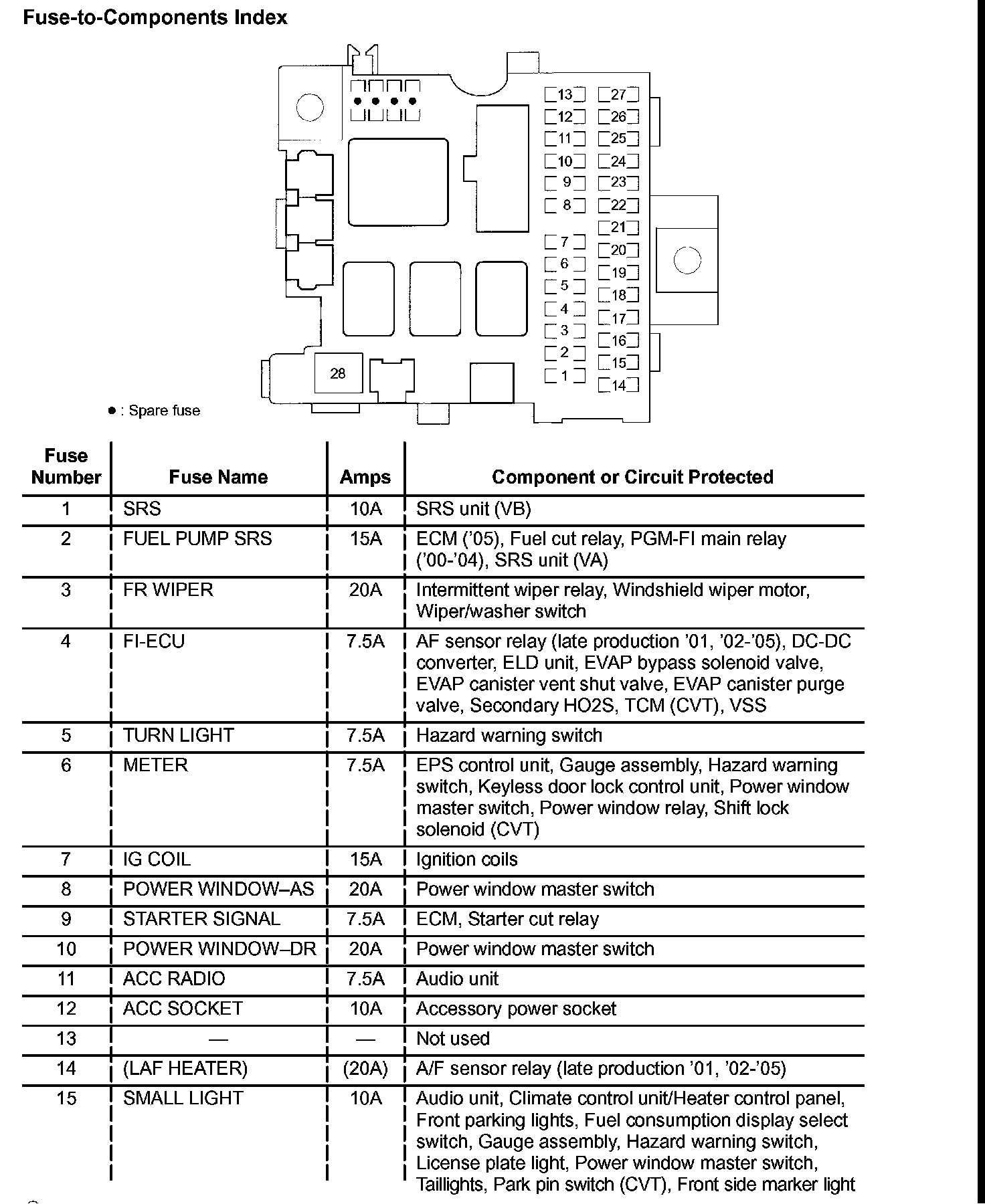

Under-dash Fuse/Relay Box Part 1:

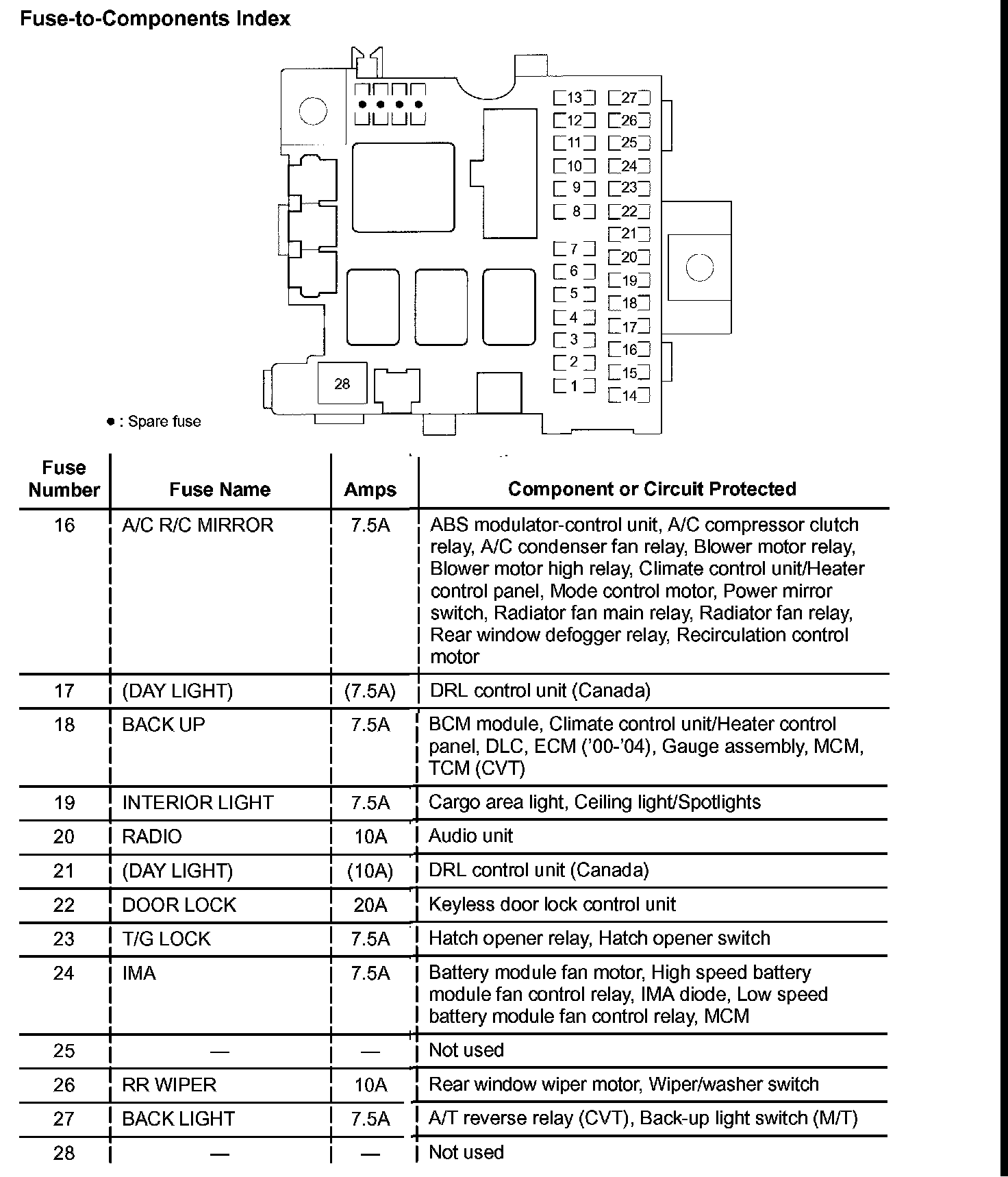

Under-dash Fuse/Relay Box Part 2:



Power Windows - Component Location Index:



SRS - Component Location Index:
