Main Bearing Cap

Main Bearing Cap

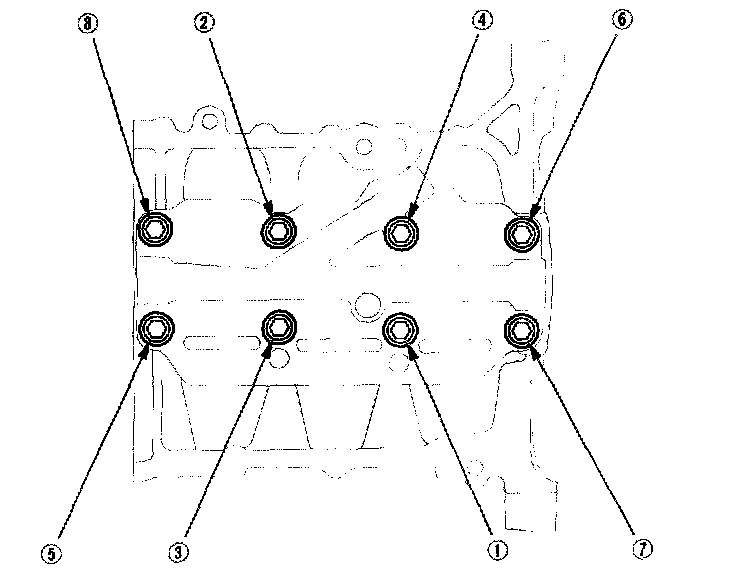

Tighten the bearing cap bolts in sequence to 25 Nm (2.5 kgf-m, 18 ft. lbs.). Verify that all the bolts are torqued properly.
Tighten the bearing cap bolts an additional 60°.
