Electronic Throttle Actuator: Service and Repair

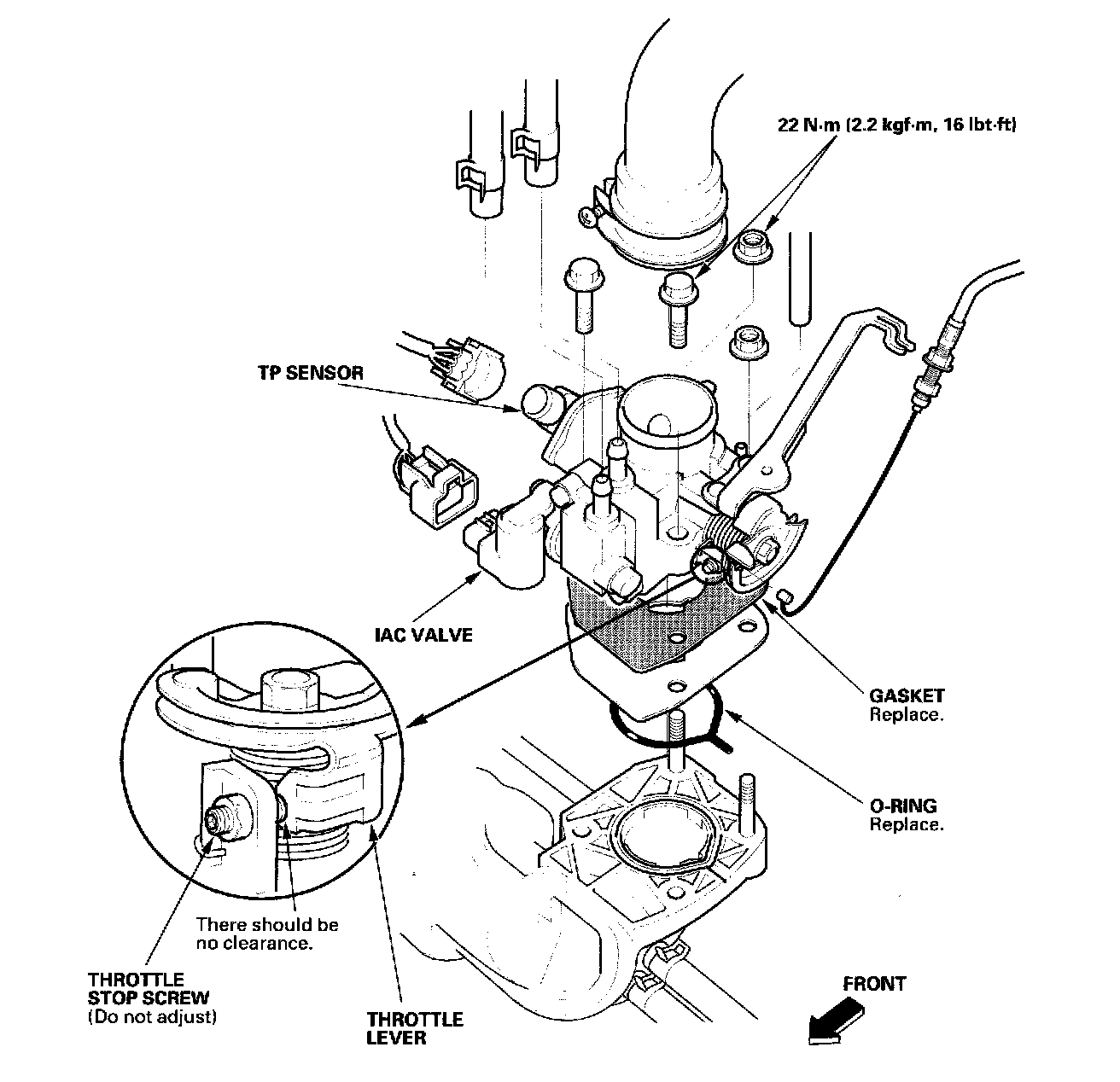

Throttle Body Removal/Installation




NOTE:
- Do not adjust the throttle stop screw
- After reassembly, adjust the throttle cable
- The TP sensor is not removable
