Home >> Honda >> 2005 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Locations

Compressor Clutch Relay: Locations

30. Left Front Side of Engine Compartment:

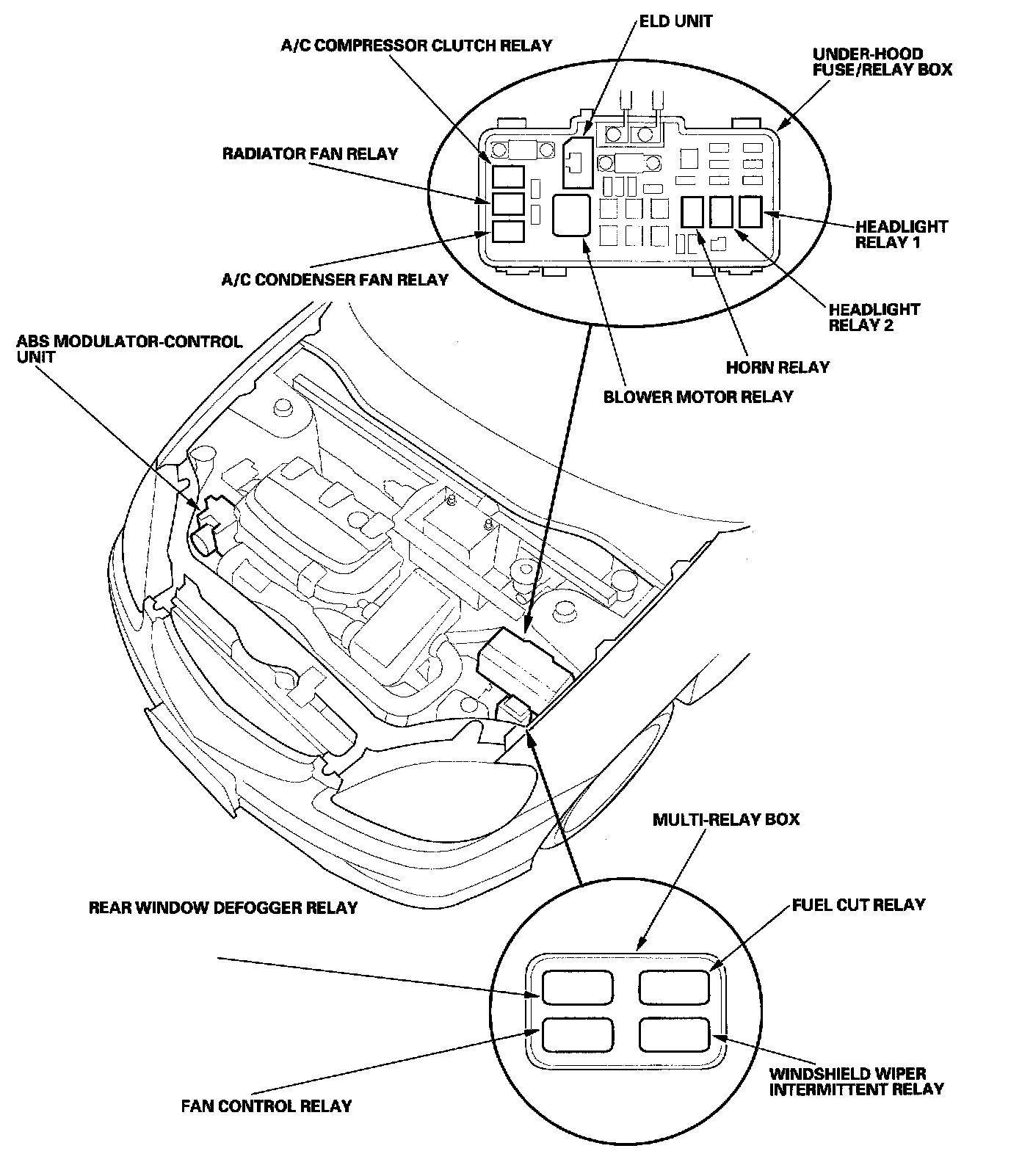

Relay And Control Unit Locations - Engine Compartment:

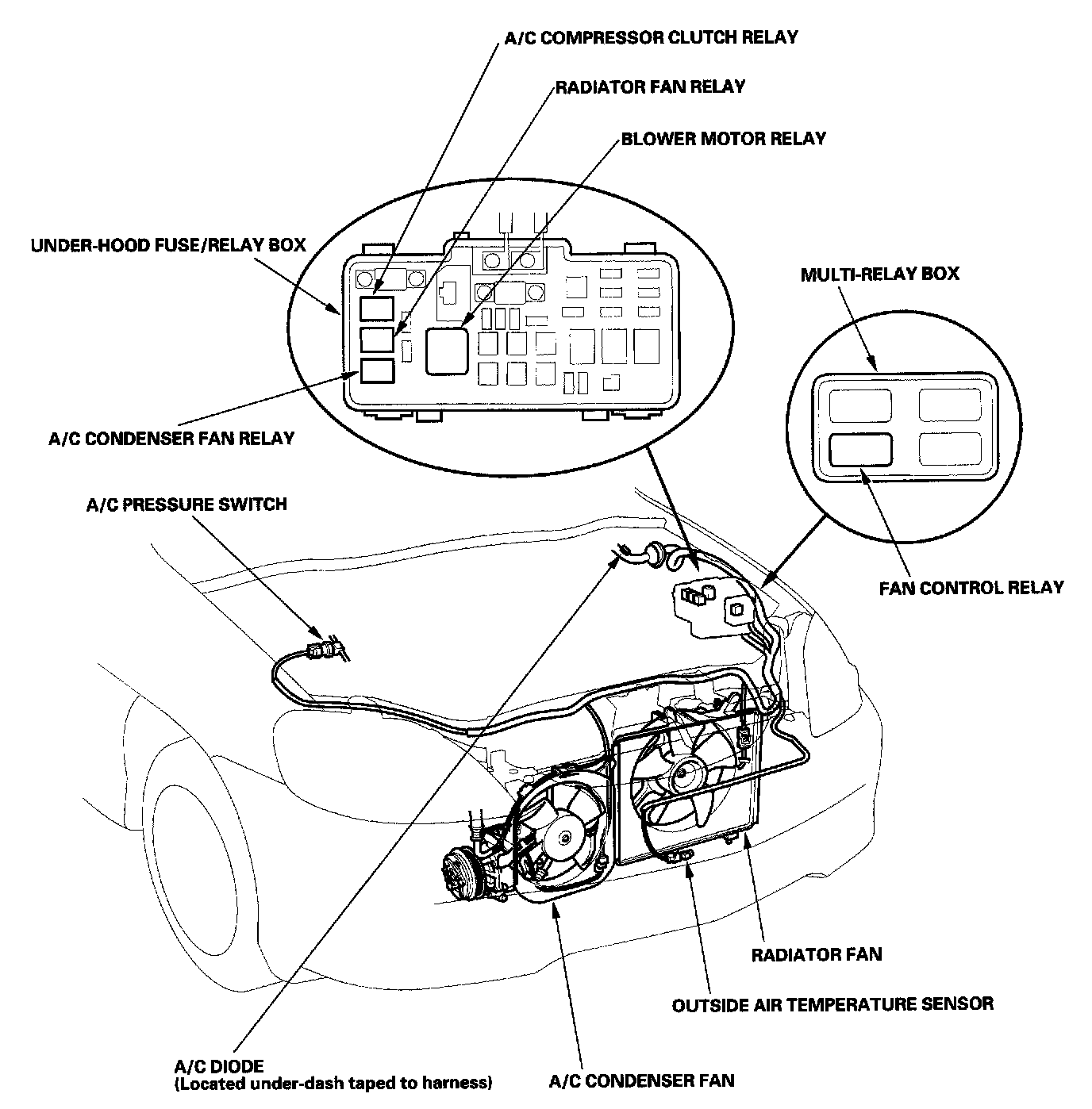

Climate Control - Component Location Index:
